large hf7fd spco 10a 6v

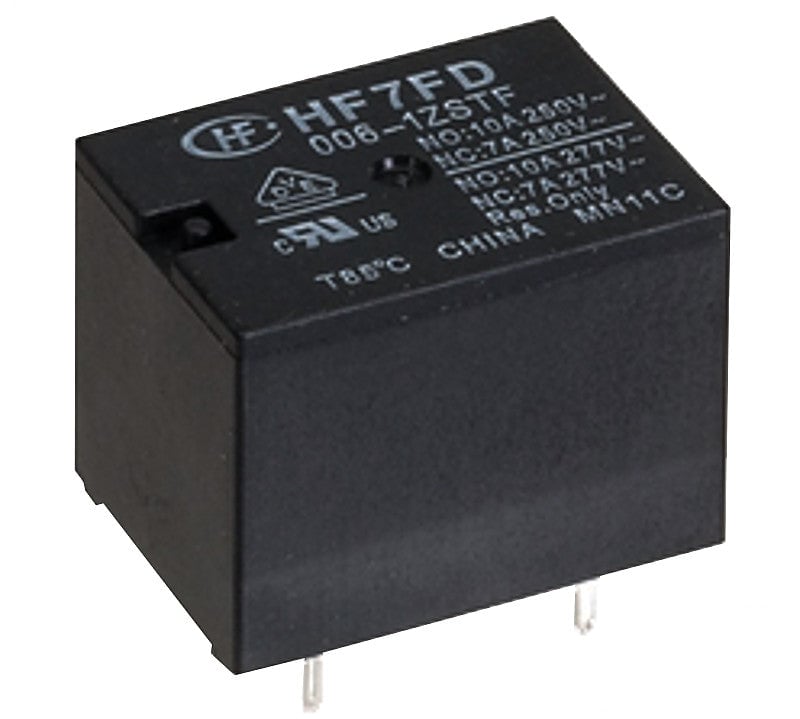

Relay HF7FD SPCO 10A, 6V

Stock code: 2977
Pricing:Ex VATInc VAT
1+£1.15
(excl. VAT)
£1.38
(excl. VAT)
10+£1.05
(excl. VAT)
£1.26
(excl. VAT)

Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

SKU: 2977 Category: Brand:

Email me when this item is back in stock.

The HF7FD SPCO 10A, 6V Relay is a high performance, low profile SPCO relay for direct PCB mounting, featuring a fully sealed and flux proofed construction.

Features:

  • High performance, low profile.
  • Operate and release times of 10ms/5ms max.

Contents:

  • 1 x 1 x HF7FD SPCO 10A, 6V Relay.

Dimensions:

  • Length: 22.5mm.
  • Width: 16.5mm.
  • Height: 16.5mm.

Resources:

Documents & downloads

Technical Information

AttributeValue
Pick up Voltage DC 4.5.
Drop-out Voltage DC 0.6.
Max allowable Voltage DC 7.8.
Coil resistance O 100.
Approx. Coil Power 360mW.
Test conditions Coil Data For 6VDC at 23 degrees C.
