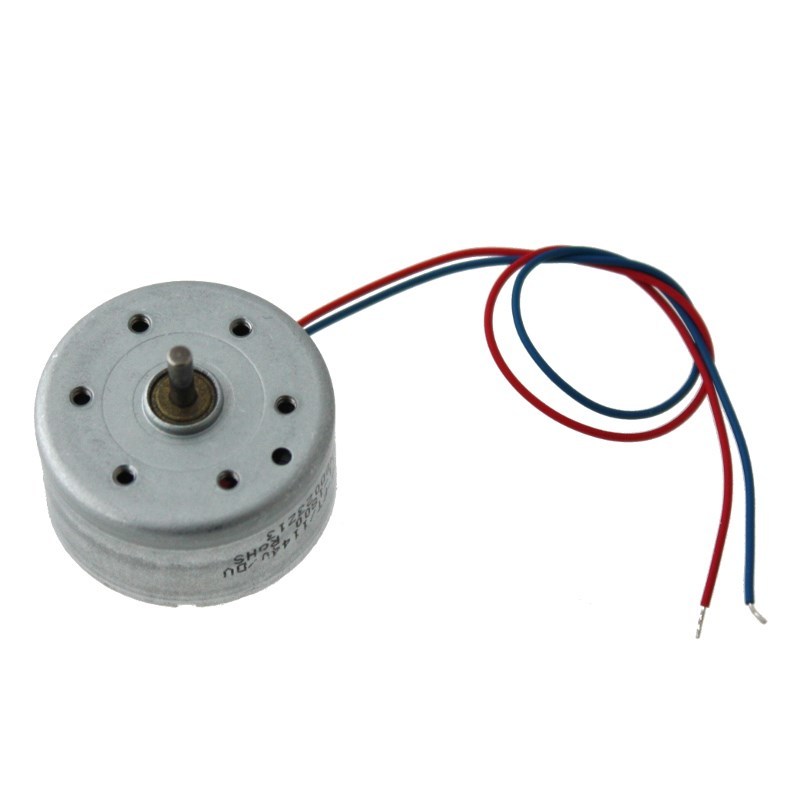

Low Inertia Solar Motor - 2230 RPM

Stock code: 2506
filler

Pricing:Ex VATInc VAT
1+ £1.55
(excl. VAT)
£1.86
(inc. VAT)
10+ £1.45 £1.74
50+ £1.35 £1.62
Stock:
In stock

Bundled options

Low Inertia Solar Motor plus motor clips and solar cell

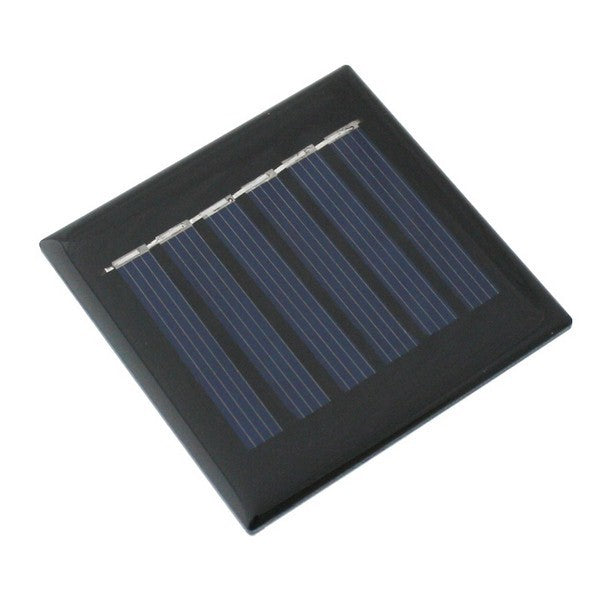

large low inertia solar motor 2230 rpm+ large plastic motor mounting clip+ large 3V 50mA solar cell

Total: £6.75ex VAT

Low Inertia Solar Motor plus propeller and solar cell

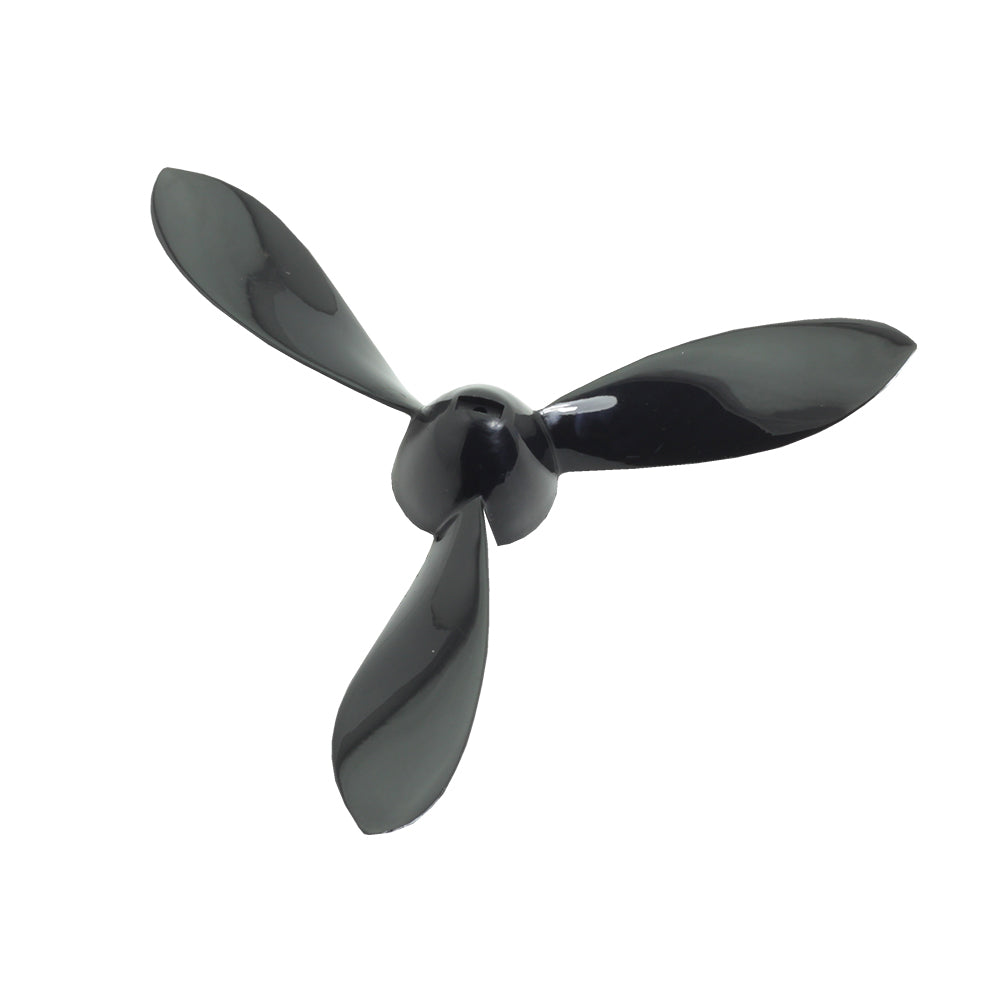

large low inertia solar motor 2230 rpm+ large three blade propeller+ large 3V 50mA solar cell

Total: £4.50ex VAT

Description

AttributeValue
Height 12.8mm.
Diameter 24.4mm.
Shaft Length 6mm.
Axle Diameter 2mm.
Weight 22g.
Rated Voltage 2V.
Operating Voltage 0.7V - 5V.
Starting Current 16mA.
Speed at Maximum Efficiency 1763RPM.
Current at Maximum Efficiency 52mA.
Stall Current 162mA.
