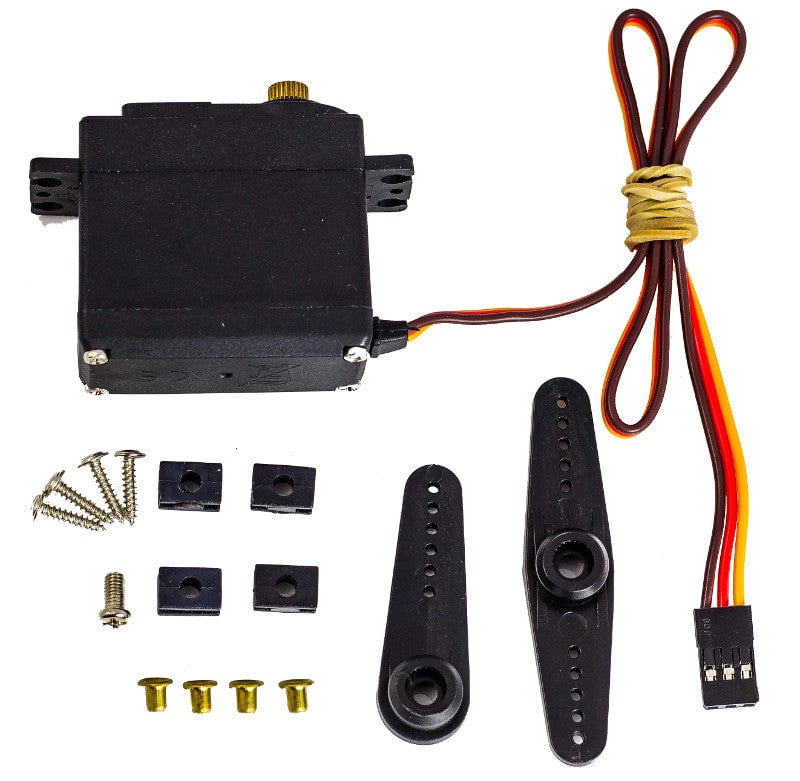

Midi 180 Degree Metal Gear Servo MG996R

Stock code: 2575

Pricing:Ex VATInc VAT
1+ £5.00
(excl. VAT)
(inc. VAT)
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.


Dimensions 40mm x 19mm x 43mm.
Weight 55g.
Gear type Metal Gears.
Connector Wire Length 300mm.
Stall Torque @ 4.8V 13 kg / cm.
Stall Torque @ 6.0V 15 kg / cm.
Operating Temperature Range 0 - 55 degrees C.
Dead band width 5 micro sec.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.


  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Is there a schematic of the servo (looking for the shaft and mounting holes dimensions)
Asked by: Thomas
Hi Thomas, Unfortunately we don't have a schematic of this part currently. However I have measured the mounting hole as 4.1mm as an internal measurement, between the centres of each hole is 9.5mm. The shaft has an internal diameter of 2.55mm and an external diameter of 5.7mm. I hope this helps.
Answered by: Michael Lockhart

Could this be used with your Micro:bit 16 servo driver board?
Asked by: Angus
Hi Angus, Yes this should be fine to use with the 16 servo driver board.
Answered by: Michael Lockhart
