Description

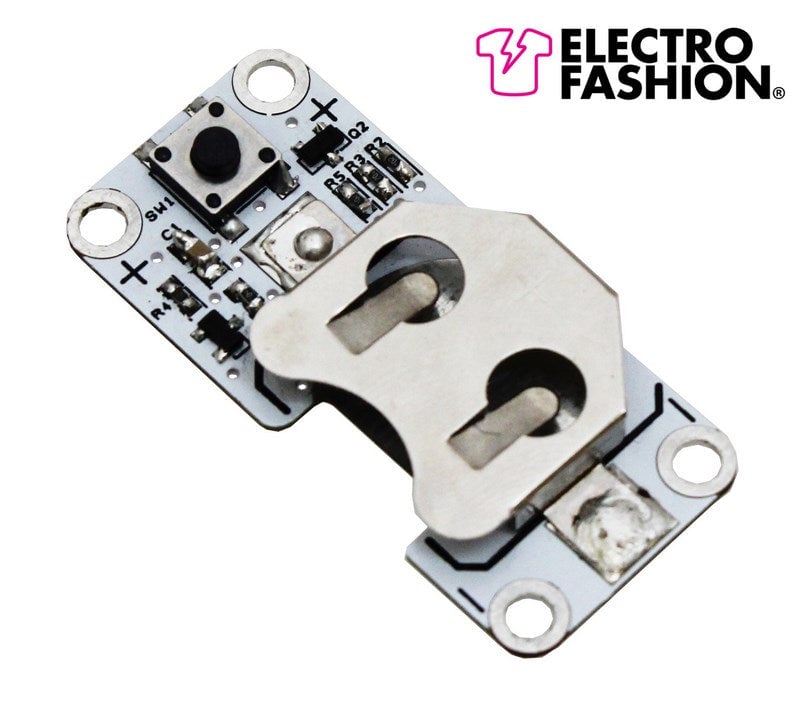

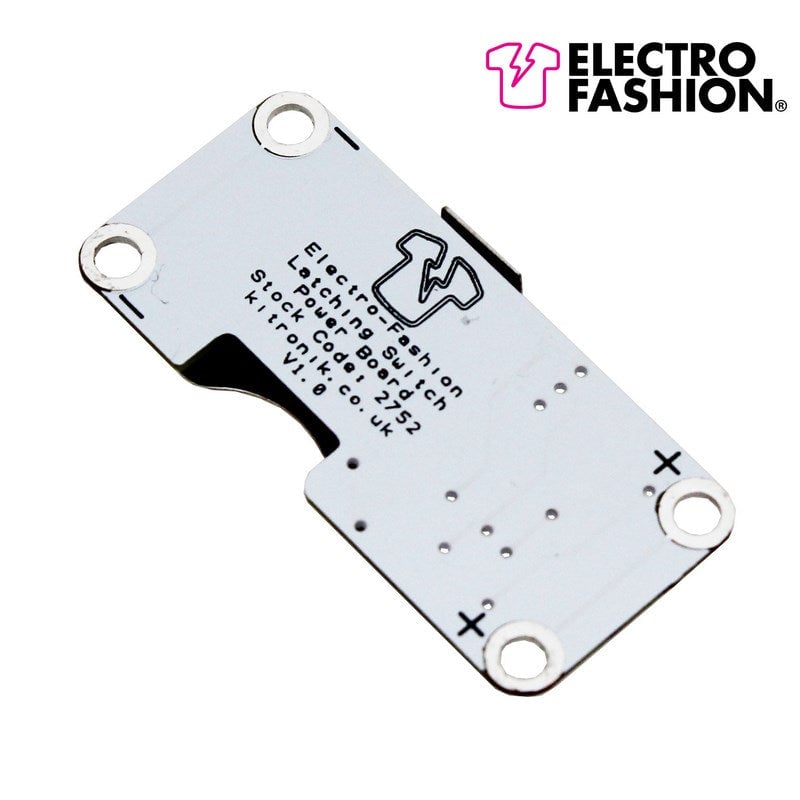

Electro-Fashion, Latching Switch Coin Cell Holder. Includes a 3V coin cell battery holder and latching switch on the same PCB. This provides power and switch capabilities to an e-textiles project on the same board.
The switch latches; you press once to turn the power on and press again to turn the power off.
Ideal as a built-in switch and power source for e-textile projects.
Features:
- Built-in 3V Coin Cell Holder.
- Latching switch for switching circuit on and off.
Contents:
- 1 x Electro-Fashion, Latching Switch Coin Cell Holder.
Dimensions:
- Length: 44mm.
- Width: 28mm.
- Height: 5mm.
Video:
Watch this video below for information on how to use this product (please note: other Kitronik products are included in this video).
Requires:
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
Q:
I bought this switch and a 3v motor (stock code 2543) hoping to switch the motor on and off. Although the switch works with an LED it doesnt seem to with the motor. The motor works well with a 3v battery but nothing via the switch.
Is there anything I may be doing wrong or are the two not compatible?
Is there anything I may be doing wrong or are the two not compatible?
A:
Hi John,
Thank you for your question so those batteries are most likely 200mA batteries with the coin cell. The motor draws 0.4 to 1.5A depending on the Voltage and so on. When you are trying to get the motor started off you need a higher current. So the motor will be drawing too much current to actually start.
An LED is only 30mA draw most of the time so vastly lower than the motor which is why that will be working and the motor is not.
I hope that helps!
Cullen
Thank you for your question so those batteries are most likely 200mA batteries with the coin cell. The motor draws 0.4 to 1.5A depending on the Voltage and so on. When you are trying to get the motor started off you need a higher current. So the motor will be drawing too much current to actually start.
An LED is only 30mA draw most of the time so vastly lower than the motor which is why that will be working and the motor is not.
I hope that helps!
Cullen
Answered by: Cullen Lewis
05-Feb-19
Q:
How many light will this switch and battery holder be able to turn on at one go. I am wanting to make an illuminated sash over my dress like the video you have on here for the T-shirt. Would it make a difference if I used flashing lights or the ordinary white lights.
Asked by: Elizabeth Rishworth
A:
The most LED’s you can power from this would be 6 LED’s spaced equally on either side of the battery holder. It wouldn’t make a difference if you used flashing LED’s or standard LED’s.
Answered by: Michael Lockhart
30-Mar-16
