Add an individually addressable LED to your E-Textiles projects with the Kitronik Sewable ZIP LED. This new addition to our Electro Fashion range incorporates a single colour addressable full colour ZIP LED, which can be controlled by a suitable processor such as the microbit.

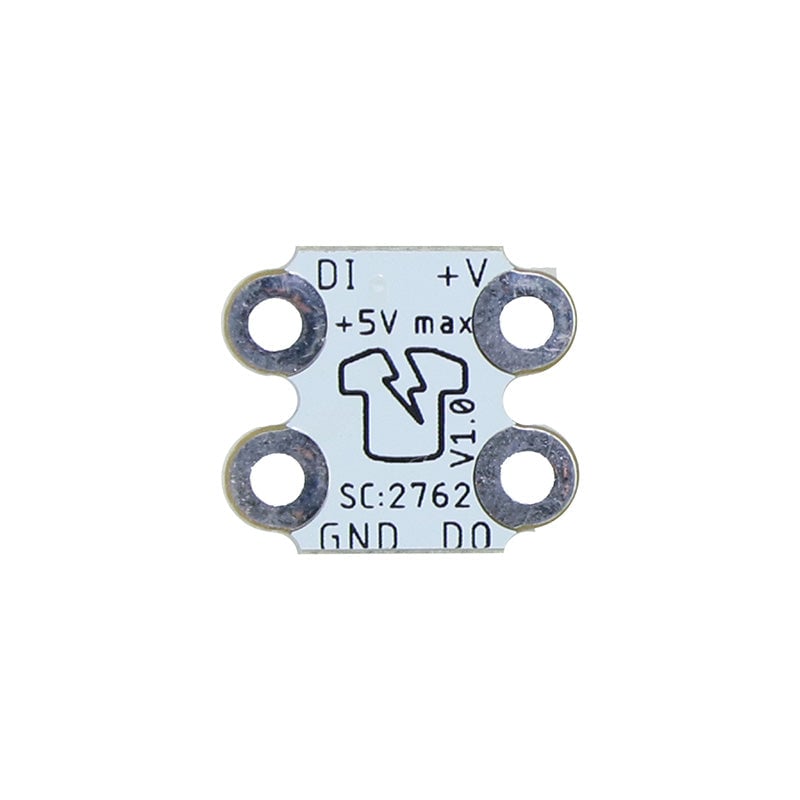

The boards four connection pads are; +V, GND, Data in, and Data out. If using a single Sewable ZIP LED the Data in pad should be connected to the processor drive signal pin. When connecting several together in a chain the Data out of one Sewable ZIP LED should be connected to the Data in of the next board.
Note: If using with a BBC micro:bit:
- We recommend that no more than four Sewable ZIP LEDs should be powered directly by the microbit. If more are required, a separate power supply should be used.
- If you use a separate power supply of more than 3.3V then a level shift for the data signal will be needed.
- A full colour addressable sewable ZIP LED.
- It can be used with conductive thread or crocodile clips.
- The can be controlled by a suitable processor such as micro:bit, Arduino, and Raspberry Pi.
- It features four connection pads; +V, GND, Data in, and Data out.
- The Kitronik ZIP LEDs are compatible with with any WS2812B driver code and can be coded with the Microsoft MakeCode Editor and MicroPython.
- These sewable ZIP LEDs are also available as a ten pack.
- 1 x Full Colour Addressable And Sewable ZIP LED Electro Fashion Board.
- Length: 13mm.
- Width: 14.8mm.
- Max Height: 2.8mm.
- PCB Thickness: 0.9mm.
This product is designed and manufactured in the UK by Kitronik.
