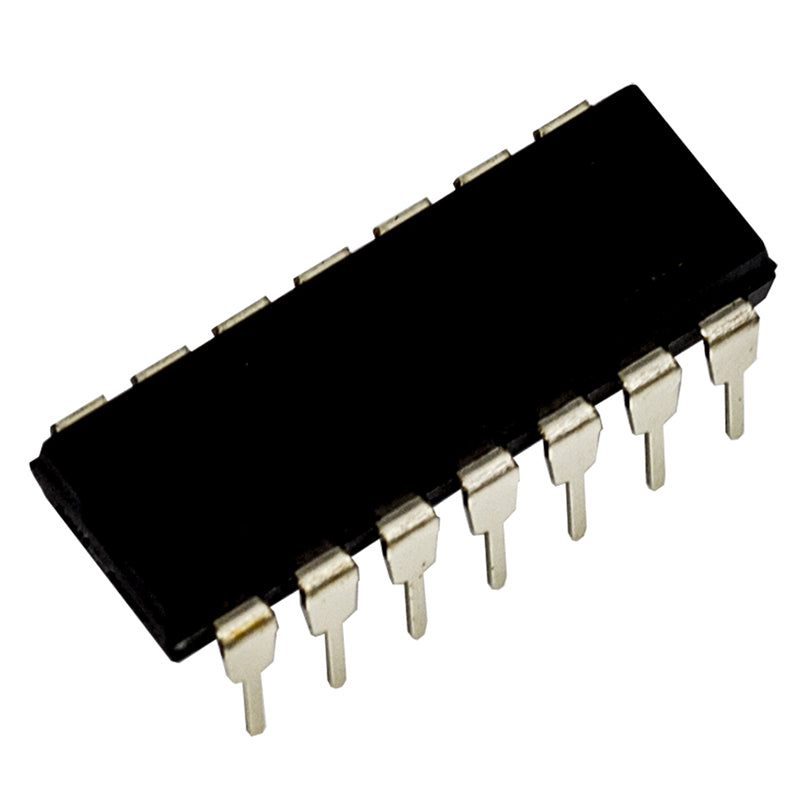

The LM324 14 pin DIL integrated circuit is a quad operational amplifier (Op-Amp). It consists of four independent, high gain, internally frequency compensated op-amps. It can be operated from a single or split power supply.
This device offers cost-effective performance and contains four separate op-amp circuits in a single package. They can typically be found in; Consumer Electronics, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement equipment. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0V or as high as 32V.
The common-mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications.
- Short Circuited Protected Outputs.
- True Differential Input Stage.
- Single Supply Operation: 3.0 V to 32 V.
- Four Amplifiers Per Package.
- Internally Compensated.
- Common Mode Range Extends to Negative Supply
- Industry Standard Pinouts.
- ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation.
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable.
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant.
Pin Out information:
|GND||GND (0V) connection for supply voltage|
|Input(s)||Input to Op-Amp|
|Output(s)||Output of Op-Amp|
- 1 x LM324 Quad Op-Amp.
