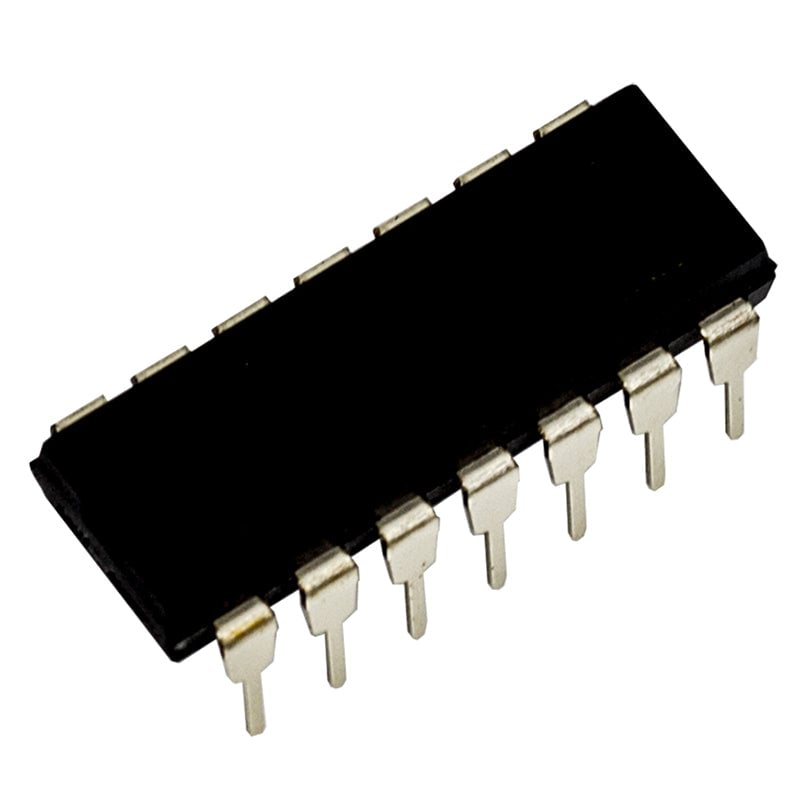

A Quad 2 Input OR Gate using CMOS technology and supplied in a 14 pin DIL package. All inputs and outputs are buffered.
Pin Out information:
OR gate functionality
The OR gate takes in two inputs. When either Input A OR Input B are high the output will be active.
|Input A||Input B||Output Z|
