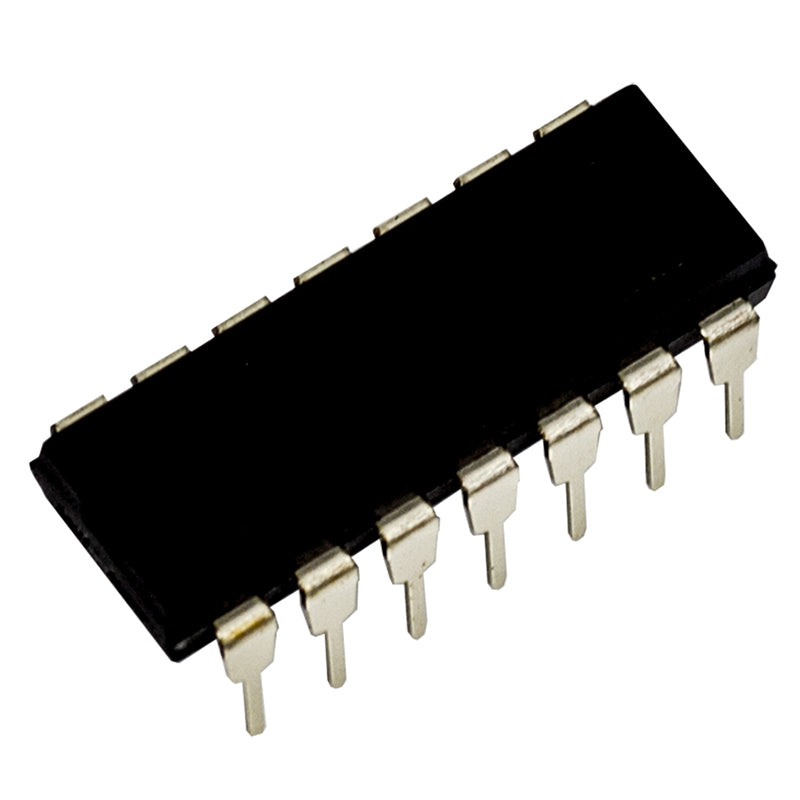

A Quad 2 Input AND Gate using CMOS technology and supplied in a 14 pin DIL package. All inputs and outputs are buffered.
Pin Out information:
AND gate functionality
The AND gate takes in two inputs. When both Input A AND Input B are high the output will be active.
|Input A||Input B||Output Z|
