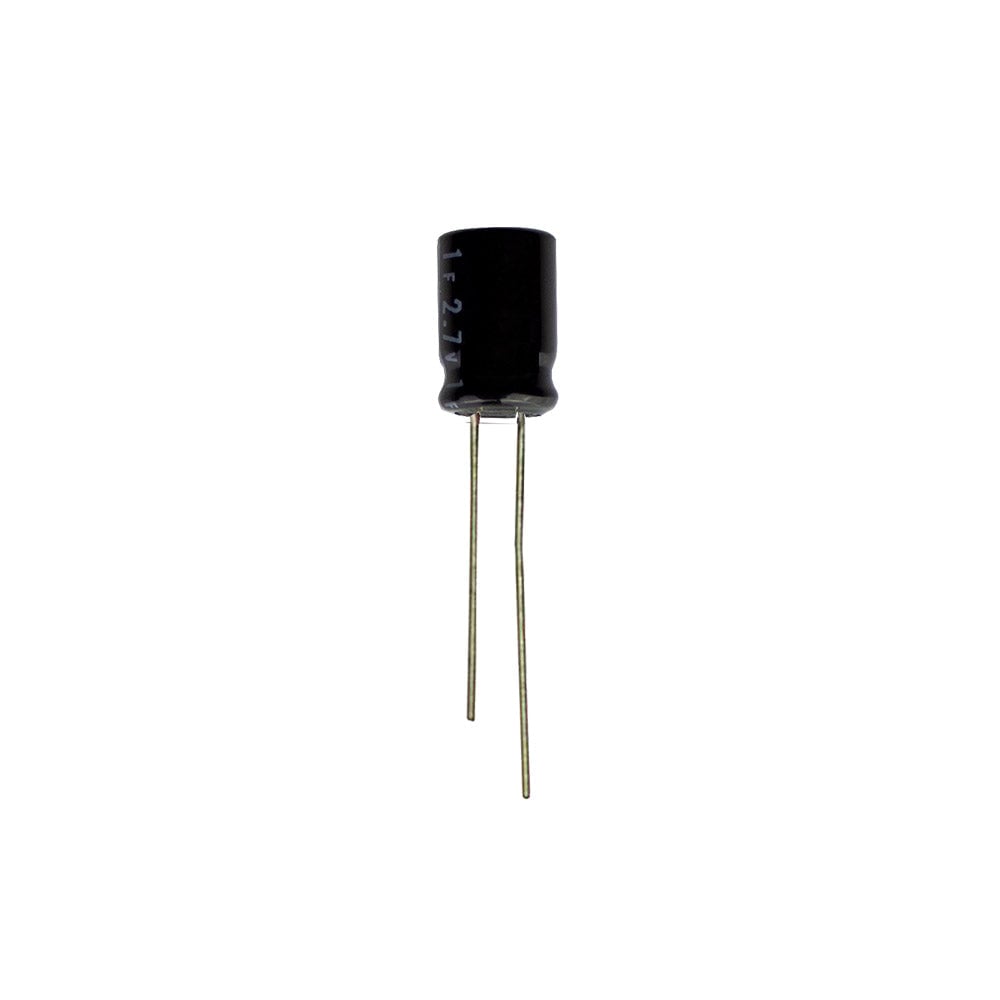

1F Super Capacitor, 2.7V

This 1F Super Capacitor is rated for 2.7V and is a through-hole component with a 2.5mm pin pitch. It is an Electric Double Layer Capacitor in a Radial package, measuring 9mm in length, with a diameter of 6.3mm.

Supercapacitors are perfect for applications where the capacity of a standard electrolytic capacitor is too small and a rechargeable battery is bigger than needed. Rechargeable torches are one such possible application.

This is the same supercapacitor used in the Kitronik Solar Torch Kit.

Features:

• The perfect choice for applications where the capacity of a standard electrolytic capacitor is too small and a rechargeable battery is bigger than needed.
• This 1F supercapacitor is rated for 2.7V.
• It is a through-hole component with a 2.5mm pin pitch.
• It measures 9mm in length and has a diameter of 6.3mm.
• Fully RoHS compliant.
• As used in the Kitronik Solar Torch Kit.

Contents:

• 1 x Super Capacitor 1F, 2.7V

Dimensions:

• Length: 9mm.
• Diameter: 6.3mm.
• Pin Pitch: 2.5mm.

Requires:

• Soldering Iron.
• Solder.
• Wire Cutters.

Resources:

• RoHS Information.
• Datasheet.
