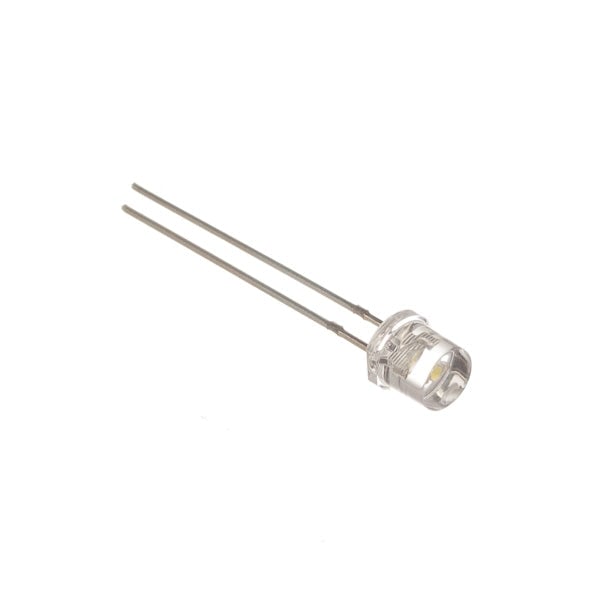

large white 5mm wide angle led

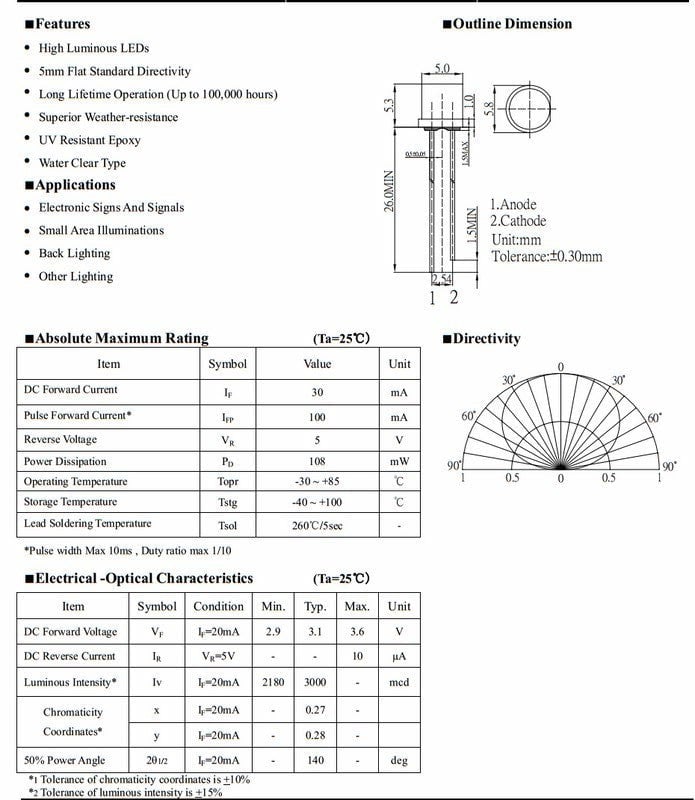

additional datasheet

White 5mm Water Clear LED - 140deg - 3000mCd

Stock code: 3546
Pricing:Ex VATInc VAT
1+$0.50
(excl. VAT)
$0.60
(excl. VAT)
10+$0.38
(excl. VAT)
$0.45
(excl. VAT)
100+$0.30
(excl. VAT)
$0.36
(excl. VAT)
500+$0.23
(excl. VAT)
$0.27
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3546 Categories: , , , , , Tags: , , , , , , , Brand:

This is a white, wide angle, flat top LED.

Forward voltage drop: 3.1 V
Viewing angle: 140 degrees
Max forward current: 30 mA
Luminous intensity: 3000 mCd (@20mA)
Lens types: Water clear


Datasheet: Click Here

Technical Information

AttributeValue
Forward voltage drop 3.1V.
Viewing angle 140 degrees.
Typical forward current 20 mA.
Max forward current 30 mA.
Luminous intensity 3000 mCd (@20mA).
Lens types Water Clear.
V
mA
V
Ohms
Ohms
Enter the operating voltage, click calculate resistor, and the resistor value to work with the LED described on this page will be shown.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “White 5mm Water Clear LED – 140deg – 3000mCd”

Your email address will not be published. Required fields are marked *

Questions and answers

    Hi. What type of micro mini solar panel would I need to run one of these LEDs?
  1. 0 votes
    Q Hi. What type of micro mini solar panel would I need to run one of these LEDs?
    Asked by Anonymous on September 3, 2019 12:00 am
    Answered by the admin Hi Emma,

    Thank you for your question the smallest you could get away with is the one on the link below. Bear in mind though this would only work in full strong sunlight.

    https://www.kitronik.co.uk/3603-solar-cell-as-used-in-garden-light.html
    2. If I was to run these on a 5V USB supply, what resistor would you recommend?
  2. 0 votes
    Q If I was to run these on a 5V USB supply, what resistor would you recommend?
    Asked by Anonymous on November 11, 2015 12:00 am
    Answered by the admin Depending on how many you LED’s you wanted to run would depend on the resistor needed, 1 LED would require a 68 ohm resistor, 2 LED’s in parallel would require a 33 ohm resistor, 3 LED’s would require a 22 ohm resistor. If you use the LED calculator on the product page, 3546-white-5mm-water-clear-led-140deg-3000mcd, and input ‘5’ as the Voltage, and the required number of LED’s into the LED section then click ‘calculate resistor’
    3. Hi We are looking for 340 of these leds. Can you do a better price?
  3. 0 votes
    Q Hi We are looking for 340 of these leds. Can you do a better price?
    Asked by Anonymous on April 19, 2012 12:00 am
    Answered by the admin We will soon be selling the LEDs in bulk packs, in the case the pack size is a bag of 500. The bulk packs will work out much cheaper than the smaller pack sizes and will be available soon.
