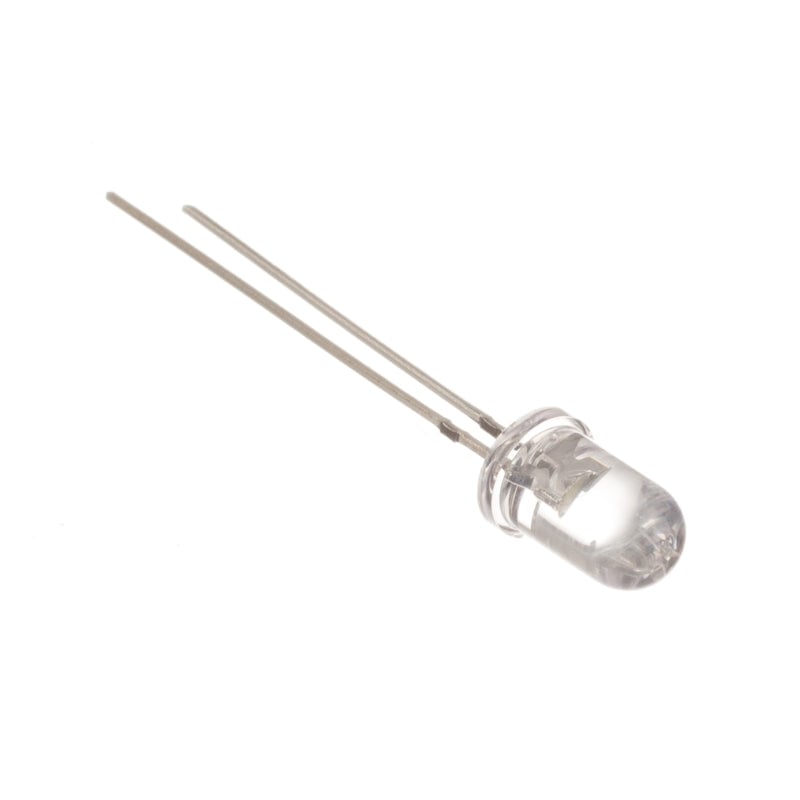

White 5mm Water Clear LED - 15deg - 17500mCd

Stock code: 3549
filler

Pricing:Ex VATInc VAT
1+ £0.40
(excl. VAT)
£0.48
(inc. VAT)
10+ £0.32 £0.38
100+ £0.28 £0.34
500+ £0.24 £0.29
Stock:
In stock

Description

No of parallel LEDs:
LED forward voltage: V
Typical LED current: mA
Battery voltage: V
Resistance (calc): Ohms
Preferred value: Ohms
Resistor colour bands:
Enter the operating voltage, click calculate resistor and the resistor value to work with the LED described on this page will be shown.
AttributeValue
Forward voltage drop 3.2V.
Viewing angle 15 degrees.
Typical forward current 20 mA.
Max forward current 30 mA.
Luminous intensity 17500 mCd (@20mA).
Lens types Water Clear.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Q:
Can I use this LED without a current limiting resistor? -ie- connected direct to a 3V coin cell (CR1220)? We want to make a simple torch WITHOUT a resistor, so if this one is not suitable (as it's 3.2V) then please advise which of your white 5mm superbright LEDs would work directly from a 3.0V cell. Thank you!
Asked by: H Swinyard
A:
This one is suitable. Well, it will work attached directly to a 3V coincell. It's usually a good idea to use a current limit resistor but it isn't vital for what you are doing.
Answered by: Aaron Sturman
10-Jun-14

Q:
What coin battery would be best to use for two of the mega bright LEDs in a circuit?
Asked by: Hannah
A:
Hi Hannah, we do a CR1220, CR2012 and CR2032. The first two numbers are the diameter so 12mm or 20mm and the last two numbers are the height of the battery in tenths of millimeters so 2mm or 1.2mm or 3.2mm. All the batteries have the same voltage 3V so any would work but the bigger batteries hold more charge. CR2032 would light them for the longest. You should wire the LEDs in parallel.
Answered by: Aaron Sturman
11-Jun-13
