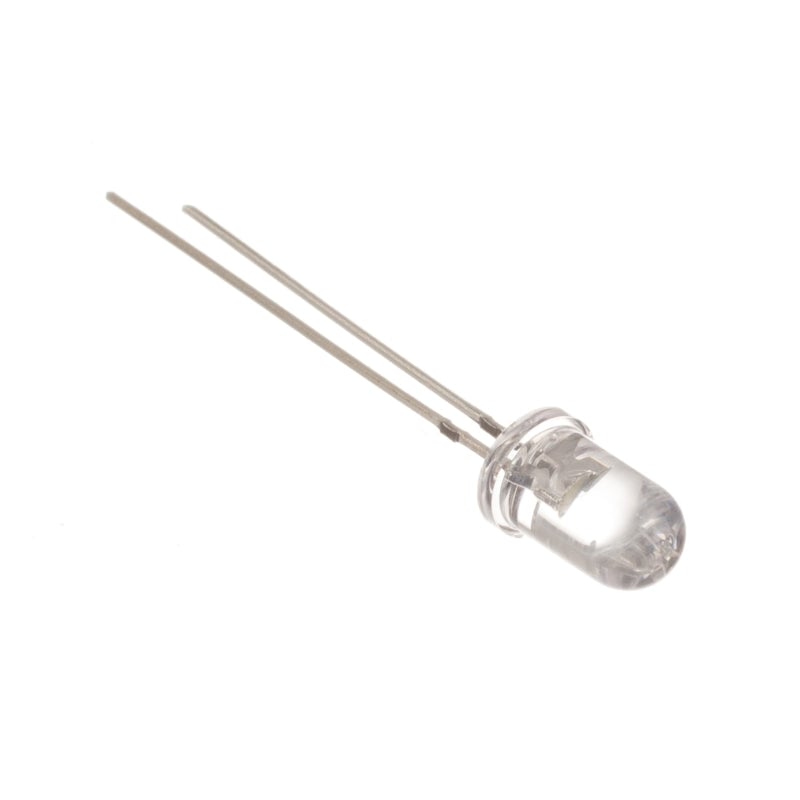

Yellow Flickering Candle 5mm Water Clear LED - 30deg - 5800mCd

Stock code: 3590
filler

Pricing:Ex VATInc VAT
1+
£0.30
£0.36
10+ £0.26 £0.31
100+ £0.22 £0.26
1000+ £0.20 £0.24
Stock:
In stock

Description

No of parallel LEDs:
LED forward voltage: V
Typical LED current: mA
Battery voltage: V
Resistance (calc): Ohms
Preferred value: Ohms
Resistor colour bands:
Enter the operating voltage, click calculate resistor and the resistor value to work with the LED described on this page will be shown.
AttributeValue
Lens Type Clear.
Viewing Angle 30 degrees.
Forward Voltage Drop 2.5 - 5V (does not require current limit resistor).
Max Forward Current 25mA.
Luminous Intensity 5800mCd (@20mA).

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Please note: Instructions for using this product (if available) can be found in the product description.
How to make a Laser Cut LED Tea Light

Add mood lighting to any room with these flickering LED tea lights made using our own Yellow Flickering Candle LEDs. LED tea lights are an ideal electronic alternative to lit candles....

How to make a Laser Cut LED Tea Light

Add mood lighting to any room with these flickering LED tea lights made using our own Yellow Flickering Candle LEDs. LED tea lights are an ideal...

Q:
I have bought several of these LED's and each one is working perfectly fine on a CR2032 coin. Is it OK to use a rechargeable coin cell eg. LR 2032 which is approximately 4v ? Or will I have to use a resistor? I do have an LR2032 charger.
Asked by: Malcolm
A:
Good afternoon,
Many thanks for the query.
looking at the technical specifications of the LED, it can take between 2.5V - 5V and would not require a current limiting resistor.
Many thanks
Answered by: Rebecca Diamond
20-Dec-19

Q:
Will the flicker led operate to a reasonable brightness if powered by a coin battery , if so which would you recommend . It's to go into a greeting card so the thinner the better ! Thank you for your help.
Asked by: Elaine
A:
Hi Elaine,

Thank you for your question, this LED will indeed run from a coin cell at a reasonable brightness. The most common coin cell we see used with these are the CR2032 Coin Cells our code 2262.

Best regards

Cullen
Answered by: Cullen Lewis
26-Sep-18

Q:
Can you give an indication of lifespan of these LEDs please, and how dependent it would be on the voltage used.
Asked by: Neil Bollen
A:
Hi Neil,

Thank you for your question. LEDs do not work quite the same as light bulbs meaning they do not really have the same sort of life spans. You should easily be able to get 5-10 years out of an LED provided you supply it the correct voltage.

For this one you can supply it with 2.5V to 5V so anywhere in that range should be fine. If you go above that range you will need to build in resistors to prevent damage to the LED, but this should not affect it's life span.

Best Regards

Cullen

Answered by: Cullen Lewis
10-Sep-18

Q:
What voltage or voltage range are these LEDs intended to operate on? (I don't mean forward voltage drop). I would like to see the manufacturer's datasheet if possible.

Thank you
Asked by: Howard
A:

The LED will turn on at around 1.8V’s however it is very dim, it becomes more visible around 2V and becomes most clear at around 2.5V’s. The maximum voltage the LED can take is 5V.

Answered by: Michael Lockhart
15-Dec-15

Q:
Hi

If two or more of these flicker LEDs have power applied at the same time (e.g. if there were several wired in parallel), would the flicker effect be synchronised across all LEDs?
I assume they would eventually drift out of phase anyway if this was the case, but for my application it would be better if they all did their own thing from power-up.

Is the flicker effect random or is there a visible cycle to the flicker pattern?

Many thanks,
Martin
Asked by: Martin Abbott
A:

The LED’s all power up at the same time but they appear to go out of sync straight away, so they all end up flicking at different times. There is a pattern to the flicking but it isn’t obvious to look at, so it does appear random.

Answered by: Michael Lockhart
05-Jan-15
