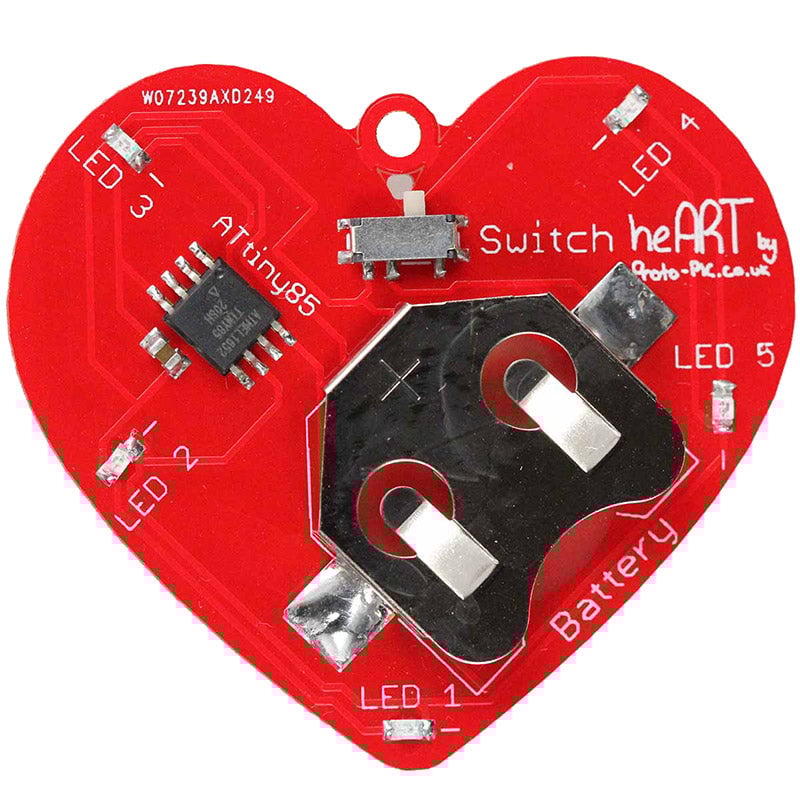

This kit is the perfect way for beginners to get started with surface mount soldering techniques. The project will require you to hand solder 5 0805 LEDs, 1 0805 capacitor, an SOIC 8 pin IC, an SMD battery clip and a surface mount switch.
Once these are all soldered in place simply adding a CR2032 battery (not included) will bring this pendent to life and start its heartbeat.
The battery should last over a week if left on continuously and much longer if switched off when not in use.
Note:
- A CR2032 battery is NOT included, you can order one here.
Features:
- It offers a great way for beginners to get started with surface mount soldering techniques.
- The battery should last over a week if left on continuously and much longer if switched off when not in use.

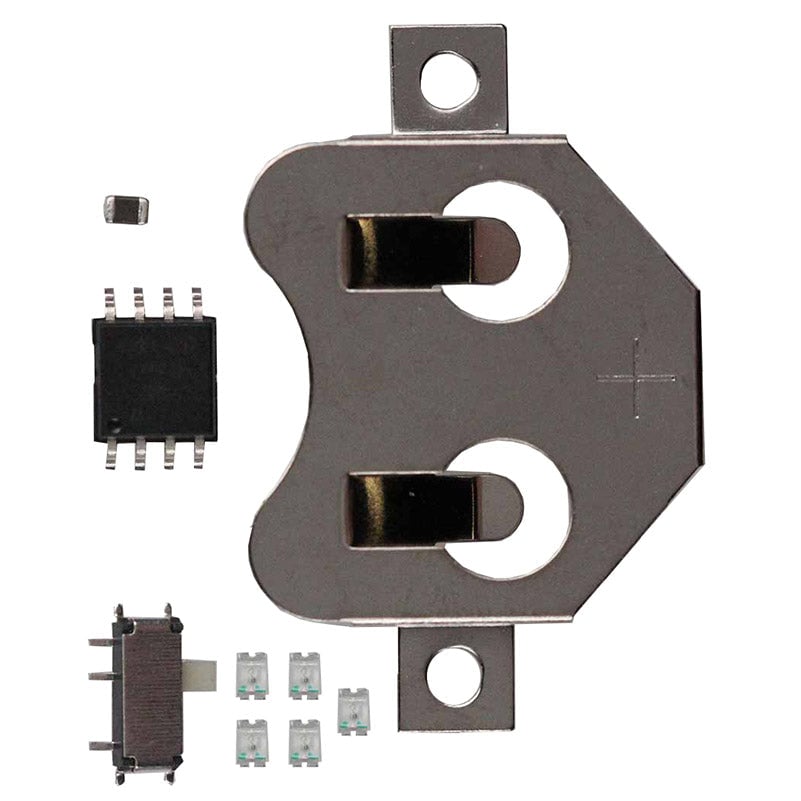

Contents:
- 5 x 0805 Red LEDs + spare.
- 1 x 0805 Capacitor + spare.
- 1 x SOIC ATtiny85.
- 1 x PCB.
- 1 x SMD switch.
- 1 x CR2032 SMD battery clip
Video:
Requires:
Proto-Pic Part Number:
- PPKIT4008
