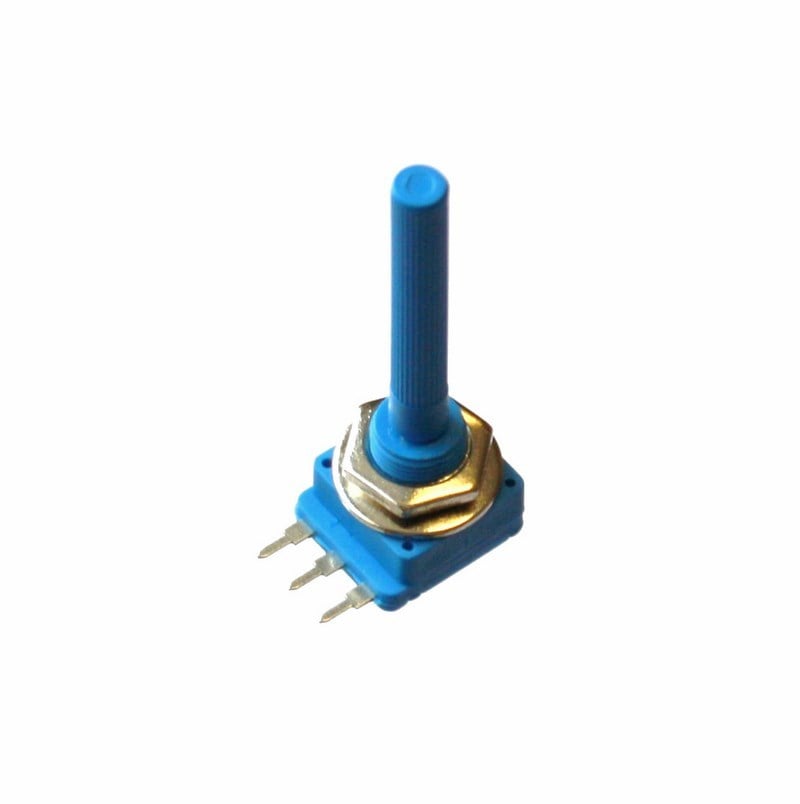

A compact carbon-track Panel Mount 1k POT rotary potentiometer housed in an insulated all-plastic body. This semi-sealed panel-mount design offers reliable performance in control panels, audio circuits, and general analogue adjustment applications. Fixing hardware is included for secure mounting.
This rotary Panel Mount 1k POT is supplied in packs of 10, with all of the fixing hardware included for secure mounting.
Features:
- 1kΩ carbon-track rotary potentiometer.
- Panel-mount design with M10 × 0.75 threaded bush.
- Insulated all-plastic body for electrical safety.
- Semi-sealed construction helps resist dust and moisture.
- Includes fixing hardware for secure installation.
- Suitable for analogue control, audio level adjustment, and general variable-resistance applications.
Technical Characteristics:
Contents:
- 1 × Panel Mount 1k POT (Pack of 10).
Dimensions:
- Body Diameter: 16mm.
- Body Depth: 8mm.
- Spindle Length: 38mm.
- Spindle Diameter: 6mm.
- Mounting Bush: M10 × 0.75.
