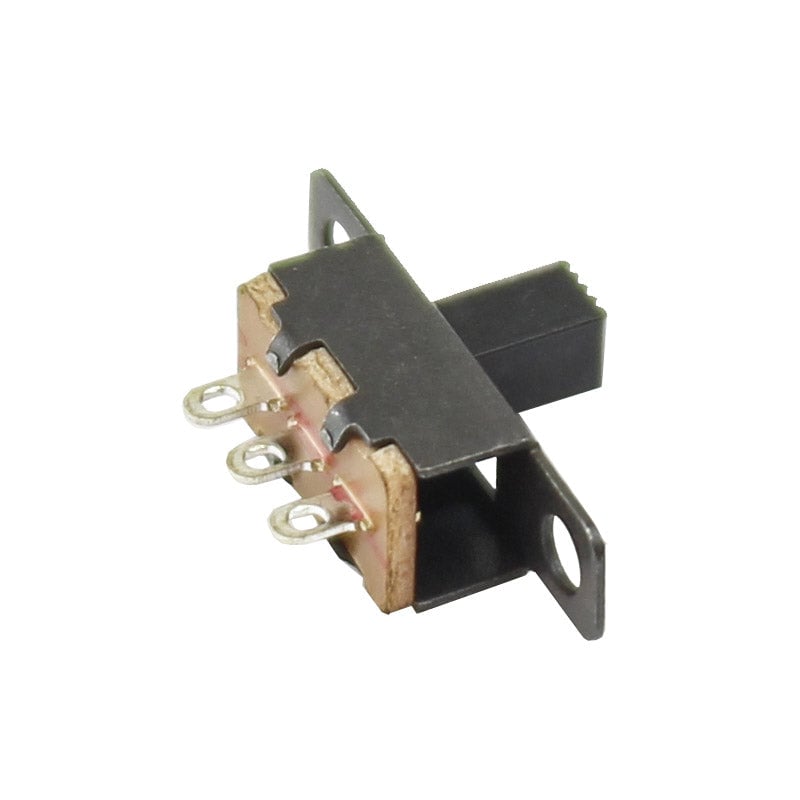

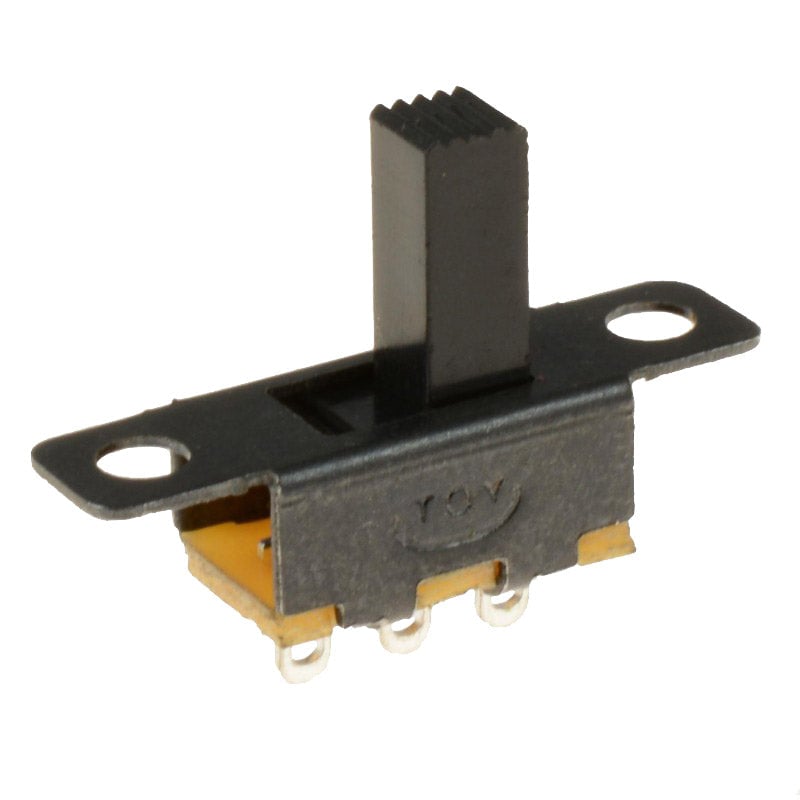

This Ultra-miniature slide switch with SPDT contacts is suitable for a wide range of applications and is supplied as a pack of 10.
It features solder tag terminals which allow for wires to be easily soldered to the switch, making it perfect for any application that requires a physically small on-on switch located away from the rest of the project/circuits/boards.
SPDT switches, such as this, have three contacts; a common pin and two other pins that via for connection providing and on-on operation. This can be utilised to switch between power sources or to switch between two separate circuits that are connected to the same place/component.
There are two mounting screw holes spaced 15mm apart and the actuator portion of the switch is 7mm tall.
- Ultra-miniature slide switch with SPDT contacts.
- It features solder tag terminals which allow for wires to be easily soldered to the switch.
- The SPDT provides 3 terminal on-on type switch operation.
- You can switch between power sources.
- You can switch between different circuits attached to the same place/component.
- It features two mounting screw holes with 15mm spacing.
- This switch is supplied as a pack of 10.
- RoHS Compliant.
- 1 x Pack of 10 Ultra Miniature SPDT Slide Switches.
- Length: 20mm.
- Width: 5mm.
- Height: 15mm.
- Actuator Height: 7mm.
- Distance between Mounting Holes: 15mm.
