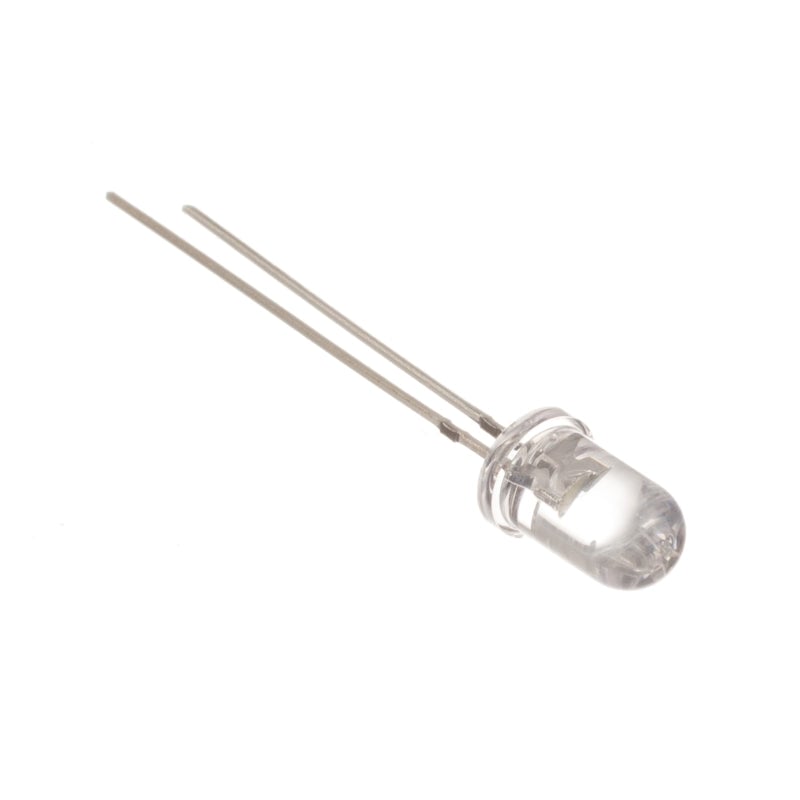

Red 5mm Water Clear LED - 30deg - 1000mCd, pack of 50

Stock code: 3507
filler

Pricing:Ex VATInc VAT
1+ £4.50
(excl. VAT)
£5.40
(inc. VAT)
Stock:
In stock

Description

No of parallel LEDs:
LED forward voltage: V
Typical LED current: mA
Battery voltage: V
Resistance (calc): Ohms
Preferred value: Ohms
Resistor colour bands:
Enter the operating voltage, click calculate resistor and the resistor value to work with the LED described on this page will be shown.
AttributeValue
Forward voltage drop 1.85V.
Viewing angle 30 degrees.
Max forward current 30 mA.
Luminous intensity 1000 mCd (@20mA).
Lens types Water clear.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Q:
I am thinking of buying some 5mm led bulbs to use in a science project with children in my class. They will need to make a circuit to light up the bulb. Another teacher said she did thus using a cell battery - a cr2032 I think. Will this be the right battery to use with these bulbs and would they work also with the colour changing bulbs? Thank you, Abi
Asked by: Abi
A:
The ultra-bright red LED has a forward voltage drop of about 1.9V so in theory with a 3V CR2032 cell you would want to use a current limit resistor something like a 68 ohm or a 100 ohm. However the coin cell can only deliver a limited amount of current so in reality you are often able to get away without using a current limit resistor. The colour changing LED is rated between 2.7V and 5V so would work fine off a coin cell battery, though it won't be at full brightness again because the coin cell won't deliver enough current to run at full brightness, but it will still work fine.
Answered by: Geoff Hampso
07-Nov-11
