Kitronik ZIP Circle - 12 ZIP LEDs

Stock code: 35135
filler

Pricing:Ex VATInc VAT
1+
£5.15
£6.18
10+ £4.25 £5.10
Stock:
In stock

Description

AttributeValue
Pitch between LEDs 6.86mm.
Wiring pads 2.54mm pitch.
Voltage Range (V) 3.5V - 5V
Current Max at Nominal Voltage (mA) 50mA per LED with Red, Green and Blue at full brightness.
LED wavelength 630nm/530nm/475nm.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found in the product description.
Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on the Kitronik :CITY layout we...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on...

Using Kitronik ZIP LEDs With The BBC microbit

In this practical guide for Kitronik ZIP LEDs, we cover; what ZIP LEDs are, how they work and how to write code for them, using the Microsoft MakeCode Editor for...

Using Kitronik ZIP LEDs With The BBC microbit

In this practical guide for Kitronik ZIP LEDs, we cover; what ZIP LEDs are, how they work and how to write code for them, using...

Adding Extra ZIP LEDs To The Kitronik Halo

The Kitronik ZIP Halo for the BBC microbit incorporates 24 colourful ZIP LEDs. It also has an ‘extension’ connection point that allows extra ZIP LEDs to be connected and controlled...

Adding Extra ZIP LEDs To The Kitronik Halo

The Kitronik ZIP Halo for the BBC microbit incorporates 24 colourful ZIP LEDs. It also has an ‘extension’ connection point that allows extra ZIP LEDs...

microbit Powered Halo-ween Ironman Arc Reactor

With Halloween just around the corner, it’s time to get your costume ready! Become a superhero and create your own pulsing reactor to complete your Iron Man costume or wear...

microbit Powered Halo-ween Ironman Arc Reactor

With Halloween just around the corner, it’s time to get your costume ready! Become a superhero and create your own pulsing reactor to complete your...

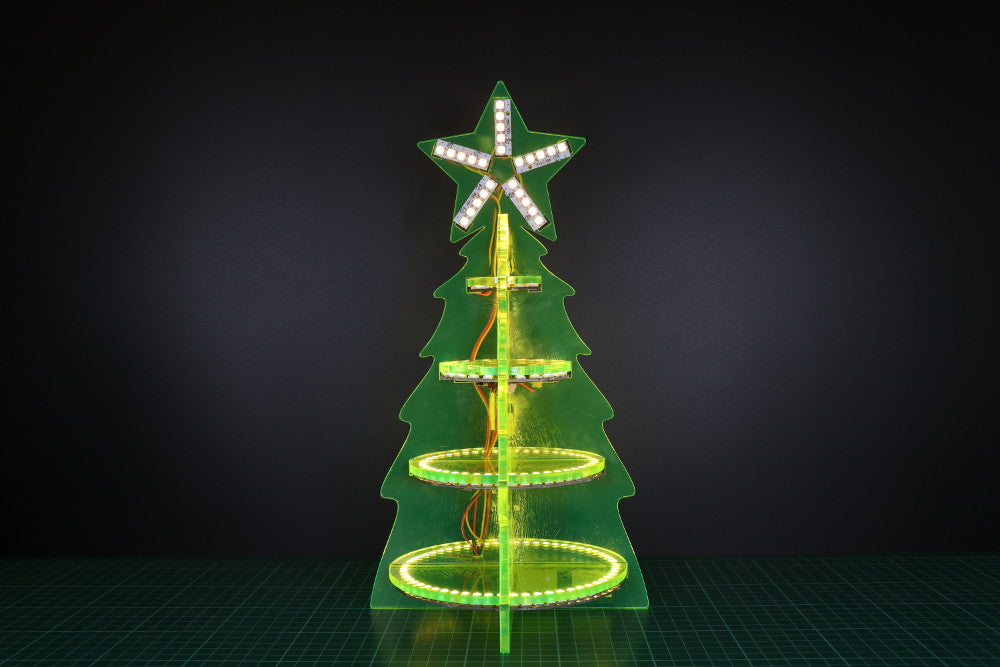

ZIP Halo Christmas Tree

For day eleven of our 12 Makes of Christmas we made a ZIP Halo Christmas Tree. Follow our step by step guide and make your own. This is quite an involved build as there is...

ZIP Halo Christmas Tree

For day eleven of our 12 Makes of Christmas we made a ZIP Halo Christmas Tree. Follow our step by step guide and make your own. This is quite an...

Q:
Are you able to use an Arduino with this?
Asked by: Sam Campbell
A:
HI Sam,

In theory yes the ZIP LEDs should be able to respond to most micro controllers provided they are the correct voltage. We have not get any guides and have not tried it specifically though I am afraid.

Best Regards

Cullen
Answered by: Cullen Lewis
12-Mar-20

Q:
Do these have to be wired up to a mains supply or will they work using a 12v battery? Also are they able to produce a warm white colour?
Asked by: Jack
A:
Hi Jack,

Thank you for your question, you should definitely not connect it to a 12V supply. These are run from 3.5V to 5V and draw 50mA so would not really be suitable on mains supply.

They don't produce a warm white colour unfortunately.

Best Regards

Cullen
Answered by: Cullen Lewis
04-Mar-20

Q:

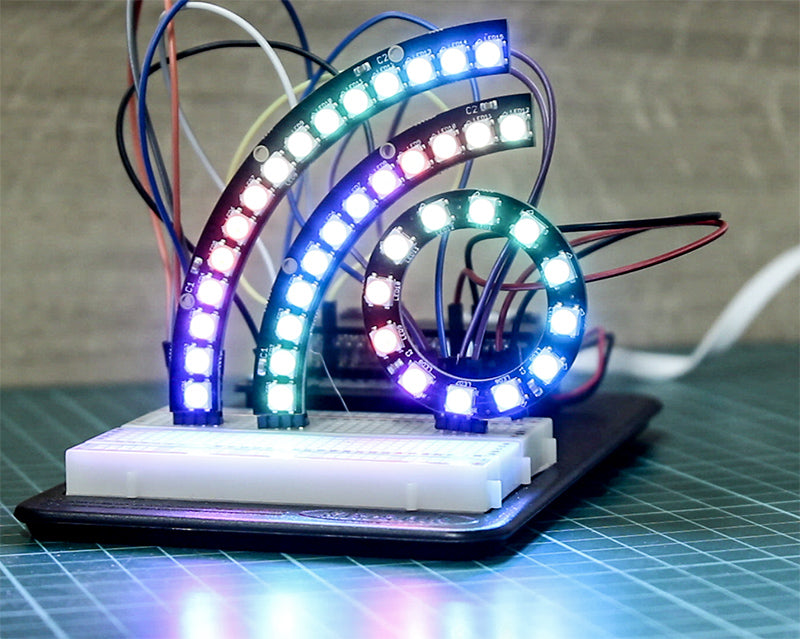

How can I connect the ZIP Circle using breadboard jumper wires like you have in the third picture (it only shows the front)?
Asked by: Baptiste Guittet-Carriere
A:

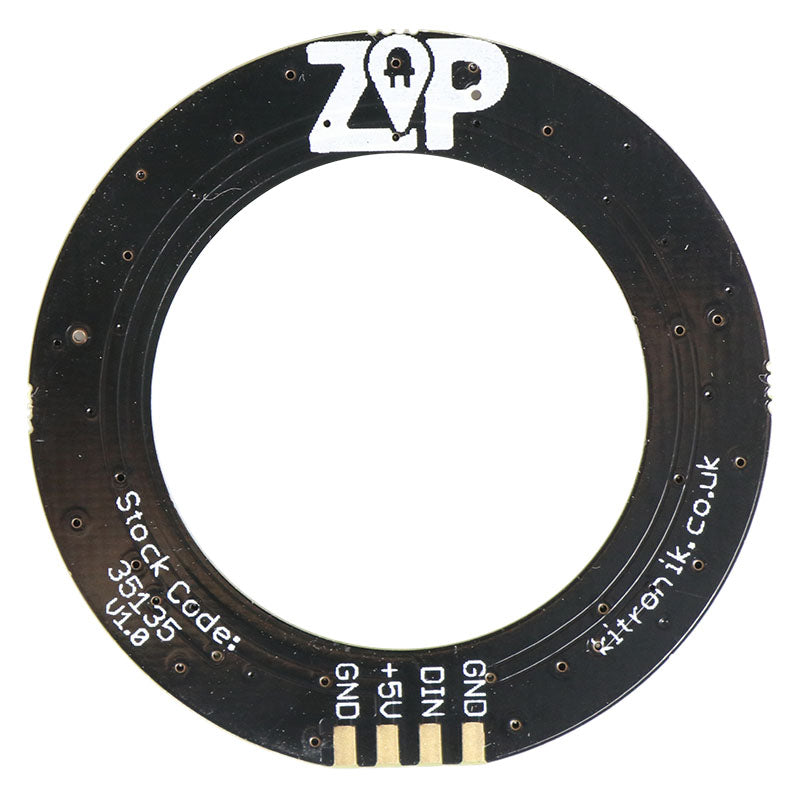

Hi, On the back of the board there are 4 solder pads, to enable you to place this into a breadboard you can solder pin headers onto the back of this, this is what we did to create this photo and also how they are supplied in the ZIP Add-on for the inventor's kit . In this kit we used these , and snapped these into 5's.
Answered by: Michael Lockhart
19-Oct-18

Q:
Can I connect a 4.5V battery arrangement to this directly just to light them all up at once?
Thanks
Asked by: Richard
A:
Thank you for your question, I am afraid not addressable LEDs will not function without a micro controller like a micro:bit to control them.
Answered by: Cullen Lewis
08-Jun-18

Q:
Micropython equivalent code please.
Asked by: Olivier
A:
Hi Olivier, We don't have any generate Micropython code for the ZIP LEDs yet. However we have some Micropython code which can be used with the :GAME ZIP 64, which has ZIP LEDs on. Any library that uses Neopixels, (Adafruits branded version of LED) would work also.
Answered by: Michael Lockhart
19-Feb-18
