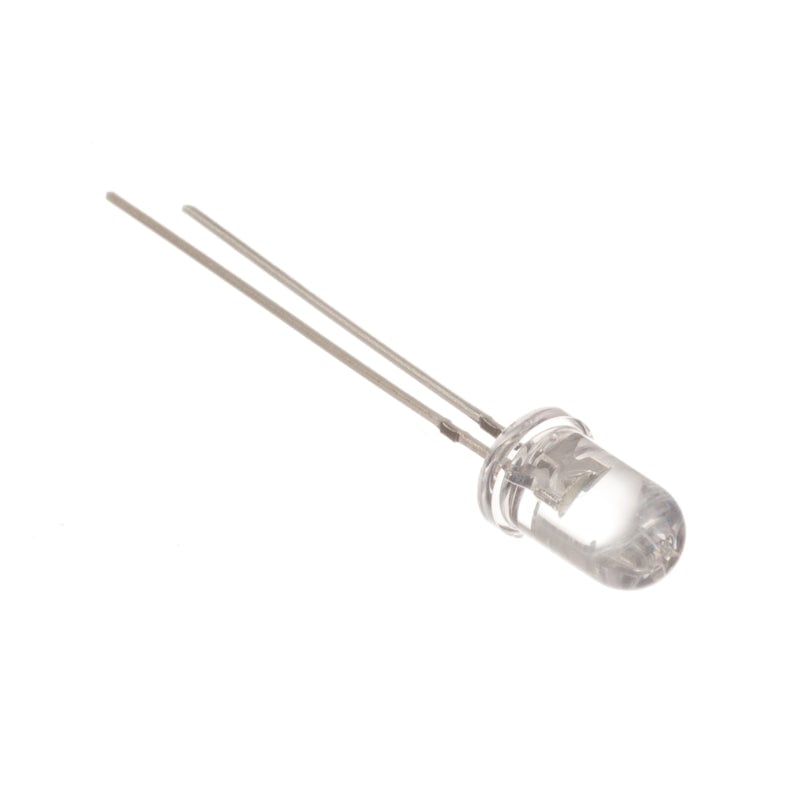

White 5mm Water Clear LED - 15deg - 5000mCd

Stock code: 3524
filler

Pricing:Ex VATInc VAT
1+
£0.30
£0.36
10+ £0.25 £0.30
100+ £0.20 £0.24
500+ £0.16 £0.19
Stock:
In stock

Description

No of parallel LEDs:
LED forward voltage: V
Typical LED current: mA
Battery voltage: V
Resistance (calc): Ohms
Preferred value: Ohms
Resistor colour bands:
Enter the operating voltage, click calculate resistor and the resistor value to work with the LED described on this page will be shown.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found in the product description.
Getting Started with E-Textiles: Basic Circuit with Standard LED featured image

DescriptionOne you've mastered starting and finishing off stitches you're ready for this tutorial which describes how to create a basic E-Textiles circuit using a standard through hole LED. This circuit...

Getting Started with E-Textiles: Basic Circuit with Standard LED featured image

DescriptionOne you've mastered starting and finishing off stitches you're ready for this tutorial which describes how to create a basic E-Textiles circuit using a standard...

Q:
How many of these will run off a 9v battery and will they need a resistor?
Asked by: Rebecca
A:
The forward voltage on the LED is 3.5V, this means that when the LED is lit there will be around 3.5V across it. If you put two in series then across the pair the voltage drop will be 7V. With 3 it would be 10.5V. So to answer the first part of the question you can drive two LEDs from a 9V battery. To answer the second part, as the battery is at 9V and the LEDs have 7V across then the resistor must have 2V across it. Depending on how bright you want the LEDs to be will depend on the resistor value. Lets suppose we go for 20mA flowing through the LEDs, then there will also be 20mA flowing through the resistor. So using Ohms law, if V=2V and I=0.02A then R=100 ohms.
Answered by: Geoff Hampson
05-Sep-11

Q:
Can these be powered by a USB source? (5volt?)
Asked by: Mike
A:
Yes you can drive this LED from 5V however you MUST USE A CURRENT LIMIT RESISTOR. On the white USB lamp kit we use a 150 ohm resistor, which is plenty bright enough, you can go down to a 100 ohm which will give you about 20mA. If you are unsure about which resistor to use we have a nice tool in the resources section. The USB port can supply 100mA without negotiation so could run up to 5 white LEDs.
Answered by: Geoff Hampson
05-Apr-11
