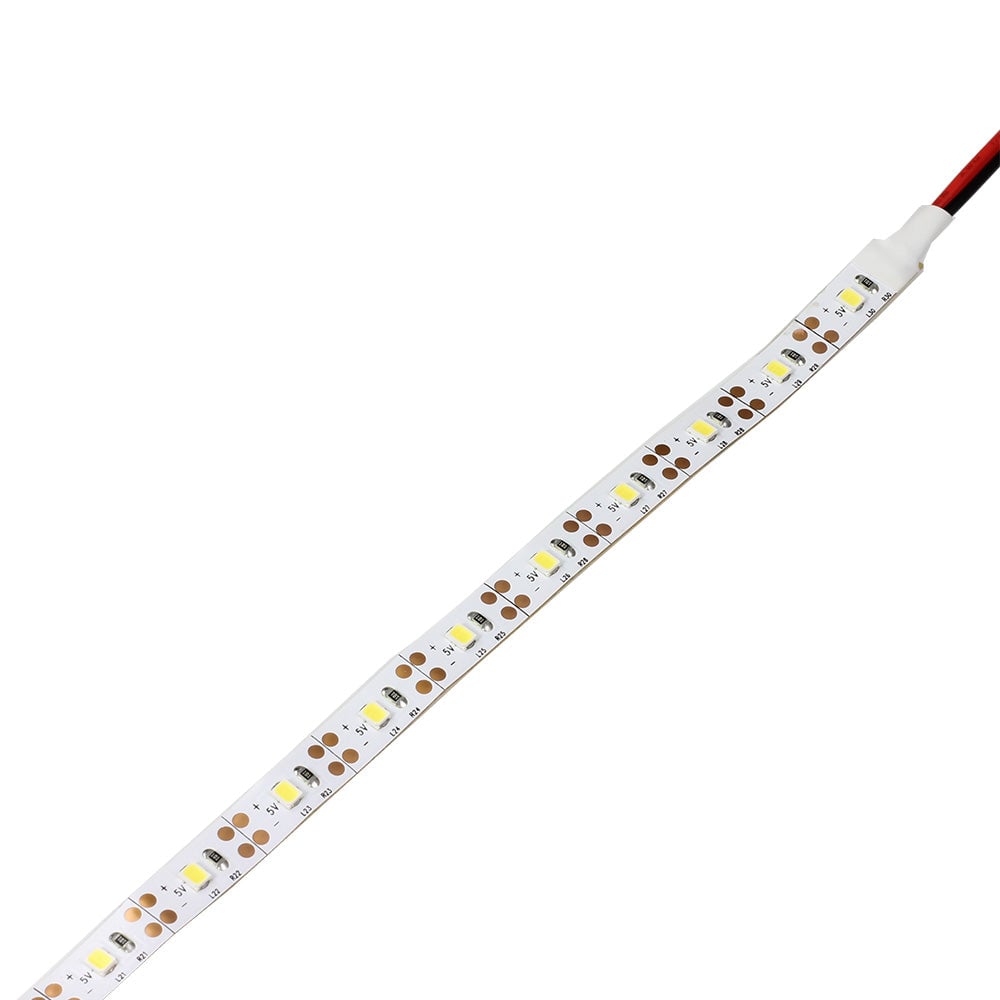

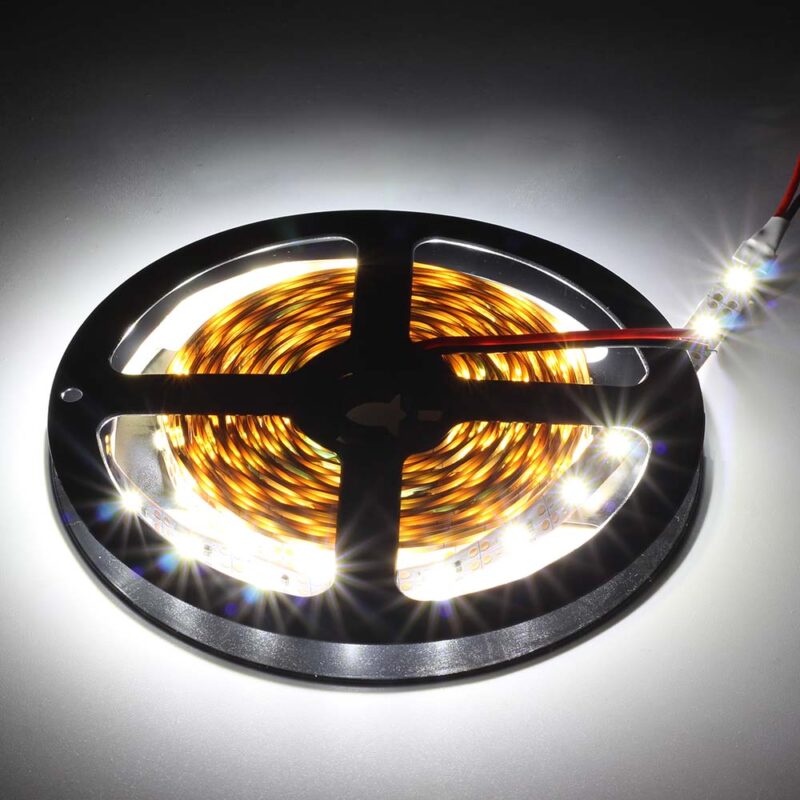

White Flexible LED strip, 300 LEDs, 5VDC, 5m Reel

These 5V White Flexible LED strips are supplied on a 5M roll, each roll containing 300 LEDs. They are extremely versatile and can be used in a wide variety of lighting applications.

The 5M white flexible LED strips can be cut to size easily as they are broken up into 300 sections, marked by a cutting line. Each flexible section contains an LED, a limiting resistor, and solder pads. The strips also feature a 3M tape rear side, so the strips can be easily fixed in place to your project. You can achieve a wider spread of LEDs around a project by separating the strips into 1 LED section and rejoining the sections together with lengths of wire.

The strips require a 5V supply and when lit, have a generous viewing angle of 120 degrees and are 1440-1560 lumens. The LEDs are high flux surface mounted 2835 LEDs.Each single LED section is rated for a maximum supply of 21mA@5V.

Note:

• Though these strips are very flexible, care should be taken not to bend them around very sharp corners/angles as this may cause them to become damaged.
• Each single LED section is rated for a maximum supply of 21mA@5V.

Features:

• 5V White Flexible LED strips on a 5M roll, with 300 LEDs per roll.
• The LEDs are high flux surface mounted 2835 LEDs.
• They are extremely versatile and can be used in a wide variety of lighting applications.
• The reels can easily be split into single LED sections, along the clearly marked cutting line.
• Each flexible section contains an LED, a limiting resistor, and solder pads.
• It also features a 3M tape rear side, for ease of fixing.
• The strips require a 5V supply.
• Each single LED section is rated for a maximum supply of 21mA@5V.
• The LEDs have a viewing angle of 120 degrees.
• 1440-1560 lumens.

Contents:

• 1 x White Flexible LED strip, 300 LEDs, 5VDC, 5m Roll.

Dimensions:

• Reel Length: 5M.
• Section Length: 16.6mm.
• Section Width: 8mm.

Requires:

• Soldering Iron.
• Solder.

Resources:

• Datasheet.
