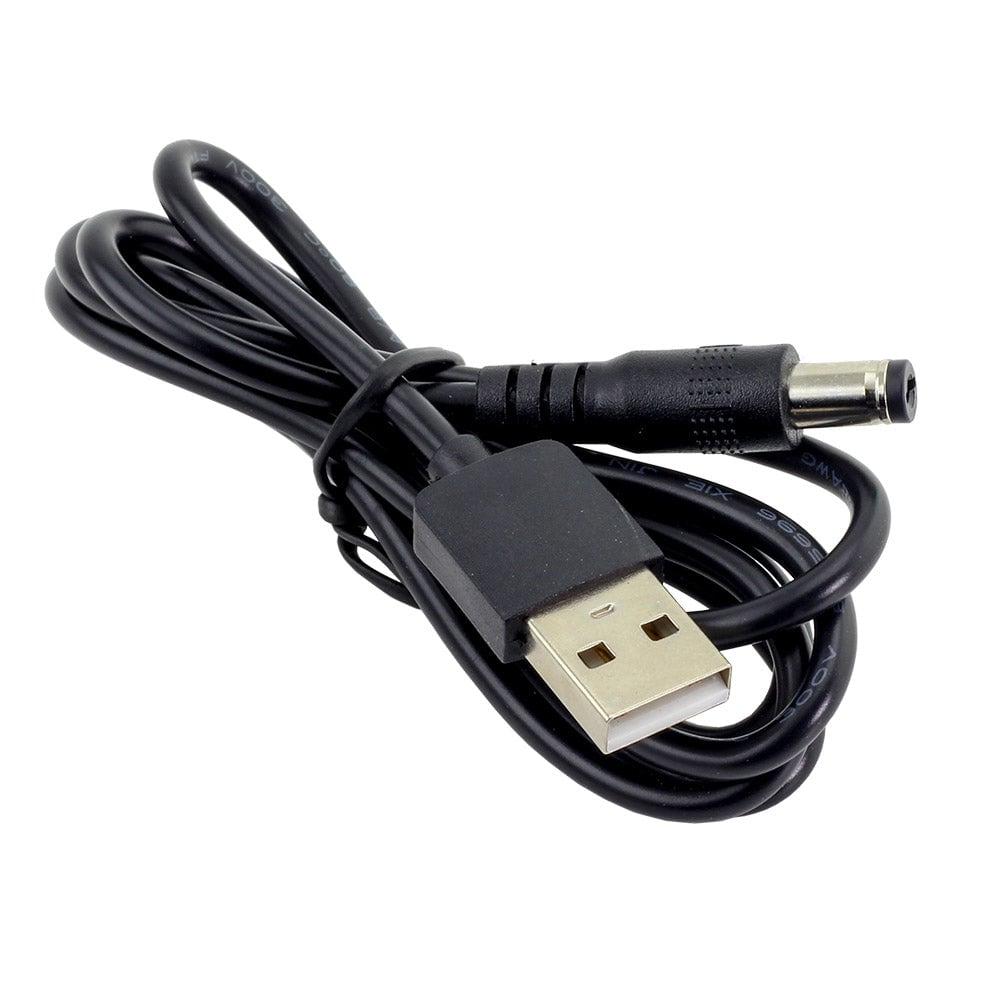

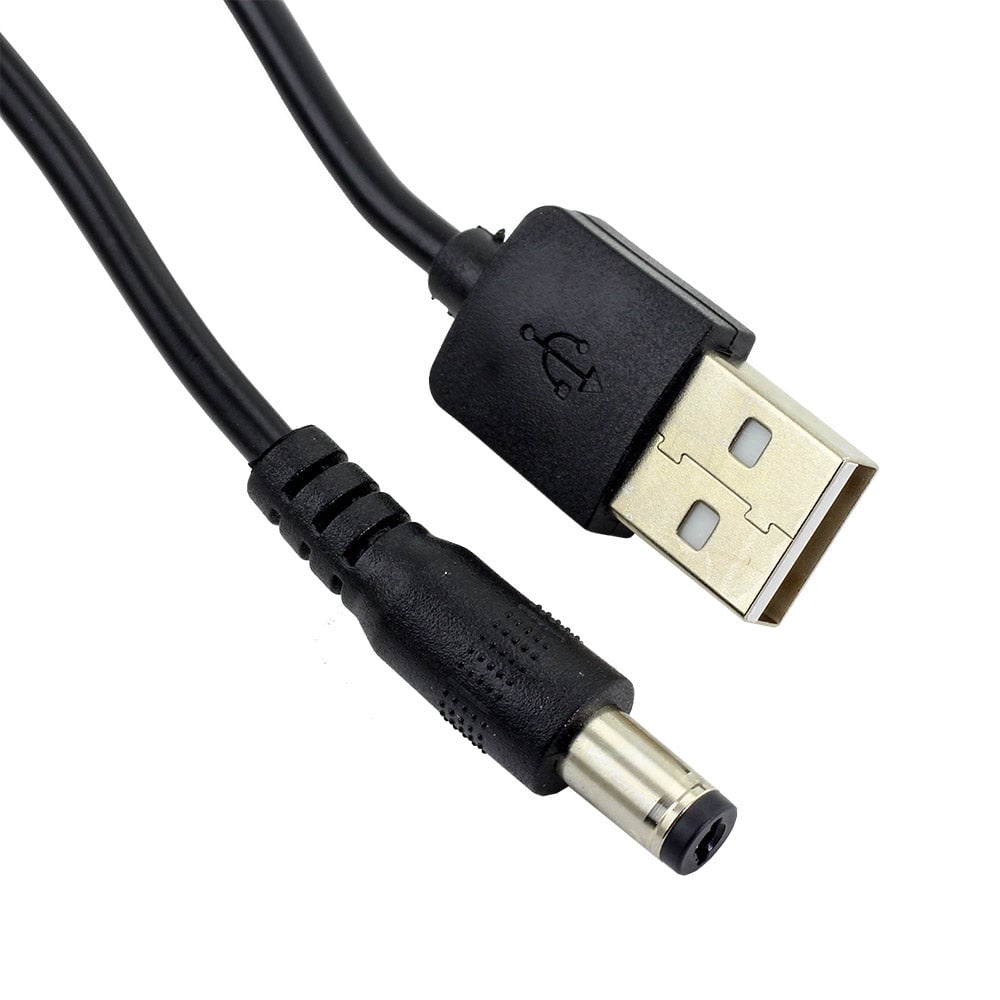

USB to 2.1mm Jack Cable, 5V, 2A

This is a simple cable that adapts from a USB port to a 5.5 x 2.1mm barrel connector, centre positive. This cable allows the user to use a USB port on a computer, laptop, or on our USB power supply to provide development boards with 5V. The cable is rated for a maximum of 2A.

The USB specification limits current consumption to a max of 500mA from a USB port so if more current is required a suitable power supply is needed. It also features a generous cable length of 1M.

Features:

• Adapt from a USB port to a 5.5 x 2.1mm barrel connector.
• Rated for a max of 2A.
• It also features a generous cable length of 1M.
• RoHS Compliant.

Contents:

• 1 x USB to 2.1mm DC lead.

Dimensions:

• Lead Length: 1M.

Resources:

• Drawing.
