DC Power Socket

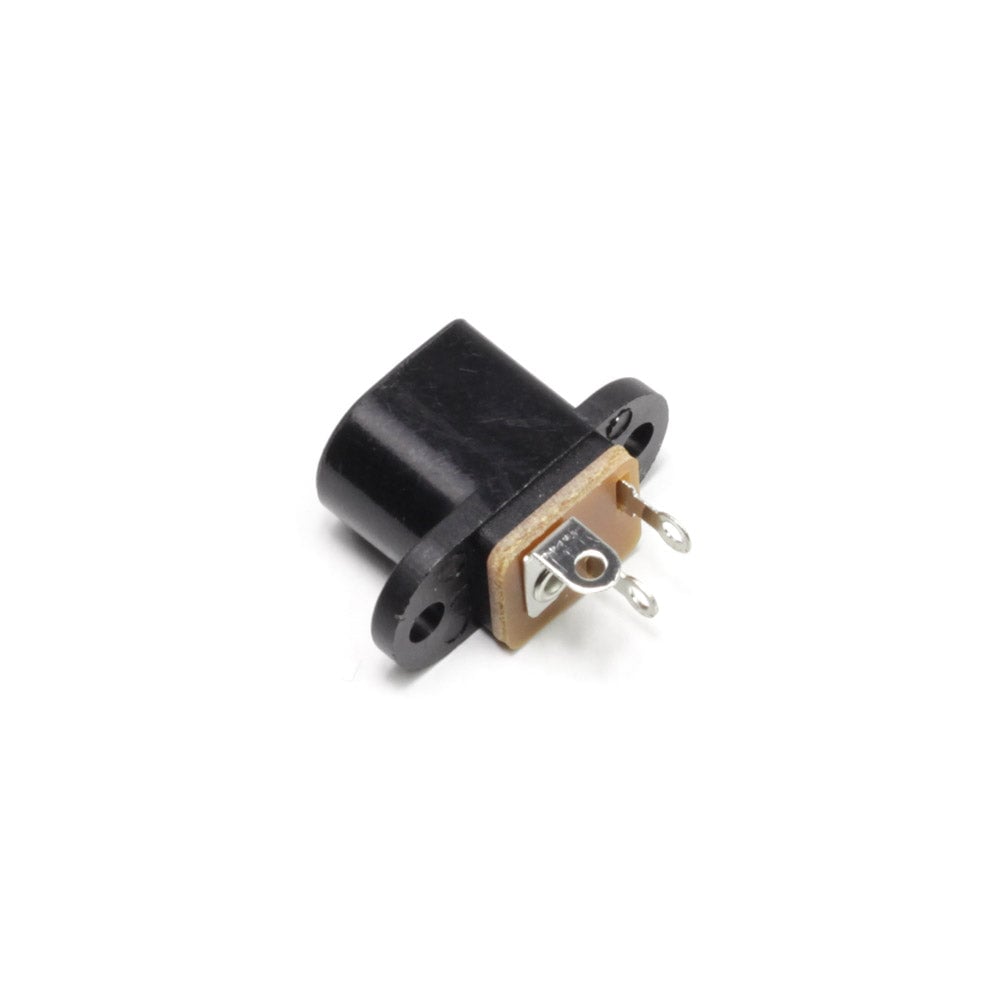

DC Power Socket, Chassis Mount, pack of 10 Image 2

DC Power Socket, Chassis Mount, pack of 10

Stock code: 4107
Pricing:Ex VATInc VAT
1+£0.00
(excl. VAT)
£0.00
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 4107 Categories: , , Tag:

A chassis-mounting DC power socket designed for use with 2.1 mm DC plugs. It features switched contacts and solder terminals, making it suitable for a wide range of electronics projects, enclosures, and custom power input assemblies.

Features:

  • Chassis-mount power socket for 2.1 mm DC plugs.
  • Switched contacts for reliable power routing.
  • Solder terminals for secure electrical connection.
  • Fixing centres: 15.5 mm.
  • Rated at 3 A, 12 V DC.

Contents:

  • 10 × Power Sockets, Chassis Mount

Resources:

Documents & downloads

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “DC Power Socket, Chassis Mount, pack of 10”

Your email address will not be published. Required fields are marked *

Questions and answers

    which is the positive and negative terminals please?your other through panel mount socket has a nice photo with labels for thisThanksHoward
  1. 0 votes
    Q which is the positive and negative terminals please?your other through panel mount socket has a n...... Read more
    Asked by Anonymous on January 21, 2016 12:00 am
    Answered by the admin The large right angled connector is usually +V, the middle of the three connectors is the one which can be used if you want to switch between batteries and walls power, this would be connected the 0V’s on the battery, otherwise left blank. The remaining connector, furthest from the large connector is the 0V’s.
    2. Hi, Will this work on a 5v 2.5 power supply that is provided from you? And will I be able to solder it down on a perforated board or pcb? Thanks Lewis Molyneux
  2. 0 votes
    Q Hi, Will this work on a 5v 2.5 power supply that is provided from you? And will I be able to sold...... Read more
    Asked by Anonymous on October 19, 2012 12:00 am
    Answered by the admin All the DC wall units we sell (except the USB one) have a 2.1mm jack lead and all the sockets are also 2.1mm so all are compatible with each other. This product is designed to be mounted on a chassis and therefore wont mount directly in to a PCB. You will need to connect wires between the socket and the PCB.
