Add obstacle detection to your robotics, electronics, or Arduino project. This module has been specially selected to work on the voltage range typically found with the Arduino range of products.

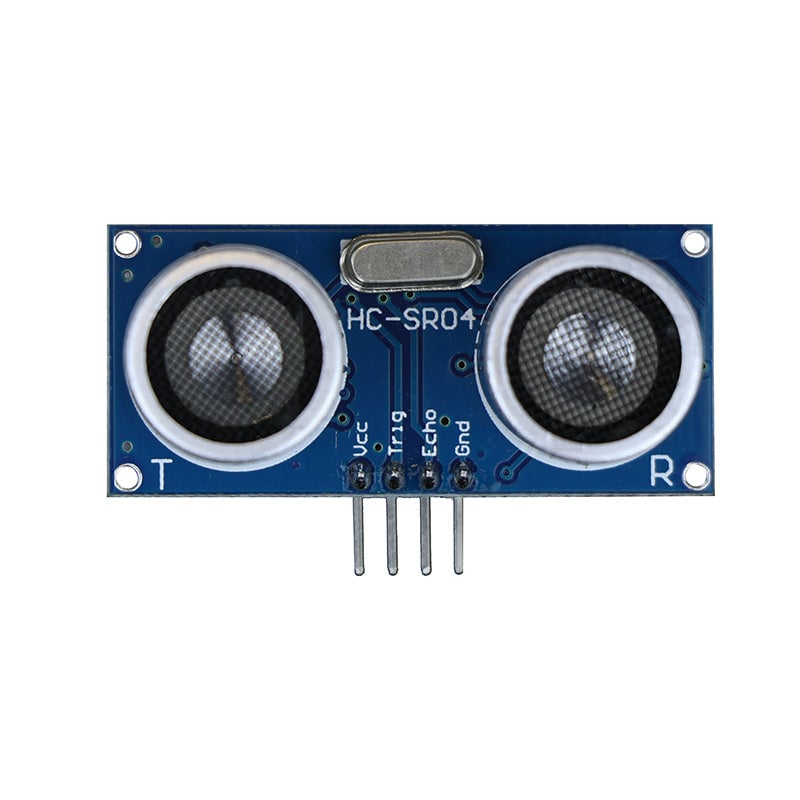

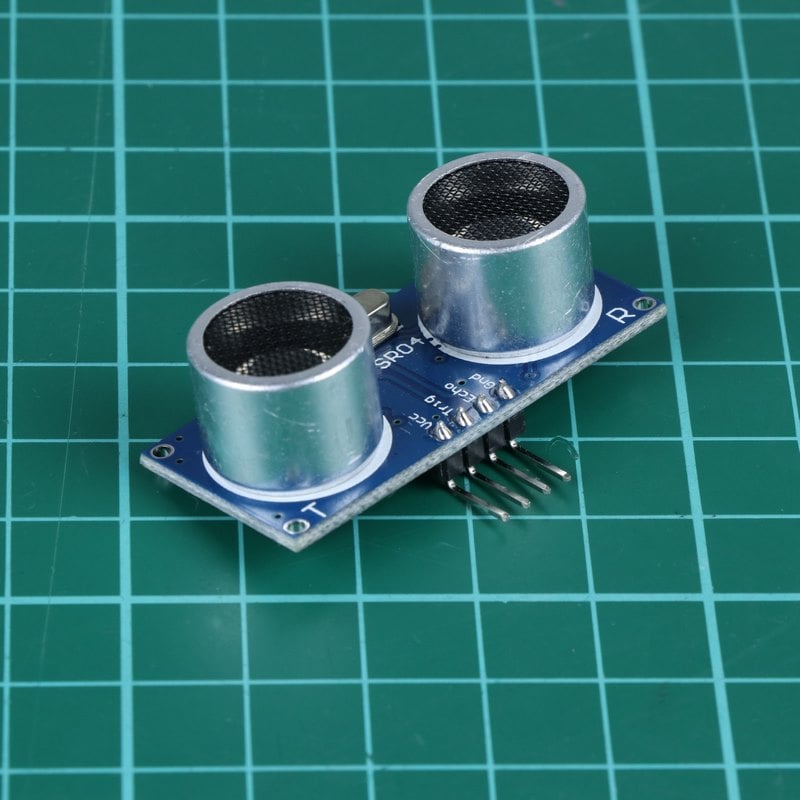

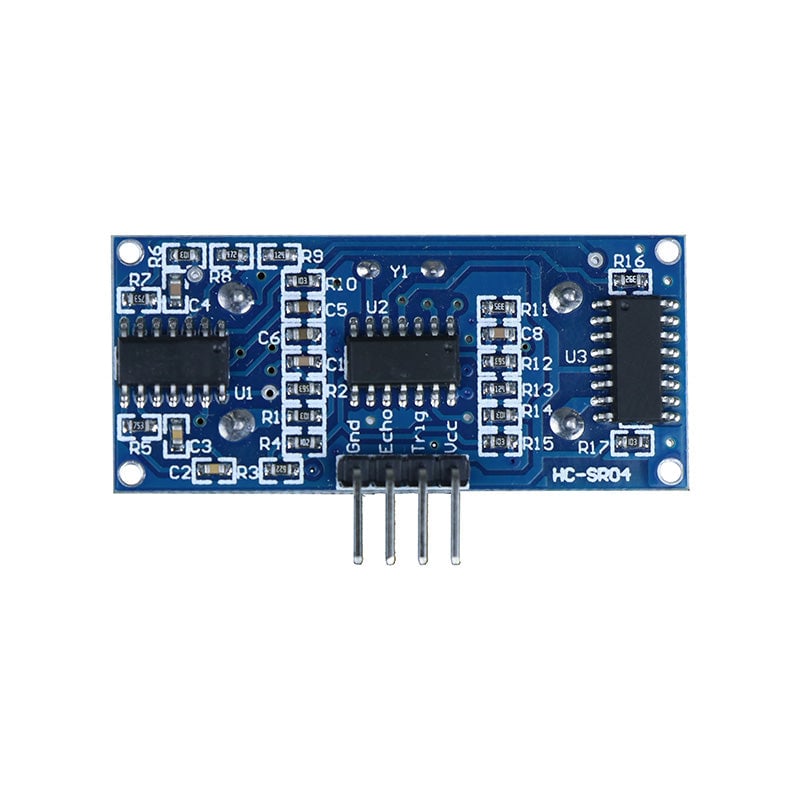

This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.
There are only four pins that you need to worry about on the HC-SR04: VCC, Trig, Echo and GND. VCC and GND are for power and Trig, Echo and GND are for your signal. GND is in with the signal set since it's needed for a baseline.
- Add obstacle detection to your robotics, electronics, or Arduino project.
- It can also be added to micro:bit projects provided a separate power supply is used.
- It provides 2cm to 400cm of non-contact measurement functionality
- It has ranging accuracy that can reach 3mm.
- Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit.
- The pins are; VCC, Trig, Echo and GND
- 1 x HC-SR04 ultrasonic ranging sensor.
- Length: 45mm.
- Width: 20mm.
- Max Height: 16mm.
- Pin Pitch: 2.54mm
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
- For information about all of the delivery options we offer see full delivery details.
Apologies for the delay in coming back to you the distance sensor works best from 5V so I would power that from 5V with the micro:bit pin reading that power with a chosen pin and ground but powering the micro:bit from 3V itself separately.
