Learn how to control servos with the Raspberry Pi with the Monk Makes Servo Kit for Raspberry Pi.
Get into controlling servos with the Raspberry Pi with this extremely easy to use kit. The kit includes the ServoSix interface board, two servos, jumper wires, a battery box, and a Raspberry Leaf GPIO template to help you find the right pins.

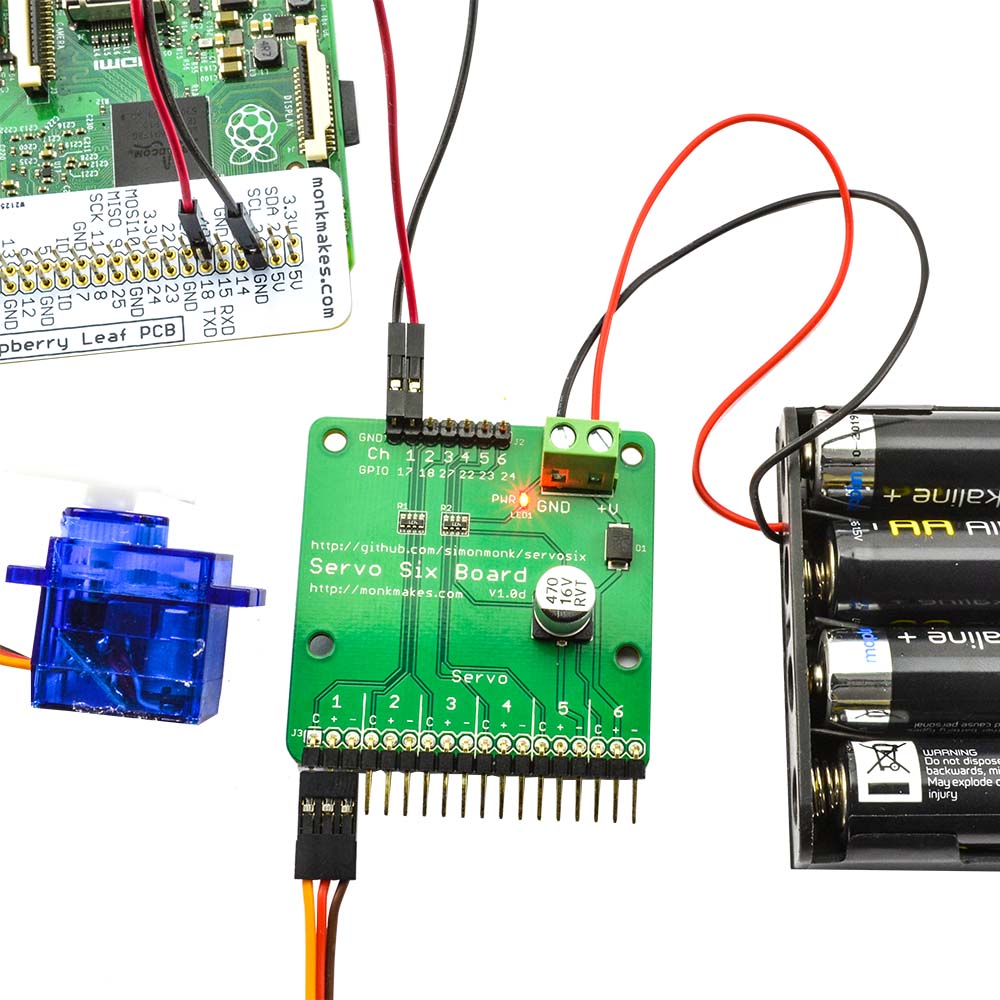

At the heart of the kit sits the ServoSix board which allows the user to control up to six servos with a Raspberry Pi. The board features terminal block styler power input and 18 ( six lots of 3) pin headers on a standard 2.54mm pitch for connecting the servos. There are also 6 pin headers on a standard 2.54mm pitch for connecting the ServoSix board to the Pi. Additionally, there is a handy power indicator LED on the front of the PCB and the board has reverse polarity and over-current protection to protect the GPIO pins on the Pi.
The downloadable guide introduces you to working with the ServoSix board, how to get get it wired up, and then how to write code that will allow you to control the servos.
- A Raspberry Pi is not included.
- Batteries are not included.
- Learn how to control servos with the Raspberry Pi.
- The kit is supplied with two servos so you can start making interesting projects straight away.
- The included Raspberry Leaf GPIO template makes connecting the Pi to the ServoSix board a painless task.
- The downloadable instructions take you from basic setup to writing code, in a simple and concise way.
- The kit can also be used with Arduino. An Arduino coding guide is included in the instructions.
- ServoSix board features;
- Screw terminals for servo power supply.
- Reverse-polarity protection for the servo power supply.
- 470µF 16V capacitor for servo supply.
- 470Ω current limiting resistors for servo control lines (to protect GPIO pins)
- Power indicator LED.

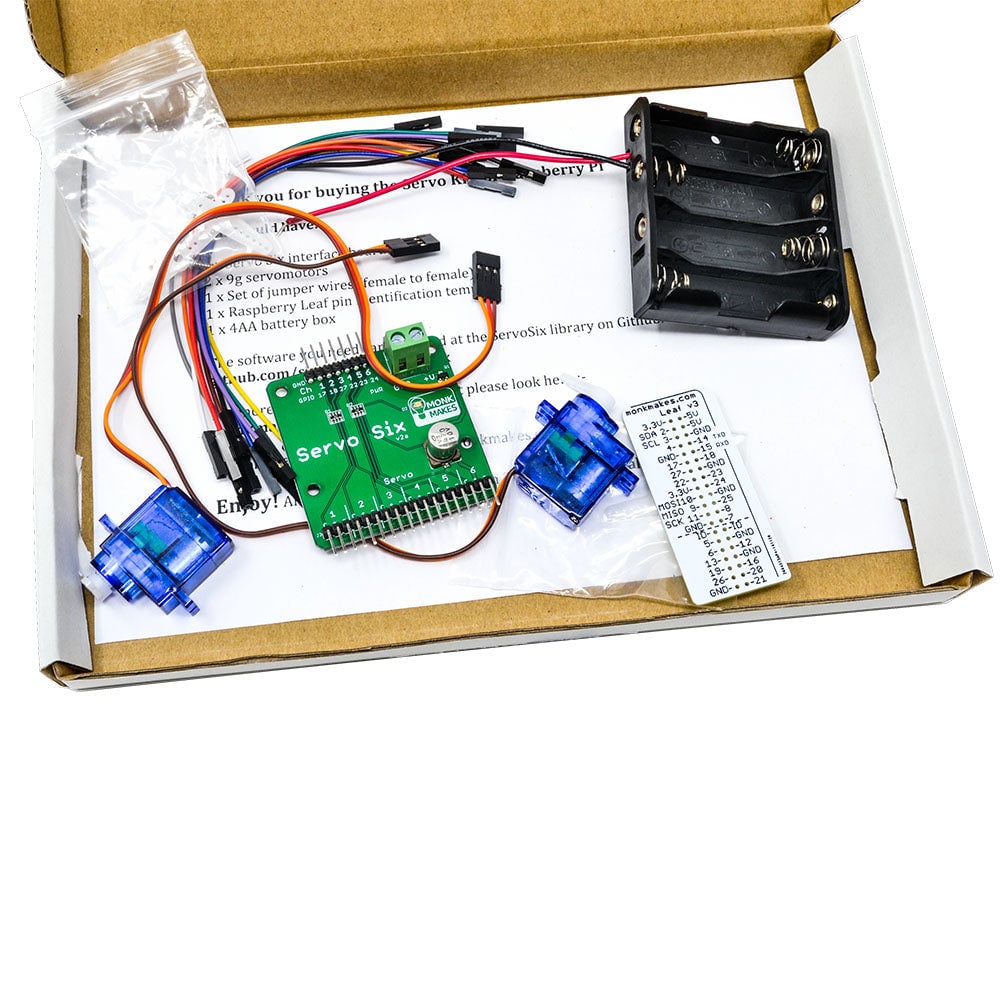

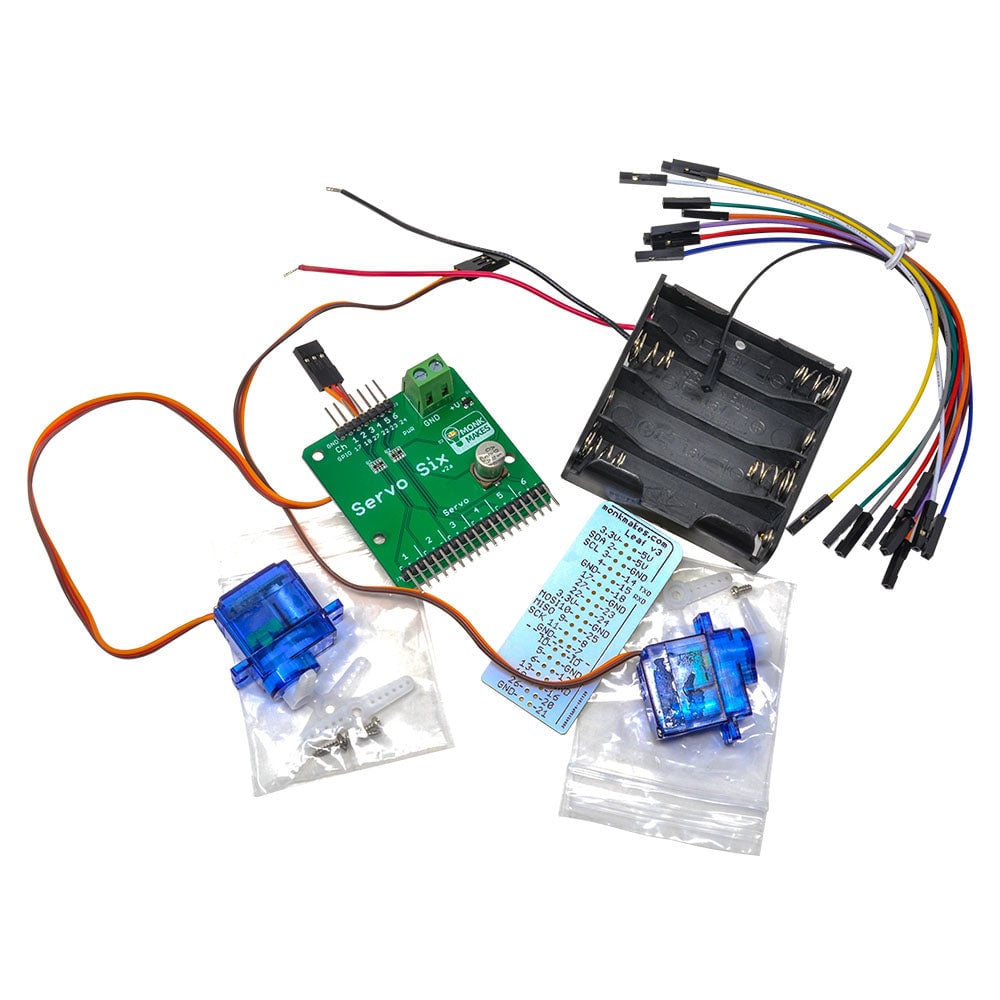

- 1 x Monk Makes ServoSix interface board.
- 2 x Servo motors.
- 1 x Raspberry Leaf GPIO template.
- 1 x 4AA battery holder.
- 1 x pack of female to male jumper wires.
- 1 x pack of male to male jumper wires.
- Instructions and basic setup guide.
