The Pimoroni Grow Mini HAT for Raspberry Pi is a compact monitoring system, designed specifically for plant care. It will monitor your plant's growing conditions and display the information on the onboard 160x80 pixels screen, issue a call to action via an onboard buzzer, or perform an action via a connected external device such as a pump. This board is compatible with all 40-pin header Raspberry Pi models.
The board features a screen, 4 x navigation buttons, a buzzer, light/distance sensor, 3 x connections to capacitive moisture sensors, I2C connections, and 3 x connectors for controlling 5V low current devices, such as; pumps, motors, valves, solenoids or lights. Included with the board are 3 x moisture sensors and 3 x 35cm moisture sensor cables.
Having three separate moisture sensors means that you can monitor moisture levels in three different pots at the same time. As the sensors are capacitive and not resistive, they are less prone to corrosion over time.
There is a Python library on GitHub that includes code examples for each part of the board. Additionally, there is code for a full plant monitoring application, so you can get up and running straight away. Included within the application is a basic UI so you can alter settings from the Grow HAT. Full instructions on how to get up and running can be found in the Getting started Guide. Alternatively, you can opt for the super fast method, via the single-line installer below.
curl -sSL https://get.pimoroni.com/grow | bash
- It offers a compact plant care system that monitors conditions, displays its status, attracts your attention, and can take action on your behalf.
- Monitor moisture and light levels and code Grow to control external devices such as pumps to ensure your plants stay in optimum condition.
- Monitor moisture levels in three pots at once.
- Featuring 4 x navigation buttons, a buzzer, light/distance sensor, 3 x connections to capacitive moisture sensors, I2C connections, and 3 x connectors for controlling 5V low current devices.
- Included with the board are 3 x moisture sensors and 3 x 35cm moisture sensor cables.
- Grow HAT Mini specifications:
- IPS LCD (0.96" 160x80 pixels) screen.
- Four tactile buttons.
- Piezo buzzer.
- LTR-559 light and proximity sensor.
- 3 x JST SH 3P connectors for capacitive moisture sensors.
- 3 x Picoblade 2P-compatible connectors with MOSFETs for turning low current 5v devices on and off.
- Pimoroni breakout-compatible pin header.
- Mini HAT-format board.
- Fully assembled.
- Compatible with all 40-pin header Raspberry Pi models.

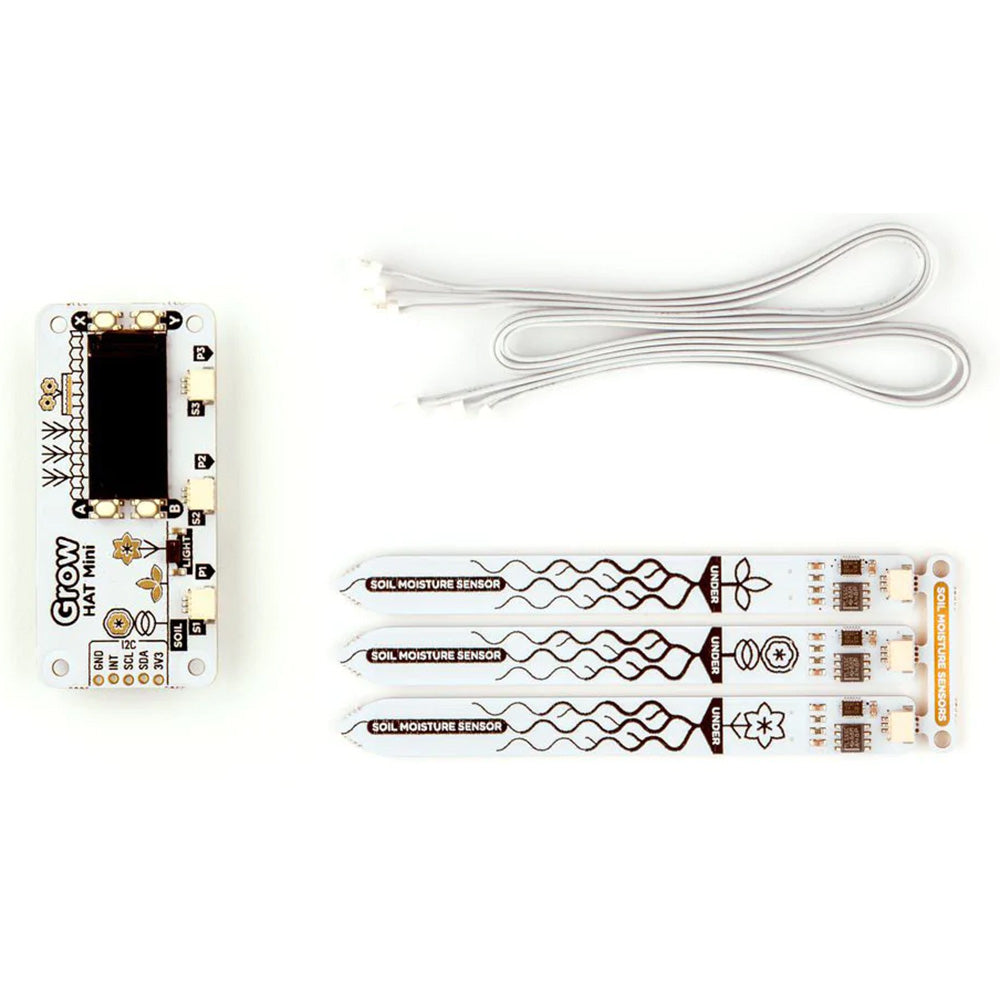

- 1 x Grow HAT Mini.
- 3 x Moisture Sensor.
- 3 x Moisture Sensor Cables (35cm).
- Grow Length: 66mm.
- Grow Width: 31mm.
- Grow Height: 10mm.
- Sensor Length: 99mm.
- Sensor Width: 10mm.
- Sensor Height: 5mm.
