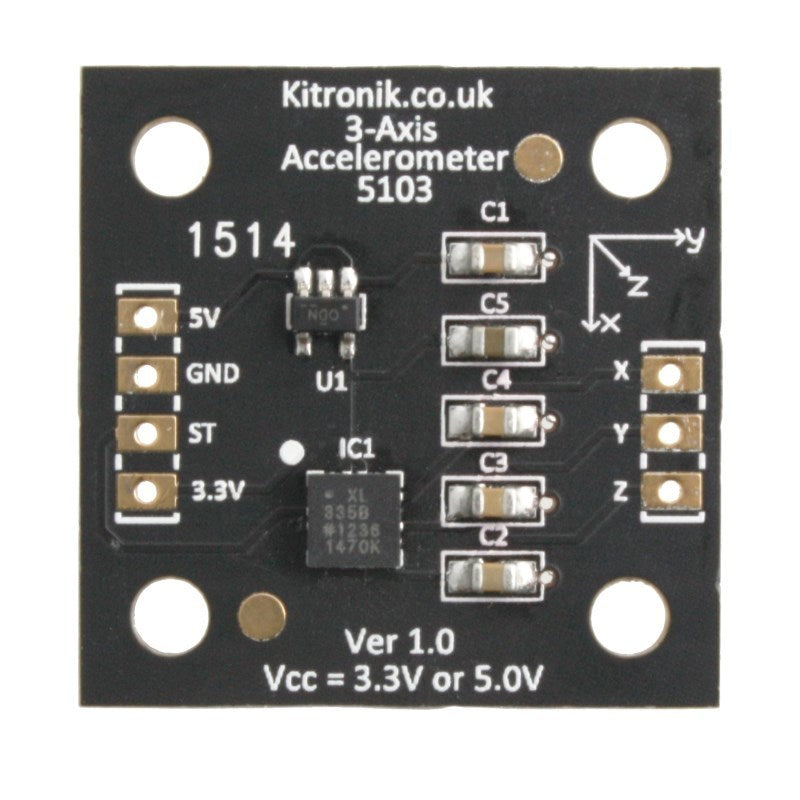

3 Axis Accelerometer Breakout Board (ADXL335)

Save 50%
Stock code: 5103
filler

Pricing:Ex VATInc VAT
1+ £4.00
(excl. VAT)
£4.80
(inc. VAT)
Was £7.95 £9.54
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Buy locally from a partner

Bundled options

3 Axis Accelerometer Breakout Board plus soldering starter kit

large accelerometer break out+ large soldering starter kit

Total: £16.25ex VAT

Description

AttributeValue
Length 28mm.
Width 28mm.
Height 3mm.
Min supply voltage 1.8V
Typical supply voltage 3.3V-5V
Max supply voltage 6.0V
Typical current consumption 350uA
Typical sensitivity of outputs 300 mV/g
Max temperature sensitivity 0.01V/°C

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Q:
What are the values of the capacitors Cx, Cy and Cz. These affect the bandwidth of each sensor output?
Please confirm C2 = Cz, C3 = Cy, C4 = Cx.
Asked by: Paul
A:
Hi Paul, All three capacitors are the same value of 100nF.
Answered by: Michael Lockhart
02-Oct-17

Q:
Hello, i am trying to do a gyrostabilized turret and i am wondering if your board can work with mach3 on analogic ports?

Best regards
Asked by: Guillaume DOLNET
A:

Hi Guillaume, As long as the voltage supply that the Mach3 runs off is the same as the breakout board then this should be fine. The breakout board either runs from a 3.3V supply or a 5V supply.

Answered by: Michael Lockhart
13-Jan-17
