Description
BBC micro:bit with a MI:pro protective case, a 1M anti tangle USB Cable, a Battery Cage and 2 x AAA Batteries. Your BBC micro:bit will come in one of 4 colour schemes, unfortunately it is not possible to specify which colour you will receive.

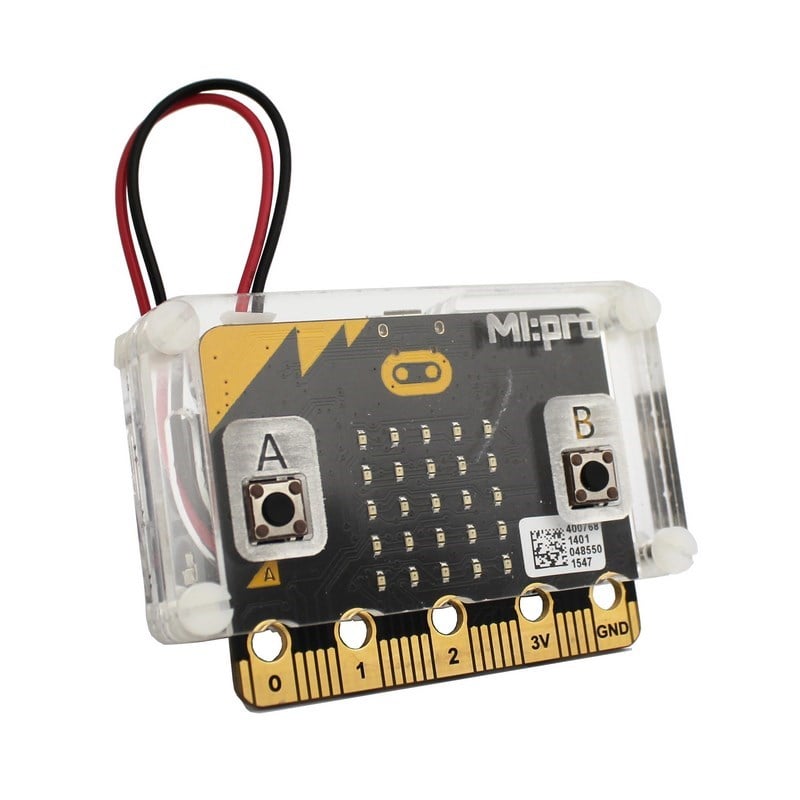

The MI:pro Protector Case not only keeps a BBC micro:bit in perfect condition but also offers a number of other benefits. Keep your BBC micro:bit safe and secure with this compact, portable protective case where the 2xAAA battery pack can be bolted to the back, making a compact and portable unit. It also can be stood neatly on a desk and provide large easy to read labels for the A and B buttons. This case provides full access to the bottom pins on the BBC micro:bit so the Edge Connector Breakout Board for the BBC micro:bit can be used.
The BBC micro:bit is a powerful handheld, fully programmable, computer designed by the BBC and a number of partners to encourage children to get actively involved in writing software and building new things that will be controlled by it. Write your code using one of the easy to use editors provided on the BBC micro:bit website, connect your BBC micro:bit to your computer via USB press the compile button in the editor and then drop the downloaded file directly onto your BBC micro:bit. There is also an app for Android devices.
Wirelessly connect and interact with the world around you. Use Bluetooth Low Energy to connect to mobile phones and tablets, take a selfie or drive the music in your playlists.
The BBC micro:bit is the spiritual successor of the BBC Micro of the 1980s, which itself introduced a generation of children to computing. The BBC micro:bit carries on this 30 year tradition and does it 18 times faster and is 70 times smaller than its predecessor.
Based around a 32 bit ARM Cortex-M0 processor, the BBC micro:bit also features on board accelerometer and compass sensors, Bluetooth Low Energy and USB connectivity, a display consisting of 25 LEDs, two programmable buttons and it can be powered by either USB or an external battery pack. The device inputs and outputs are through five ring connectors that are part of the 21-pin edge connector.
Note:
The MI:pro protector case requires assembly.BBC micro:bit Features:
- USB and Bluetooth Low energy connectivity.
- Compass and Accelerometer.
- 2 x user assignable buttons.
- A 25 LED display.
- 21 pin edge connector.
MI:pro Protector Case Features:
- Provides excellent protection to the BBC micro:bit whilst allowing access to the bottom pins.
- Full access to the A and B buttons on the BBC micro:bit.

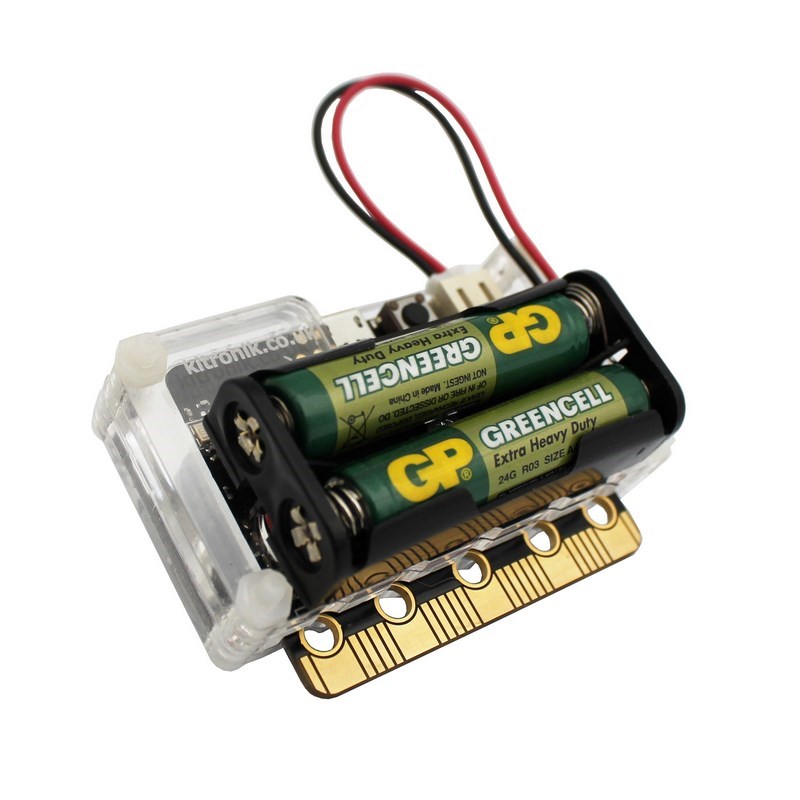

- 2xAAA Battery Cage screws onto back of case for portability.
- Full access to pins and connections including the micro USB connector.
- Clear case shows on-board LEDs for added functionality.

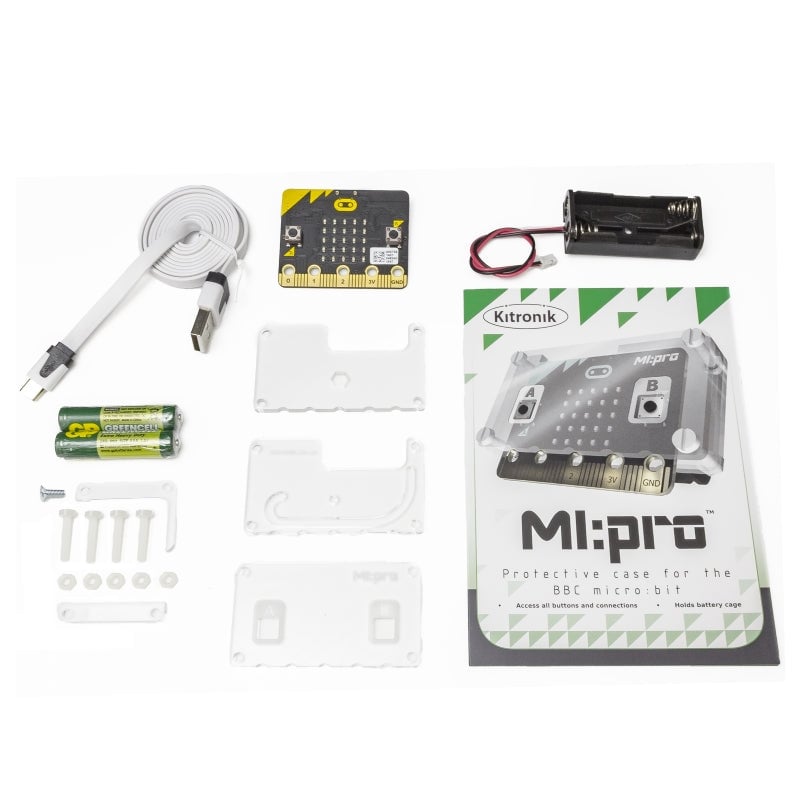

Contents:
- 1 x BBC micro:bit.
- 1 x MI:pro Protective Case.
- 4 x M3 Cheese Head Nylon Machine Screw.
- 1 x Counter Sunk M3 8mm Screw.
- 5 x M3 Nylon Full Nut.
- 1 x Back Mounting Plate.
- 1 x Mid-layer Screw Hole Plate.
- 1 x Front Plate.
- 2 x Mid-layer Plate.
- 1 x 1M Anti Tangle USB Cable.
- 1 x Battery Cage.
- 2 x AAA Batteries.
BBD micro:bit Dimensions:
- PCB Length: 52mm.
- PCB Width: 42mm.
- PCB Height: 11.7mm.
MI:pro Dimensions:
- Length: 67mm.
- Width: 37mm.
- Height: 27mm.
Video:
Requires:
- Computer with Internet access.
Note:
Due to Country specific trademark restrictions there may be some Countries that we are unable to ship the BBC micro:bit to. In the unlikely event that this occurs we will fully refund your purchase.Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit
A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit
Break free from the shackles of your workspace with our range of microbit Case & Accessories Options. If you need to cut the cord from your laptop and go mobile...
Break free from the shackles of your workspace with our range of microbit Case & Accessories Options. If you need to cut the cord from...
This Kitronik University resource is part of the BBC micro:bit partnership and is an in depth tutorial. We demonstrate how to make countdown rocket pencil case with the BBC micro:bit...
This Kitronik University resource is part of the BBC micro:bit partnership and is an in depth tutorial. We demonstrate how to make countdown rocket pencil...
This Kitronik University resource is part of the BBC micro:bit partnership and is an in depth tutorial into making an emoji bag with the the BBC micro:bit and Kitronik free...
This Kitronik University resource is part of the BBC micro:bit partnership and is an in depth tutorial into making an emoji bag with the the...
This Kitronik University Resource is a part of the BBC microbit partnership and is a guide to getting a program onto the BBC microbit. This resource is specifically for the...
This Kitronik University Resource is a part of the BBC microbit partnership and is a guide to getting a program onto the BBC microbit. This...
When you first meet the BBC micro:bit there is a natural progression that occurs as you learn how to interact with it. The first step is usually learning how to...
When you first meet the BBC micro:bit there is a natural progression that occurs as you learn how to interact with it. The first step...
This Kitronik University MakeCode Editor Resource is a part of the BBC micro:bit partnership and is a basic guide for getting started with Microsoft MakeCode Editor. Getting Started with Microsoft MakeCode Editor for...
This Kitronik University MakeCode Editor Resource is a part of the BBC micro:bit partnership and is a basic guide for getting started with Microsoft MakeCode Editor. Getting Started...
In this quick tutorial, we are going to cover how to trim a continuous rotation servo with code. We will be writing our code in Microsoft's MakeCode Editor for the BBC...
In this quick tutorial, we are going to cover how to trim a continuous rotation servo with code. We will be writing our code in Microsoft's...
We are very pleased to introduce the Kitronik Parent's Complete Guide To The BBC micro:bit. We've created this free resource to help parent's get actively involved in helping their children learn...
We are very pleased to introduce the Kitronik Parent's Complete Guide To The BBC micro:bit. We've created this free resource to help parent's get actively involved...
The five minute microbit guide is for you if you can answer yes to the following two questions. Firstly, do you have at least five minutes to learn something new? Second, do...
The five minute microbit guide is for you if you can answer yes to the following two questions. Firstly, do you have at least five minutes...
Q:
How many LEDs can I connect to a microbit?
A:
The max current per pin is 5mA, but with a total maximum for the processor of 15mA.
Nominally a standard LED will take around 10mA so one LED is too much for a processor pin. There are two ways around this, either add a current limit resistor so the LED takes less than 5mA, or add a transistor to each pin so that the current pullled through the pin is tiny, but the current the transistor can drive is a whole lot more.
Answered by: Rob Haywood
26-Sep-16
