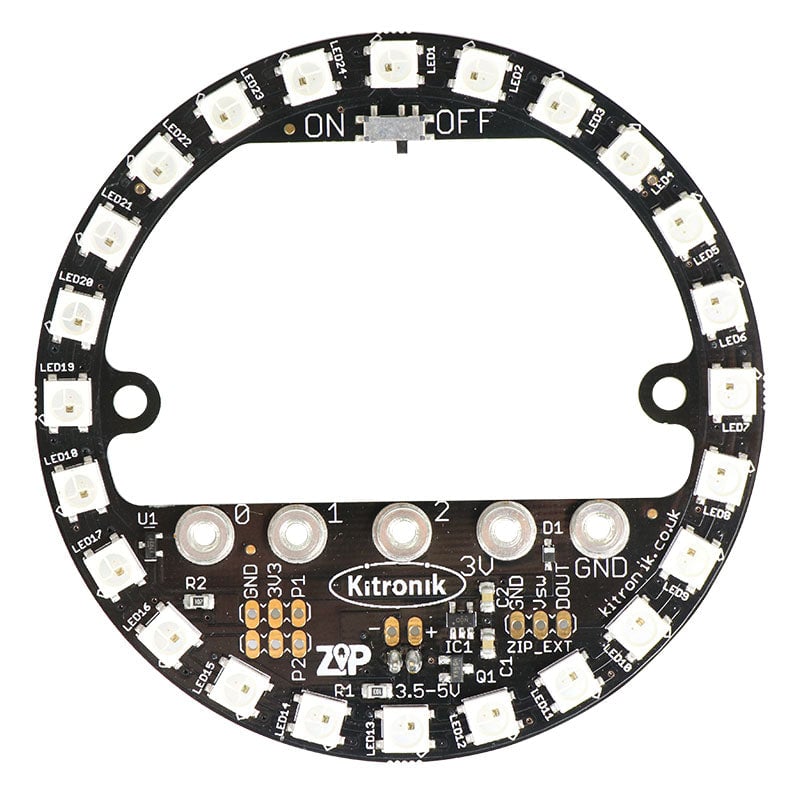

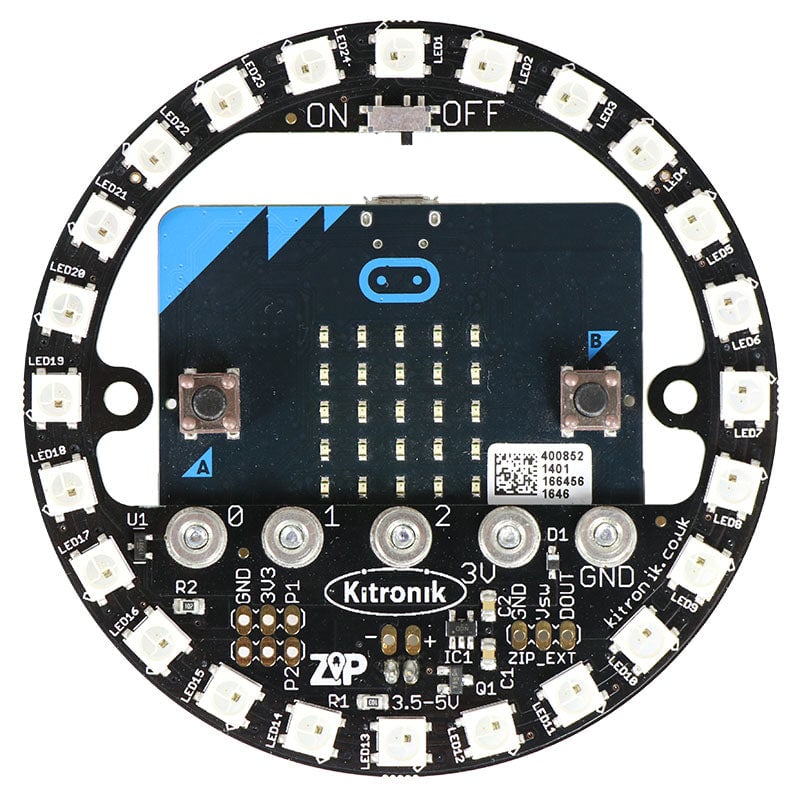

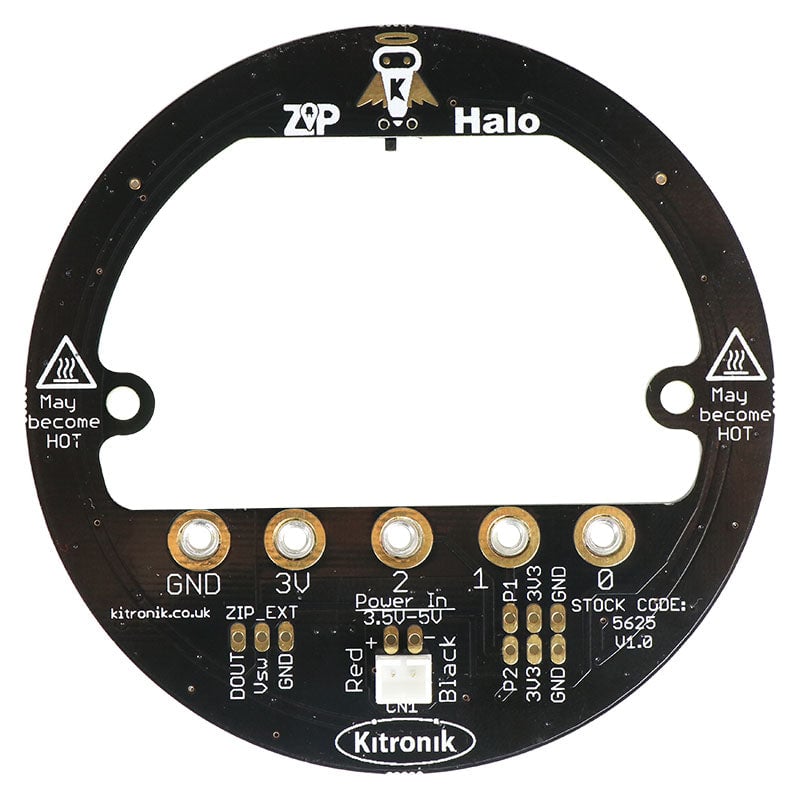

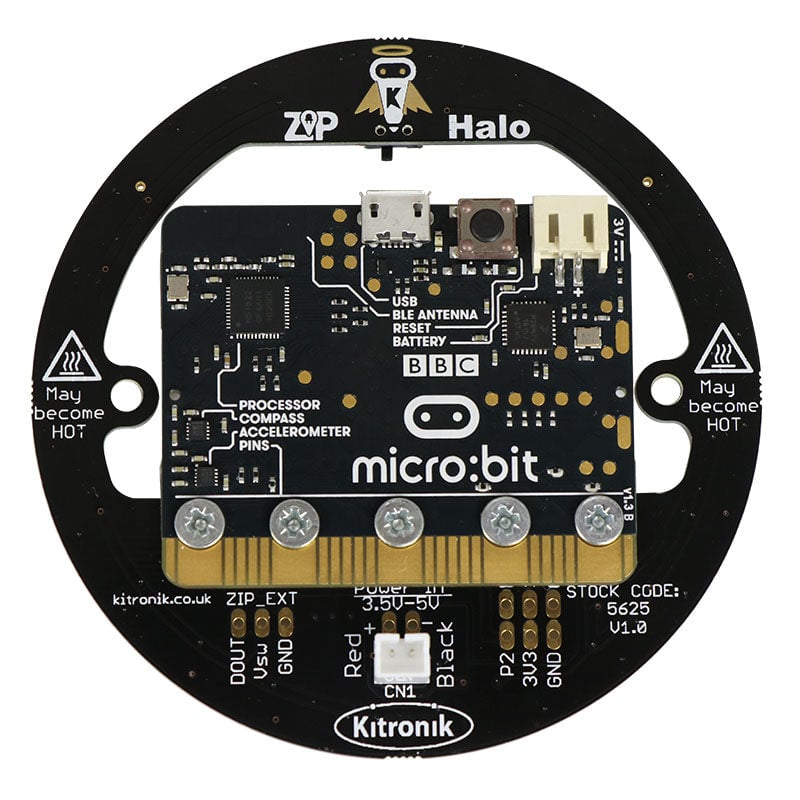

Kitronik ZIP Halo for the BBC micro:bit

Liquid error (product-info line 88): -Infinity
Stock code: 5625
filler

Pricing:Ex VATInc VAT
1+
£11.50
£13.80
10+ £10.50 £12.60
50+ £9.50 £11.40
Stock:
In stock

Bundled options

Kitronik ZIP Halo plus BBC micro:bit

large zip halo for the bbc microbit+ large bbc microbit board only

Total: £21.99ex VAT

Description

AttributeValue
PCB Diameter 80mm.
PCB Component Count 24 ZIP LEDs.
PCB Thickness 1.5mm.
Voltage Nominal (V) 4V.
Voltage Range (V) 3.5V-5V.
Current Max at Nominal Voltage (mA) 50mA at 5V per LED.
Built in blocking diode Yes.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found in the product description.
Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Adding ZIP Hex LEDs To The Simple Robotics Buggy Kit

A wide range of BBC micro:bit resources, what it is, the editors and using the micro:bit

Comparison Between ZIP Halo and ZIP Halo HD

Since launching the ZIP Halo HD back in Autumn 2019, it's proven very popular! It's visually impressive, has some fantastic additional features in comparison to our previous ZIP Halo and...

Comparison Between ZIP Halo and ZIP Halo HD

Since launching the ZIP Halo HD back in Autumn 2019, it's proven very popular! It's visually impressive, has some fantastic additional features in comparison to...

Get Started With Zip Halo For The BBC microbit featured image

This is a short guide to help you get started with ZIP Halo for the BBC microbit. The techniques we cover will help to form the basis of your own coding...

Get Started With Zip Halo For The BBC microbit featured image

This is a short guide to help you get started with ZIP Halo for the BBC microbit. The techniques we cover will help to form the...

Day 3 - BBC microbit ZIP Halo Compass

Find the North Pole with our Christmas themed BBC microbit ZIP Halo Compass for day three of our 12 Makes of Christmas. Although the case requires 3D printing and laser cutting,...

Day 3 - BBC microbit ZIP Halo Compass

Find the North Pole with our Christmas themed BBC microbit ZIP Halo Compass for day three of our 12 Makes of Christmas. Although the case requires...

Cut Out Winter Cabin

For day six of our 12 Makes of Christmas we made a cut-out winter cabin, which we lit with a ZIP Halo for BBC microbit. Follow our step by step guide and build your...

Cut Out Winter Cabin

For day six of our 12 Makes of Christmas we made a cut-out winter cabin, which we lit with a ZIP Halo for BBC microbit. Follow our step by...

microbit ZIP Halo Christmas Baubles

For day seven of our 12 Makes of Christmas we've turned a ZIP Halo for BBC microbit into a fetching Christmas Bauble that would make a great addition to your Christmas tree! As always we've included our DXF...

microbit ZIP Halo Christmas Baubles

For day seven of our 12 Makes of Christmas we've turned a ZIP Halo for BBC microbit into a fetching Christmas Bauble that would make a great addition to your Christmas tree! As...

ZIP Halo Christmas Tree

For day eleven of our 12 Makes of Christmas we made a ZIP Halo Christmas Tree. Follow our step by step guide and make your own. This is quite an involved build as there is...

ZIP Halo Christmas Tree

For day eleven of our 12 Makes of Christmas we made a ZIP Halo Christmas Tree. Follow our step by step guide and make your own. This is quite an...

ZIP Hex Lightsaber – May the 4th Be With You

There has been a disturbance in the micro:bit community, have you felt it? Star Wars day is back and has probably led a lot of you to make something inspired...

ZIP Hex Lightsaber – May the 4th Be With You

There has been a disturbance in the micro:bit community, have you felt it? Star Wars day is back and has probably led a lot of...

6 Lesson Plans For ZIP Halo For BBC microbit

Unlock your students potential with these 6 free Lesson Plans for ZIP Halo for the BBC microbit. These resources are classroom ready but they can also be used by anyone...

6 Lesson Plans For ZIP Halo For BBC microbit

Unlock your students potential with these 6 free Lesson Plans for ZIP Halo for the BBC microbit. These resources are classroom ready but they can...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on the Kitronik :CITY layout we...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on the Kitronik :CITY layout we...

Klimate, microbit and ZIP Halo Big Ben - BETT 2019 Part 3

For part 3 of our microbit Kitronik:City build for Bett 2019 we take a look at Big Ben. Our Big Ben model is the largest on...

Kitronik Christmas Fair - ZIP LED Helter Skelter featured image

This is the second model from our Christmas fair, this time showing off our ZIP LEDs and how the Halo can be used to drive a whole RGB LED chain....

Kitronik Christmas Fair - ZIP LED Helter Skelter featured image

This is the second model from our Christmas fair, this time showing off our ZIP LEDs and how the Halo can be used to drive...

Adding Extra ZIP LEDs To The Kitronik Halo

The Kitronik ZIP Halo for the BBC microbit incorporates 24 colourful ZIP LEDs. It also has an ‘extension’ connection point that allows extra ZIP LEDs to be connected and controlled...

Adding Extra ZIP LEDs To The Kitronik Halo

The Kitronik ZIP Halo for the BBC microbit incorporates 24 colourful ZIP LEDs. It also has an ‘extension’ connection point that allows extra ZIP LEDs...

BBC micro:bit Powered Halo-ween Fancy Dress

Halloween offers the perfect opportunity for some fancy dress fun. In this tutorial, we will show you how this can easily be done using the Kitronik ZIP Halo for the BBC microbit....

BBC micro:bit Powered Halo-ween Fancy Dress

Halloween offers the perfect opportunity for some fancy dress fun. In this tutorial, we will show you how this can easily be done using the Kitronik...

microbit Powered Halo-ween Ironman Arc Reactor

With Halloween just around the corner, it’s time to get your costume ready! Become a superhero and create your own pulsing reactor to complete your Iron Man costume or wear...

microbit Powered Halo-ween Ironman Arc Reactor

With Halloween just around the corner, it’s time to get your costume ready! Become a superhero and create your own pulsing reactor to complete your...

Q:
Is it possible to program this to work with an Arduino Uno R3 or Nano? If so, what driver libraries need to be installed?
Asked by: Tim
A:
Thank you for your question, the LEDs on this board are WS12812B Addressable LEDs from Adafruit so are Arduino compatible it would just need you to wire it up. In terms of libraries you can use the Adafruit Neopixel Library to control those LEDs which is on the link below.

https://github.com/adafruit/Adafruit_NeoPixel

Answered by: Cullen Lewis
09-Jul-20

Q:
Would it be safe to leave the Halo powered and connecting the micro:bit to USB at the same time for code upload? Is there a fuse or MPPT on the Halo?
Asked by: Bill
A:

Thank you for your question, it would be safe to do so as the micro:bit includes circuitry to make sure it only draws power from one source at a time, generally defaulting to the USB port.



Answered by: Cullen Lewis
18-Jun-20

Q:
Hey, would a power supply rated at 5.5V be harmful?
Asked by: Sats
A:
Hi Sats,

We wouldn't recommend going over 5V. The maximum that the data sheet suggests for the LEDs we use is 5.3V so you might get away with it but you could also very easily burn out your LEDs.

Best Regards

Cullen
Answered by: Cullen Lewis
12-Aug-19

Q:
where can i get the enclosure?
Asked by: tom jenquin
A:
Hi,
We don't actually sell any of the enclosures. my apologies.
Many thanks
Answered by: Rebecca Diamond
07-Jan-19

Q:
Can I use an old USB power supply to power the ZIP Halo with?
Asked by: Claus Heisterberg
A:
Hi Claus,

Thank you for your question, in theory yes. The USB would supply 5V to the board you would need to cut an end off of the USB strip the wire back and then solder onto the power points on the ZIP halo and this should run without a problem.

Best Regards

Cullen
Answered by: Cullen Lewis
29-Oct-18

Q:
Can the zip halo draw power from the microbit itself, via the micro USB?

Or does it need to have its own independent power supply?
Asked by: Satish Patel
A:
Hi Satish, The ZIP Halo needs a voltage supply between 3.5-5V so it wouldn't be possible for the micro:bit to power the board. Instead the ZIP Halo board has been designed so that you power this via the power connections on the board and it then supplies a regulated voltage into the micro:bit directly.
Answered by: Michael Lockhart
26-Jul-18

Q:
How bright is the light, if all are on white, full brightness?

Would it be bright enough for my children to make a reading light?

(They wanted to make a dimmable reading / mood / pattern light to put on wall by their bed)
Asked by: Mark
A:
Hi Mark, When all the LEDs are on full brightness on white you would achieve around 44,400 mCd. So it would be very bright, we would suggest having the brightness turned down to create the mood light you are looking for. As an indication of how bright they are the photo on this page shows 5 of the same LEDs turn up full brightness on white, https://www.kitronik.co.uk/blog/automatic-headlights-for-move-mini The ZIP halo has 24 LEDs in total.
Answered by: Michael Lockhart
27-Mar-18

Q:
If I power the microbit through the Halo it doesn't startup unless I give the microbit power from some other source first, which I can then remove. I read that there is protection in the power supply from the Halo to the BBC:microbit - hwo is this supposed to work?
Asked by: Chris
A:
Hi Chris, There could be a couple of issues that spring to mind but without further details it would be difficult to confirm for sure the problem. As such if you drop an email through to support@kitronik.co.uk with details on what the Halo board is being powered with and where it is connected, what the micro:bit is being powered from to get it to started and that the screws are secure.
Answered by: Michael Lockhart
29-Jan-18
