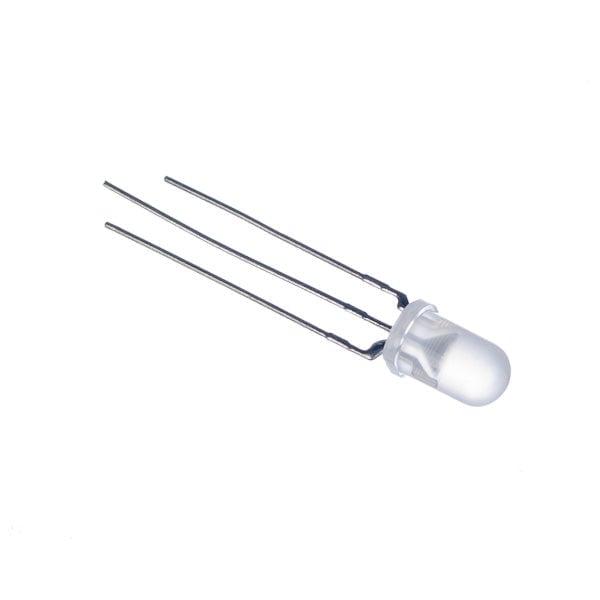

Tri colour 5mm diffused LED - 650mCd

Save 64%
Stock code: 3511-01
filler

Pack Size: Single
Pricing:Ex VATInc VAT
1+
£0.10
£0.12
Was £0.28 £0.34
Stock:
Only 46 units left

Description

No of parallel LEDs:
LED forward voltage: V
Typical LED current: mA
Battery voltage: V
Resistance (calc): Ohms
Preferred value: Ohms
Resistor colour bands:
Enter the operating voltage, click calculate resistor and the resistor value to work with the LED described on this page will be shown.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Q:
How do you wire up a three legged LED?
Asked by: Bob Ashlin
A:

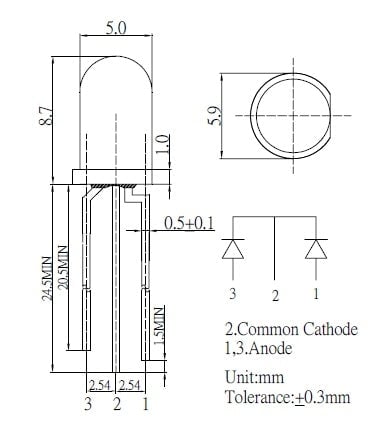

The centre lead of the LED is the common connection and should be taken to 0V. You then connect either or both of the other leads to 2.2V to give you red, green or orange. If you are using 5V or a different supply voltage you will need to add a current limit resistor. If you are only doing red or green at a time and not putting both on to get orange, then you can put the resistor between the common centre lead and 0V. If you want to turn both the red and green elements on at the same time then you should put a resistor in each lead. To work out the resistor use the calculator to the left of this comment.
Answered by: Geoff Hampson
09-Mar-12
