RGB 5mm Diffused LED - 60deg - 1000mCd - Cmn Cathode

Stock code: 35125

Pricing:Ex VATInc VAT
1+ £0.50
(excl. VAT)
(inc. VAT)
10+ £0.40 £0.48
100+ £0.35 £0.42
500+ £0.30 £0.36
In stock


Lens Type Diffused.
Viewing Angle 60 degrees.
Forward Voltage Drop (Red) 1.9V to 2.3V.
Forward Voltage Drop (Green) 2.9V to 3.3V.
Forward Voltage Drop (Blue) 2.9V to 3.3V.
Luminous Intensity (Red) 800mCd to 1200mCd (@20mA).

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.


  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Could you give me the typical I(F) current of this RGB diode?
Asked by: Dr. Hegedűs János
I have double checked for you and the typical current for this LED is 20mA.
Answered by: Cullen Lewis

is this LED programable if so how would i program it.

i'm trying to make a lamp for an NEA and i'm planning to make it so the buyer would be able to program it
Asked by: cameron phillips
Hi Cameron, Yes you would need to use a microcontroller to turn the LED and set the colour. We use this RGB LED in our
Inventor's Kit for the BBC micro:bit, you would simply instruct the microcontroller to determine how bright each colour within the RGB LED is. For instance if you wanted solid Red, you would send a voltage through the leg connected to the Red section of the LED. For Yellow, you would send an equal voltage through both the Green and Red legs.
Answered by: Michael Lockhart

Is there a PDF file on this product that gives connection details etc?
Asked by: Peter Francis

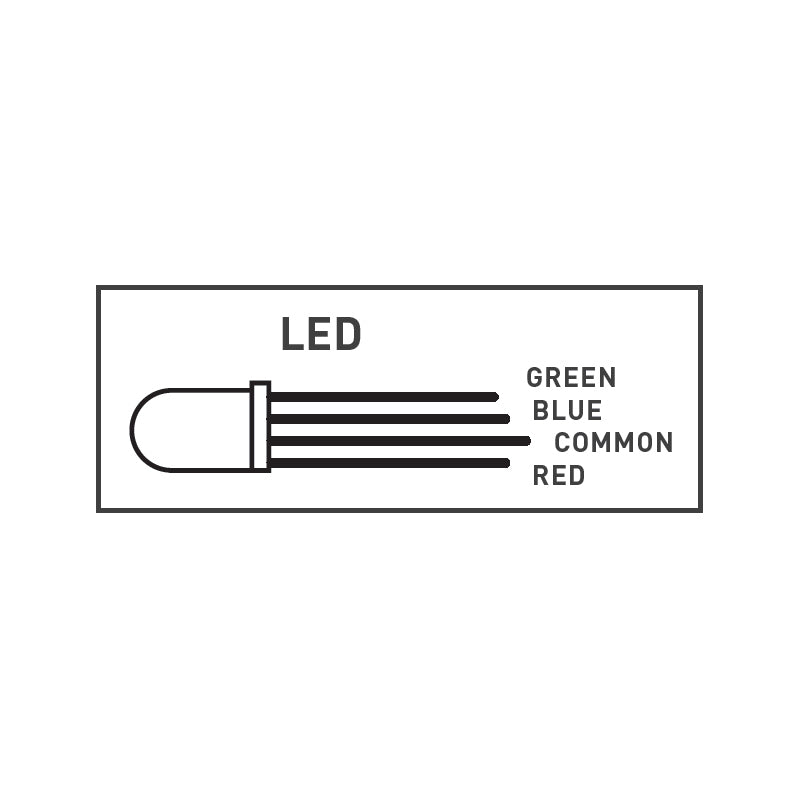

I have spoken to people our side and we are adding an image to show the pins and how they connect to the LED.
Answered by: Cullen Lewis
