Description
This kit allows you to illuminate the edge of a picture frame using a number of LEDs. This happens for a period of time when the button is pressed. The duration is set using a trimmer potentiometer and can be anything from a few seconds to 30 minutes. The student can choose which LEDs they would like to use. These are connected to the terminal block (along with a current limit resistor). The board can drive 200mA, which is about 10 high brightness LEDs.

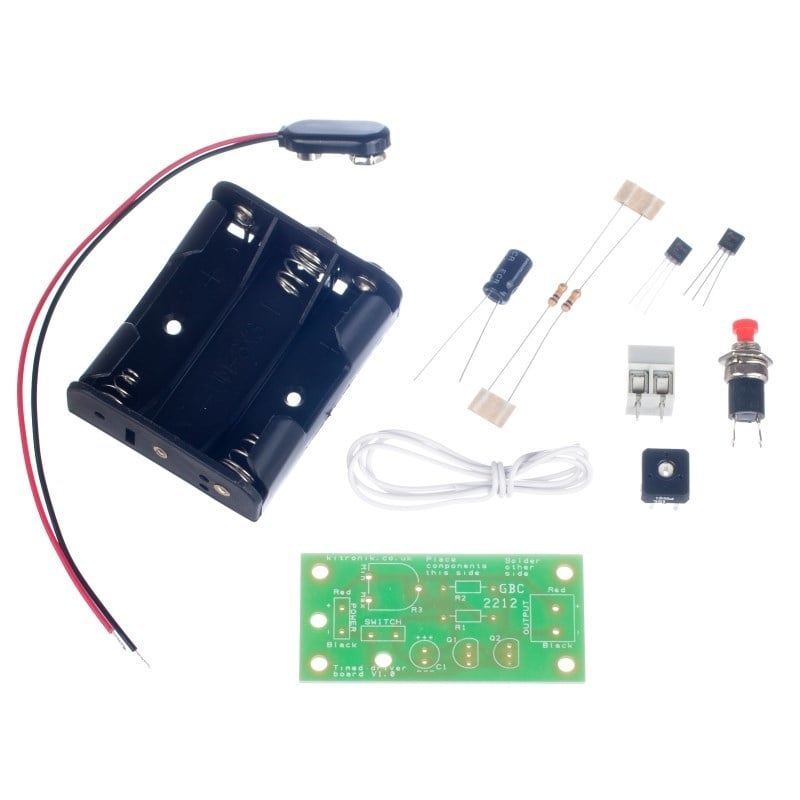

This kit includes:
- 1 x PP3 Clip lead
- 1 x Battery holder (3x AA)
- 1 x Terminal block (2 way)
- 1 x Push to make switch
- 1 x Capacitor, electrolytic, 16V, 220uF
- 1 x 10M Pot
- 2 x 10K resistor 5%
- 2 x N channel FET (2N7000)
- 1 x 0.5 metre length of single core wire
- 1 x Picture frame LED driver PCB
PCB dimensions: 58mm x 28mm.
This kit is supplied as a pack of parts and requires soldering.
Click here to download the essential information
Click here to download the full teaching resources
Selecting LEDs for using with the circuit.
The circuit can be used with a variety of LEDs. Below are a selection of LEDs that can be used. Also listed is the current limit resistor that will be required if four LEDS are used.
Free samples:
Teachers can order a sample of this kit (one per school) request a sample kit.
You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2146.
Note: this service is only offered to schools for evaluation purposes only.
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What is soldering? Soldering is a...
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What...
Q:
what current limit resistor would I need to power 6 standard white LED,s?
A:
Hi Craig, We have a number of different white LEDs however if you want to use the 3542, which is a 5mm standard diffused LED then 6 of these in parallel would need a 15 Ohm resistor based on a 4.5V supply input.
Answered by: Michael Lockhart
14-Mar-18
Q:
Hi there is it possible to use an ir sensor instead of the push switch so that if i walk past at night it will turn itself on. if so please point me in the right direction.
Asked by: Terry Meade
A:
We sell a PIR detector but if you are looking to use it you would be better off designing your system using a microcontroller like an Arduino Uno instead of using this LED picture frame kit. http://www.kitronik.co.uk/products/sparkfun-electronics-products/add-on-modules/pir-motion-sensor/ .
Answered by: Aaron Sturman
23-Oct-13
Q:
Hello, Our Yr 8 students are designing and making picture frames this next year and your picture frame illumination kit may well be of intyerest to some of them. Would it be possible to get a sample so that we can make up a demonstration model for them please? Thanks, Myke
Asked by: Myke Pocock
A:
Yes it is possible for schools to request a free sample of this kit. The easiest way to do this is to fill in the online form which can be found by clicking on the samples icon (the PCB) in the product description or by navigating on the top menu to services > samples.
Answered by: Geoff Hampson
27-Jun-12
