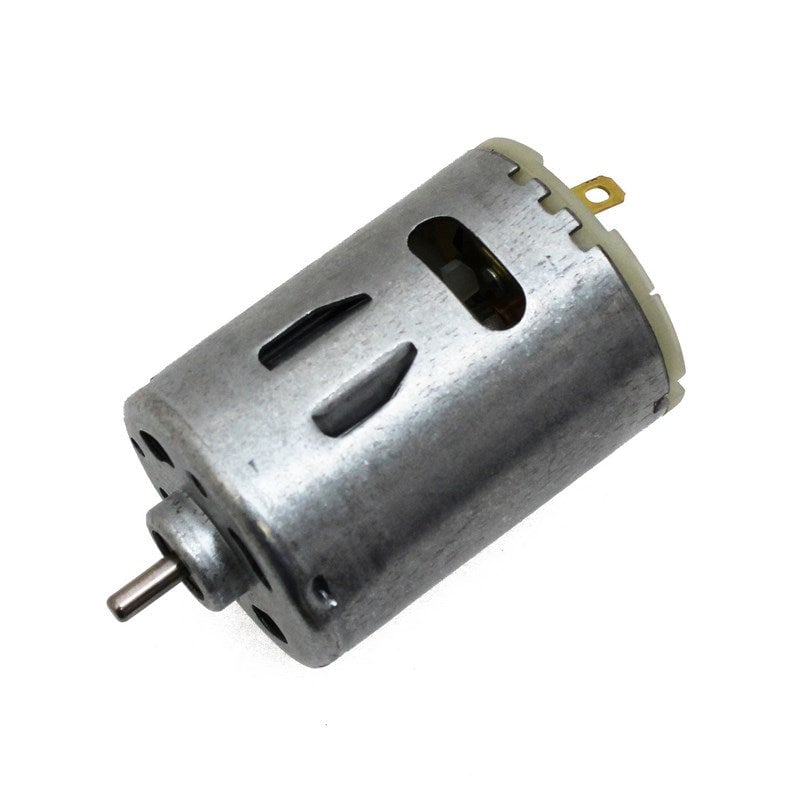

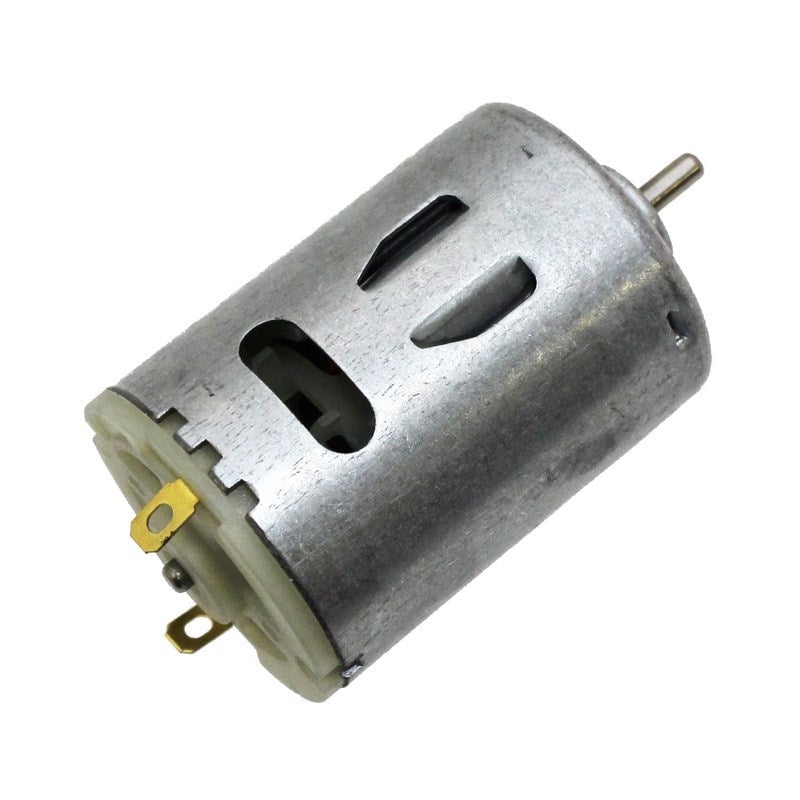

HS540 High Torque Motor

Stock code: 2557
filler

Pricing:Ex VATInc VAT
1+
£2.95
£3.54
Stock:
In stock

Description

AttributeValue
Length 50mm.
Diameter 35.8mm.
Axle Length 9mm.
Axle Diameter 3.2mm.
Operating Voltage 6V - 12V.
Typical Speed 19500RPM.
Typical Current 4.7A.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Q:
does this produce power
Asked by: craig
A:
Hi Craig, Thank you for your question, I assume you mean using this much like a wind turbine so when the propeller turns it will generate some current and voltage but not loads and it would need reasonable force to turn it. Best Regards Cullen
Answered by: Cullen Lewis
21-Jan-20

Q:
Can you recommend some 12 volt batteries to use with this motor to get the best speed and performance that you or any other retailer sell?
Asked by: David
A:
Hi David, We only have 1 12V battery, however it has a low capacity so wouldn't be great for high current draw items. The motor can run on a voltage between 6-12V, so you could use 4XAA batteries to give 6Vs, a 9V battery or even a 12V mains power supply. Looking at the datasheet the manufacture has performed tests from a 7V supply, which at maximum efficiency gives an RPM of 17512. If you are wanting to use 12V however you can perform calculations here to find out the maximum efficiency at 12V, http://simplemotor.com/calculations/
Answered by: Michael Lockhart
08-Dec-17

Q:
Where can I find the mounts for this product?
Asked by: harjee
A:

Hi Harjee, Currently we don’t stock a mounting bracket/clip for this motor. We do stock a mounting clip which can be used with another high torque motor, https://www.kitronik.co.uk/c2507-motors-high-torque.html https://www.kitronik.co.uk/2505-plastic-motor-mounting-clips-pack-of-10.html

Answered by: Michael Lockhart
30-Jan-17

Q:
I bought a power supply that is 12v 5a DC, however when I connected the wiring the motor was pulsing and not spinning consistently. Why is this?
Asked by: John
A:

Hi John, It sounds like when the motor is initially turned on there is a spike in the current it draws, this then causes the power supply to shutdown to protect the circuit from overload. It will then detected that the current spike has gone and apply power again. This would then result in the pulsing motor you have described. However it is slightly difficult to recommend a fix as we don’t know what other circuitry you are using and how the motor is connected.

Answered by: Michael Lockhart
09-Dec-16
