| Pricing: | Ex VAT | Inc VAT |
| 1+ | £1.80 (excl. VAT) | £2.16 (excl. VAT) |
| Was | £2.80 | £3.36 |

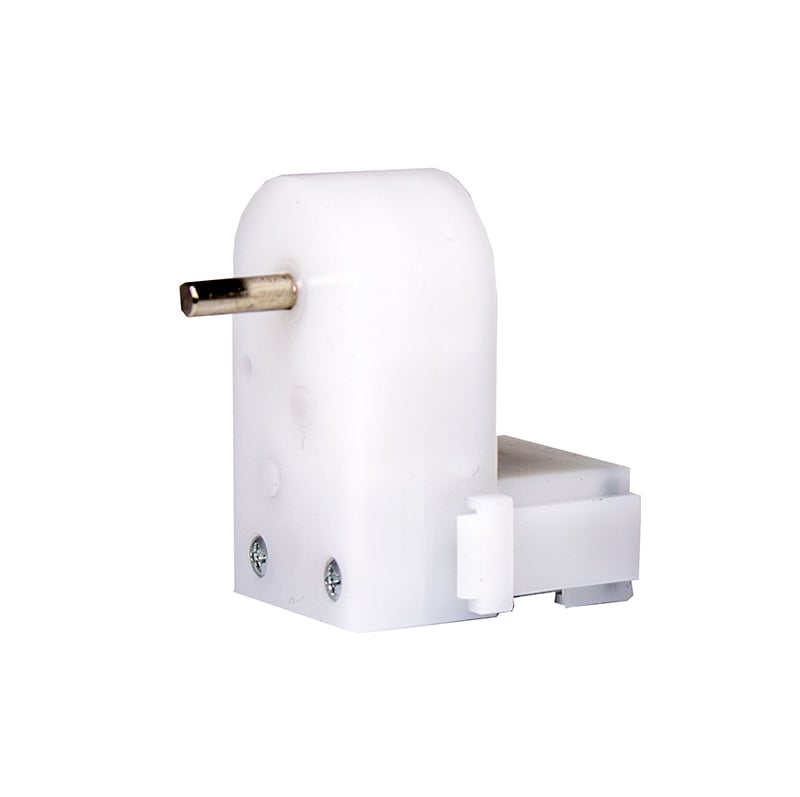

These compact plastic brushed DC gearmotors offer a lower cost alternative to metal gearmotors, while still being well made. They are ideally suited for use in small robots as they only weigh 19g and are intended for operation at 4.5 V, though they should run comfortably in the 3 V to 6 V range.
| Attribute | Value |
|---|---|
| D style output shaft | D 3mm, L 9mm. |
| Weight | 19g |
| Length | 36.5mm. |
| Width | 27.5mm. |
| Height | 20mm. |
| Voltage range | 3V – 6V. |
| Typical operating voltage | 4.5V |
| Stall current | 800mA. |
| Free-run speed @ 4.5V | 150 rpm. |
