Klaw

Note: The Klaw has been redesigned to fit both :MOVE minis and released as a new version. You can find the new and improved Klaw Robotic Gripper MK2 here.

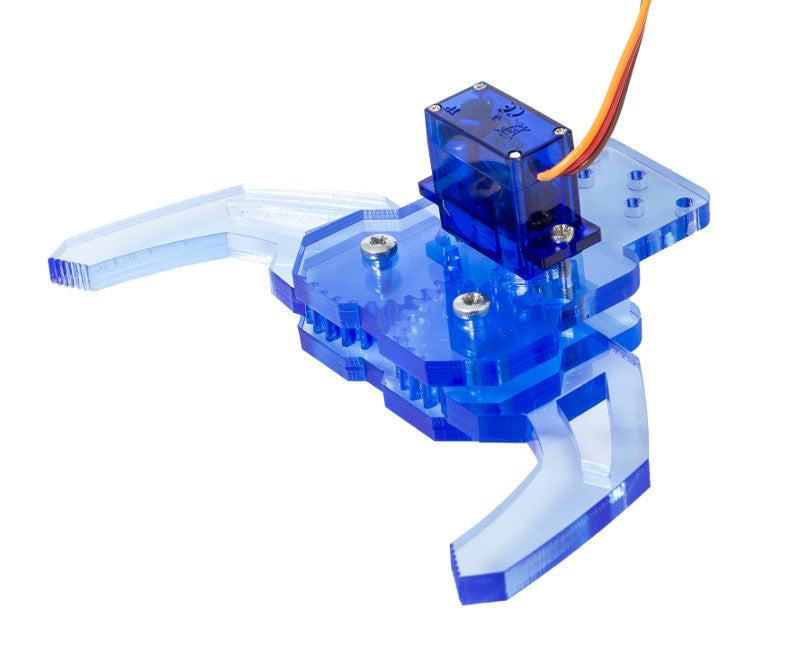

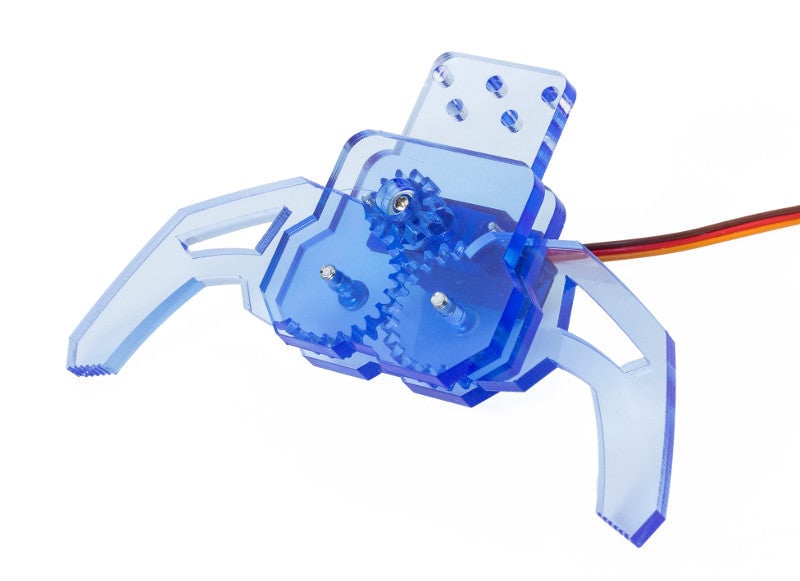

The Kitronik ‘Klaw’ gripper is a great addition to any robotics project. It is controlled by a low voltage servo which is included, this servo is used to open and close the Klaw.

At the rear of the unit are mounting points allowing it to be bolted to other items, such as buggies or robotic arms. Supply voltage: 3V to 6V. Supplied as a set of parts that require simple assembly, see the resources section below for build instructions.

Features:

• Easily add a gripping Klaw to any robotics project.
• Servo powered opening and closing with the servo included as a part of the kit.
• Easy to assemble.

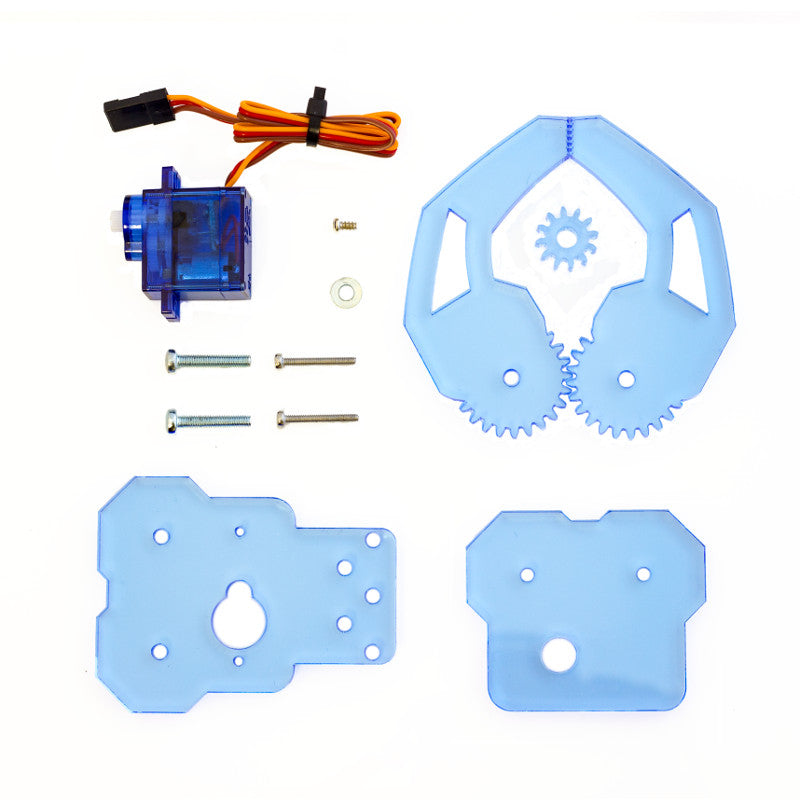

Contents:

• 1 x Mini 180 Degree Servo With Accessories.
• 5 x Laser Cut Perspex Parts.
• 1 x M3 Steel Washers.
• 2 x M3 x 16 Pozi PanSteel.
• 2 x M2 x 16 Pozi PanSteel.

Dimensions:

• Closed Length: 85mm.
• Closed Width: 70mm.
• Open Length: 45mm.
• Open Width: 125mm.
• Height w/servo: 38mm.

Video:

Requires:

• Screwdriver.

Resources:

• Assembly Instructions.
