This tiny board is an easy way to use Toshiba’s TB6612FNG dual motor driver, which can independently control two bidirectional DC motors or one bipolar stepper motor. A recommended motor voltage of 4.5V to 13.5V and peak current output of 3A per channel (1A continuous) make this a great motor driver for low-power motors.

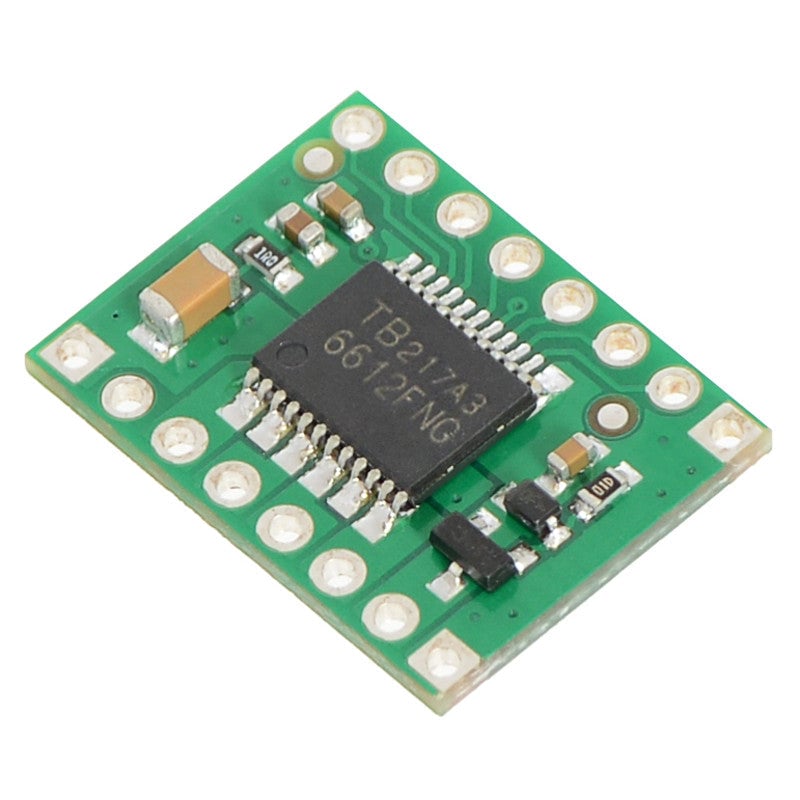

The TB6612FNG is a great dual motor driver that is perfect for interfacing two small DC motors such as micro metal gearmotors to a microcontroller, and it can also be used to control a single bipolar stepper motor. The MOSFET-based H-bridges are much more efficient than the BJT-based H-bridges used in older drivers such as the L298N and Sanyo’s LB1836M, which allows more current to be delivered to the motors and less to be drawn from the logic supply (the LB1836 still has the TB6612 beat for really low-voltage applications). The little breakout board gives you direct access to all of the features of the TB6612FNG and adds power supply capacitors and reverse battery protection on the motor supply (note: there is no reverse protection on the Vcc connection).

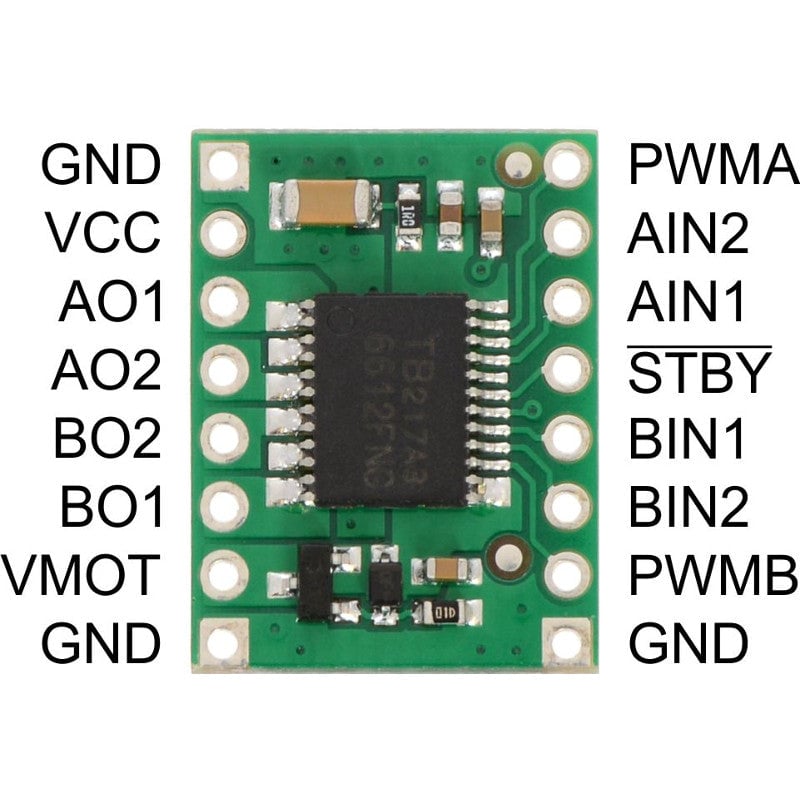

In a typical application, power connections are made on one side of the board and control connections are made on the other. All of the control inputs are internally pulled low. Each of the two motor channels has two direction control pins and a speed control pin that accepts a PWM input with a frequency of up to 100kHz. The STBY pin must be driven high to take the driver out of standby mode.

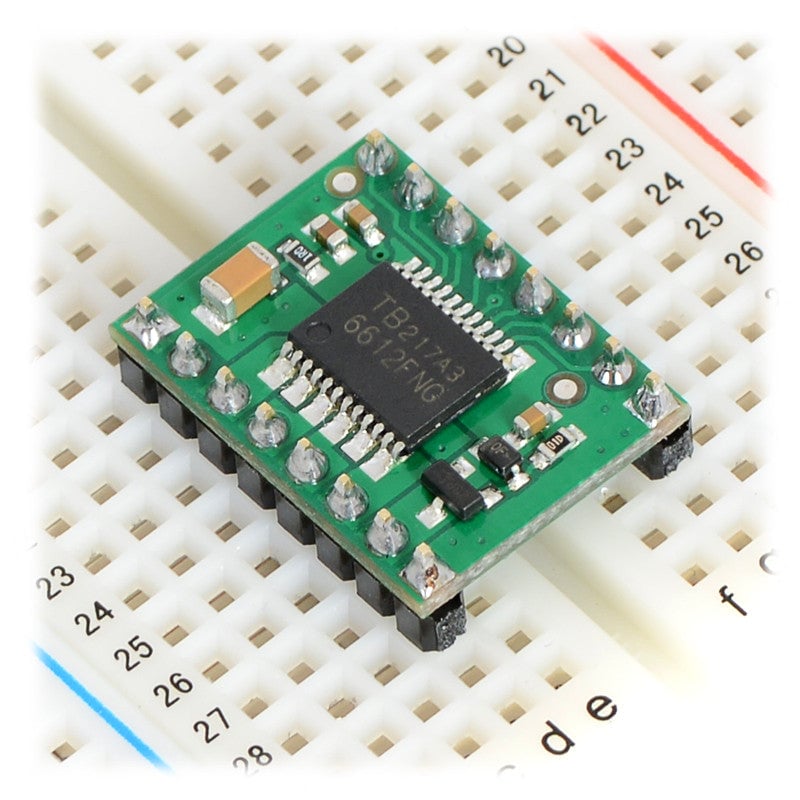

The distance between the header rows on the PCB is 2.54mm smaller than a standard 15.24mm DIP package, but the pin spacing allows it to conveniently fit in 2.54mm breadboards and perfboards.
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor.
- Built-in thermal shutdown circuit.
- Filtering capacitors on both supply lines.
- Reverse-power protection on the motor supply.
- Can be used to control the N20 50:1, N20 298:1 and Plastic gearmotors.
- 1 x TB6612FNG dual motor driver.

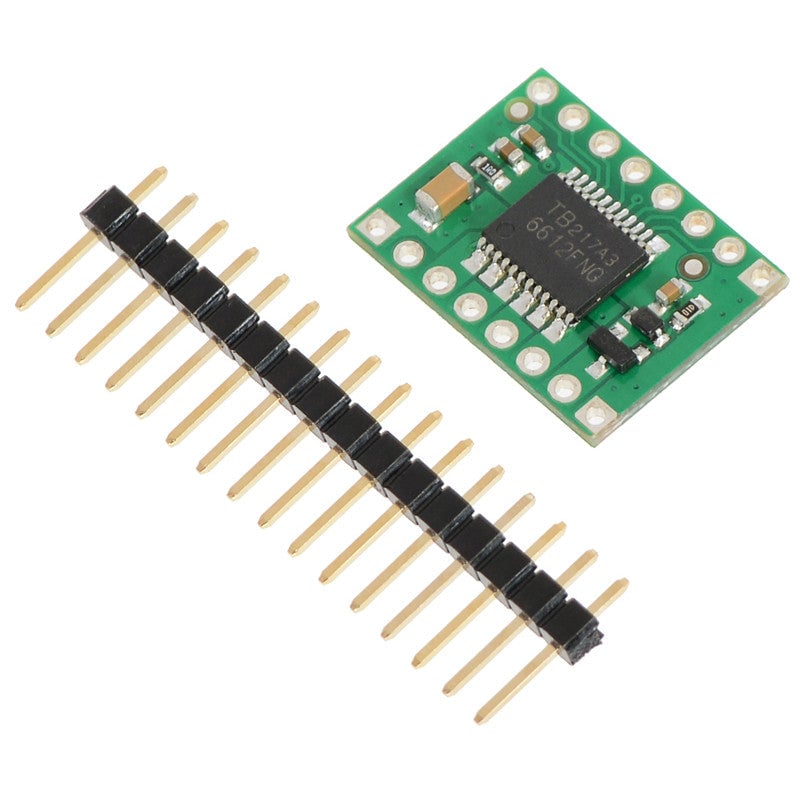

- 1×16 2.54mm male header strip.
- PCB Length: 20.32.
- PCB Width: 15.24.
- The TB6612 motor driver used on the carrier board has a peak current rating of 3A per channel. The peak ratings are for quick transients (e.g. when a motor is first turned on), and the continuous rating of 1A is dependent on various conditions, such as the ambient temperature. The actual current you can deliver will depend on how well you can keep the motor driver cool. The carrier’s printed circuit board is designed to draw heat out of the motor driver chip, but performance can be improved by adding a heat sink.
