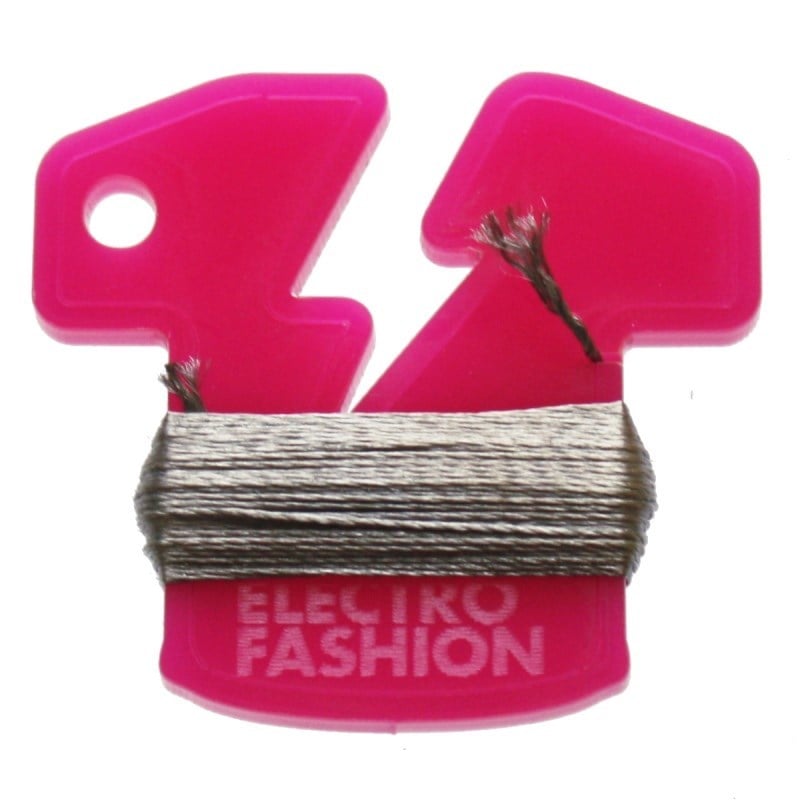

Electro-Fashion, Conductive Thread, 6m

Name: Electro-Fashion, Conductive Thread, 6m
Brand: Kitronik Ltd
SKU: 2727
Price: 3.36 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

Stock code: 2727

filler

Pricing:	Ex VAT	Inc VAT
1+	£2.80 (excl. VAT)	£3.36 (inc. VAT)

Stock:

In stock

Quantity:

Quick links

Share this product

Buy locally from a partner

Country:

Product versions:

Stock code

Description

2722

Conductive Thread, 50 yards / 45m

2724

Conductive Thread, 2m

2744

Conductive Thread, 250m

Product description:

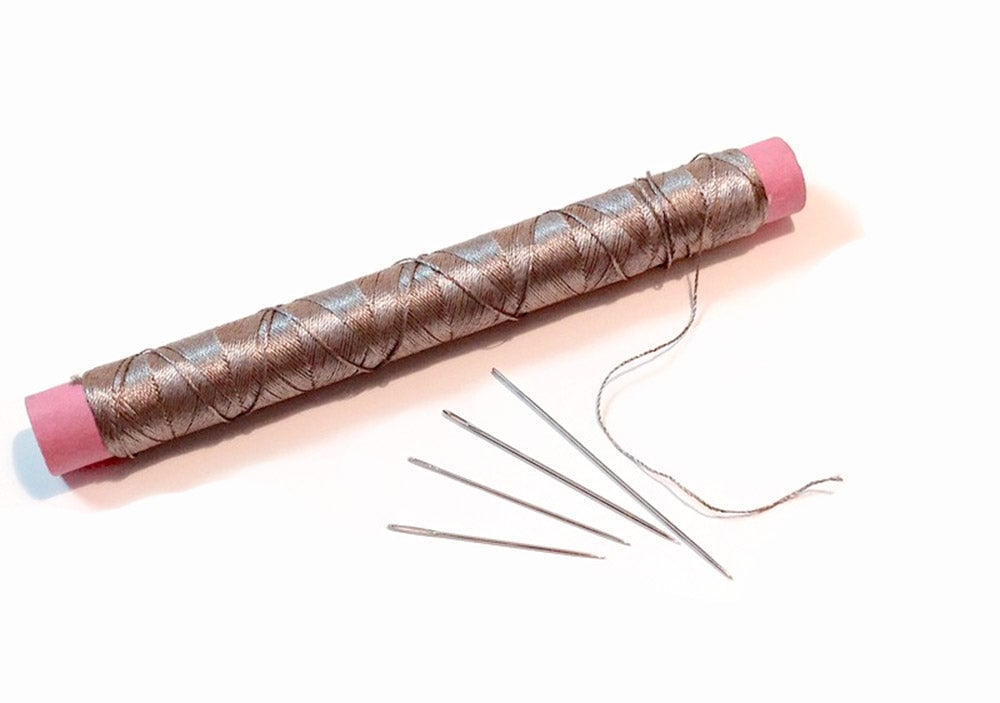

This is Kitronik's very own Electro-Fashion® branded Conductive Thread and we think it is among the best conductive thread available. It is perfect for hand sewing and can also be used on the bottom bobbin of a sewing machine (this will require the thread to be wound on to the smaller bottom bobbin first).

Conductive thread can be used like conventional sewing yarn, however it electrically conducts allowing electronics to be integrated into textiles. This makes it ideal for use in a range of e-textile applications.

The thread is nano plated with silver to make it conductive. The conductive thread has a generally low resistance but it does vary. We have measured between 40 and 160 ohms per meter, depending on the tension the thread is under. Once sewn the resistance is typically in the middle of this range. Over time the silver plating will degrade particularly if washed and we have measured in excess of 280 ohms on some of our older examples.

Resistance does not vary significantly from one length of thread to the next, so you should be able to use this thread without concern for "dead" sections.

The conductive thread has a breaking strain of around 9.3 pounds (4.2 kilos). It comprises roughly 96 individual filaments, each coated with a micron-thick layer of natural silver. This plating of the yarn is done in Europe to ensure as high a quality finish as possible. In construction, 16 of these filaments are wound together to form an initial twist; two of these twists are then twisted together, and finally three of these twists are combined to form the finished thread. The conductive thread is approximately 18 denier. It is heavier than a regular sewing thread, but not as heavy as an upholstery thread. It can be sewn on most domestic sewing machines using either a regular needle or the next size up. This thread does not fray.

Features:

No (or very low) fray.
Resistivity = approximately 80Ω per metre (24.4Ω per foot).
Count = 875 dTex.
Strength 3000 cN.
Elongation at break = 37%.
Twist = 240Z-380S.
