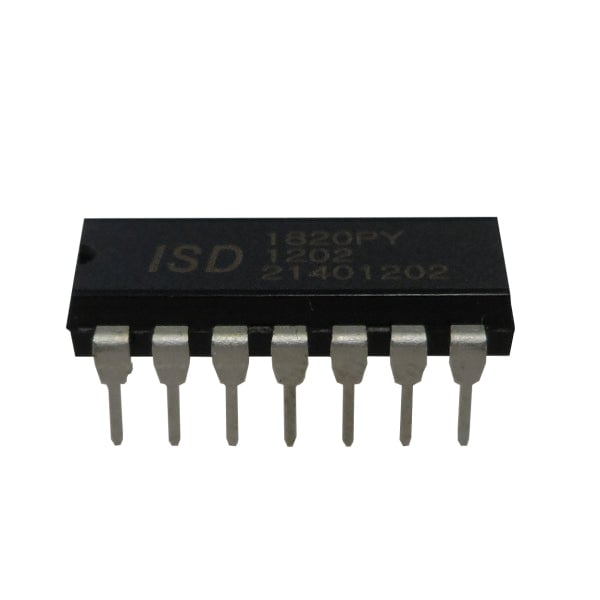

The ISD1800 provides high quality, single-chip, single message, record/playback solution. It allows for user selectable durations of between 6 and 16 seconds. Other features on this CMOS chip include an on-chip oscillator (with external control), microphone pre-amp, automatic gain control, anti-aliasing filter, multilevel storage array, smoothing filter, and speaker amplifier.
Recordings are stored in on-chip non-volatile memory cells, providing zero-power message storage. This unique, single-chip solution is made possible through patented multilevel storage technology. Voice and audio signals are stored directly into memory in their natural form, providing high-quality, solid-state voice reproduction.
Additionally, there is an on-chip 8ohm speaker driver, 100 year unpowered message retention, it will typically allow for up to 100,000 record cycles, and at the end of playback/record the chip will automatically return to a low power standby mode. For full electrical characteristics, please refer to the datasheet.
- Easy-to-use single-chip, single-message voice record/playback solution.
- High-quality, natural voice/audio reproduction.
- Push-button interface.
- Variable record/playback duration controlled by external resistor selection.
- Automatic power-down mode.
- On-chip 8Ω speaker driver.
- Zero-power message storage.
- 100-year message retention (typical).
- 100,000 record cycles (typical).
- On-chip oscillator.
- No algorithm development required.
- Single +3 volt power supply.
- 1 x Record playback IC.
For full technical drawings, please refer to the datasheet.
