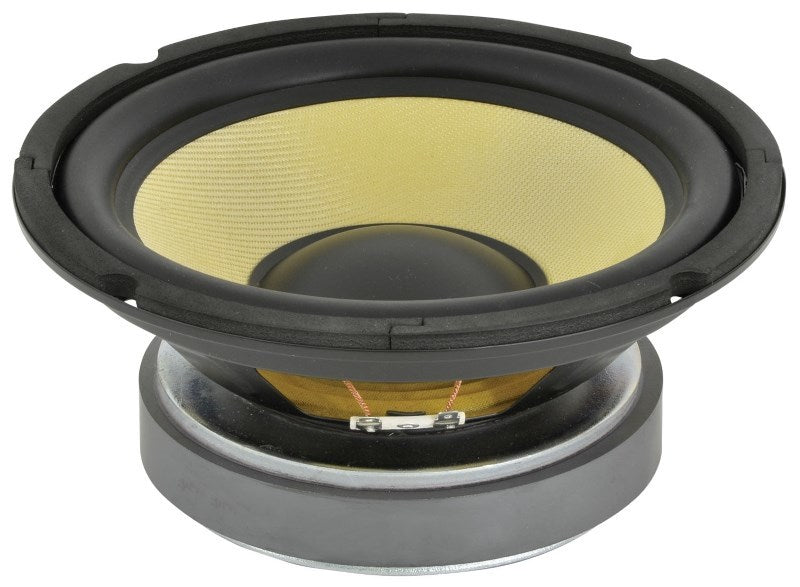

250W 8 Ohm 200mm Kevlar Cone Woofer

Stock code: 3325
filler

Pricing:Ex VATInc VAT
1+
£16.91
£20.29
Stock:
Discontinued - This page is for reference for existing customers of this product. It is not possible to buy this item.

Description

AttributeValue
Height 100mm.
Diameter 200mm.
Impedance 8 Ohms.
Frequency Response 27Hz - 6kHz.
Volume (SPL @ 1W/1m) 85.5dB.

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate click here.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

  • For information about all of the delivery options we offer click here.
Q:
Would this work with the high power amp and crossover? You mention with the high powered amp it would not work to its full potential. What is the best way to get the most from this woofer paired with a tweeter. Using this for a portable speaker project. Thanks
Asked by: Gino
A:
Hi Gino,

Thank you for your email, these would work with the High Power Amp and Cross over but as mentioned not to their full potential. The speakers are rated to 250W and the kit only to 15W so it would be a bit like putting a teacup of water in a large basin. You can do it but you are not actually really making effective use of the equipment. The way you would get more use out of it is to have a higher rated Amplifier project e.g. around the 250W mark.

Best Regards

Cullen

Answered by: Cullen Lewis
16-Aug-19

Q:
Will this be able to function properly when the front part is exposed to flowing gases at 100 to 300 degree Celsius? Planning to buy for an experiment.
Asked by: John Rey Barcelona
A:
Hi John,

I would not expect the kit to survive that heat and would not recommend exposing it to those conditions.

Best Regards

Cullen
Answered by: Cullen Lewis
20-Jun-19

Q:
Would this work with the high power amp kit
Asked by: Yusuf Nawaz
A:
Hi Yusuf, You could use this with the high powered amp kit, but you wouldn't use it to the full potential. Also this is a woofer speaker, so is designed to handle low frequency sound.
Answered by: Michael Lockhart
29-Jan-18

Q:
Could this be wired to a car audio system?
Asked by: Tom Brogan
A:

This would depend on the specification of the car audio system that you were looking at putting the woofer in.

Answered by: Michael Lockhart
01-Jul-15

Q:
Have you got a power supply kit that will provide enough power for this woofer?
Asked by: Tom Brogan
A:

The woofer doesn’t require a power supply as the power required to move the speaker is forced through from the amplifier. If you use our high powered amp kit at with this woofer at best you will still only get 30W as that is the maximum the amplifier kit can produce, In reality less than this because half the power output will be high frequencies that the woofer can’t deal with.

Answered by: Michael Lockhart
30-Jun-15

Q:
What else would i need to buy alongside this cone to make a high quality powerful speaker?
Asked by: Brannon
A:
In order to get a good frequency response from your speaker you would want the woofer on this page to take care of the low frequencies and a tweeter to take care of the higher frequencies giving a good output across the range. Unfortunately it isn't as straightforward as just connecting a woofer and a tweeter to the output of your stereo. What needs to happen is that the audio is split up and the high frequency component goes to the tweeter and the low frequency component goes to the woofer. This is in actual fact easy to do and just requires the use of a crossover. The crossover has a pair of input connections that come from the stereo and then a connection to go to the woofer and one to go to the tweeter. On simple crossovers the cut off frequency is fixed, on more complicated crossovers there is the option to set the frequency at which the the signal goes to the woofer or tweeter so the response of the two speakers can be best catered for.

So in order to answer your question in addition to the woofer you would need a tweeter and a cross over.
Answered by: Geoff Hampson
09-Oct-14
