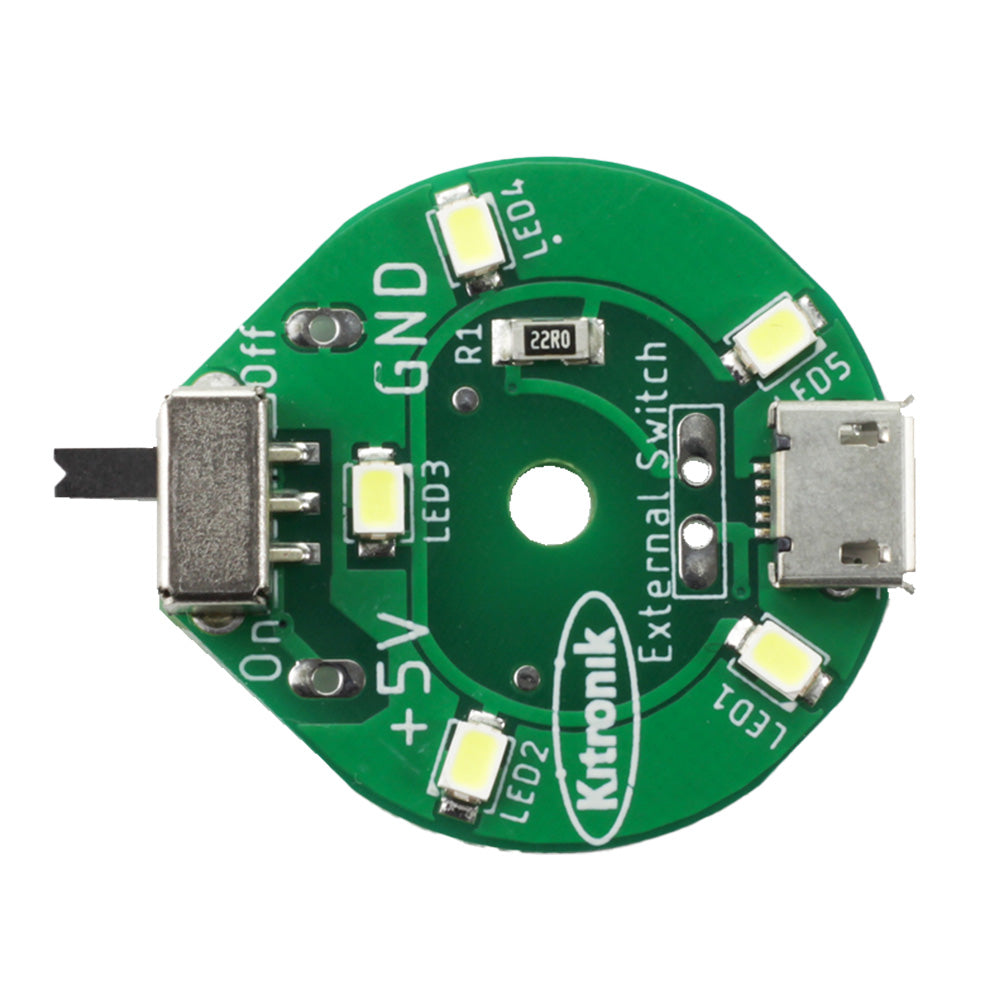

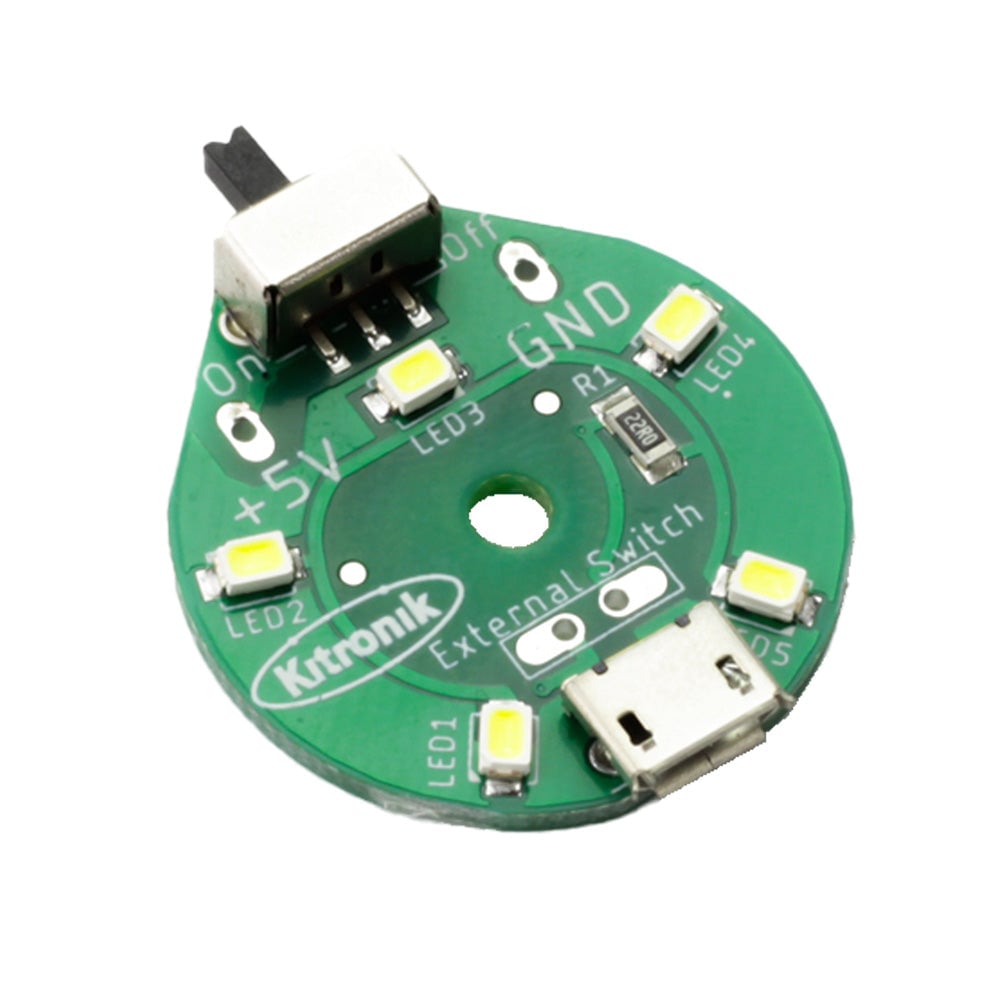

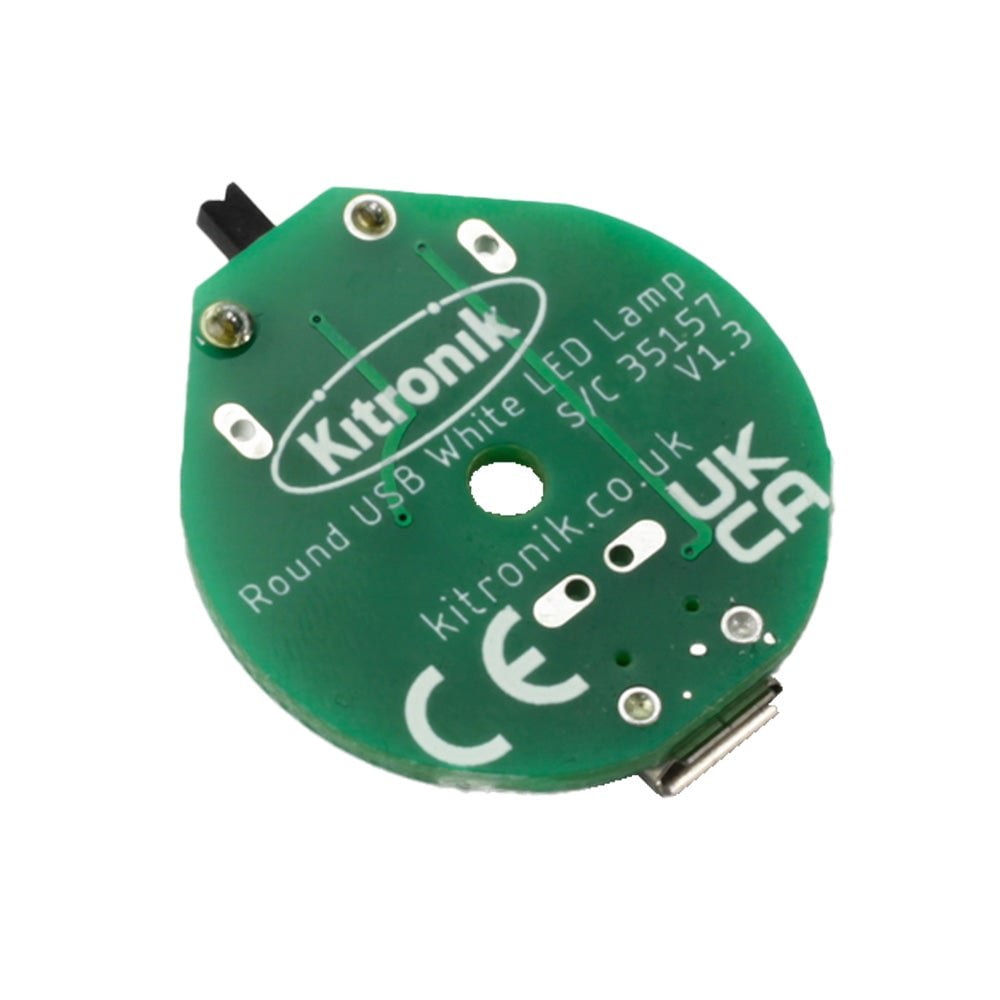

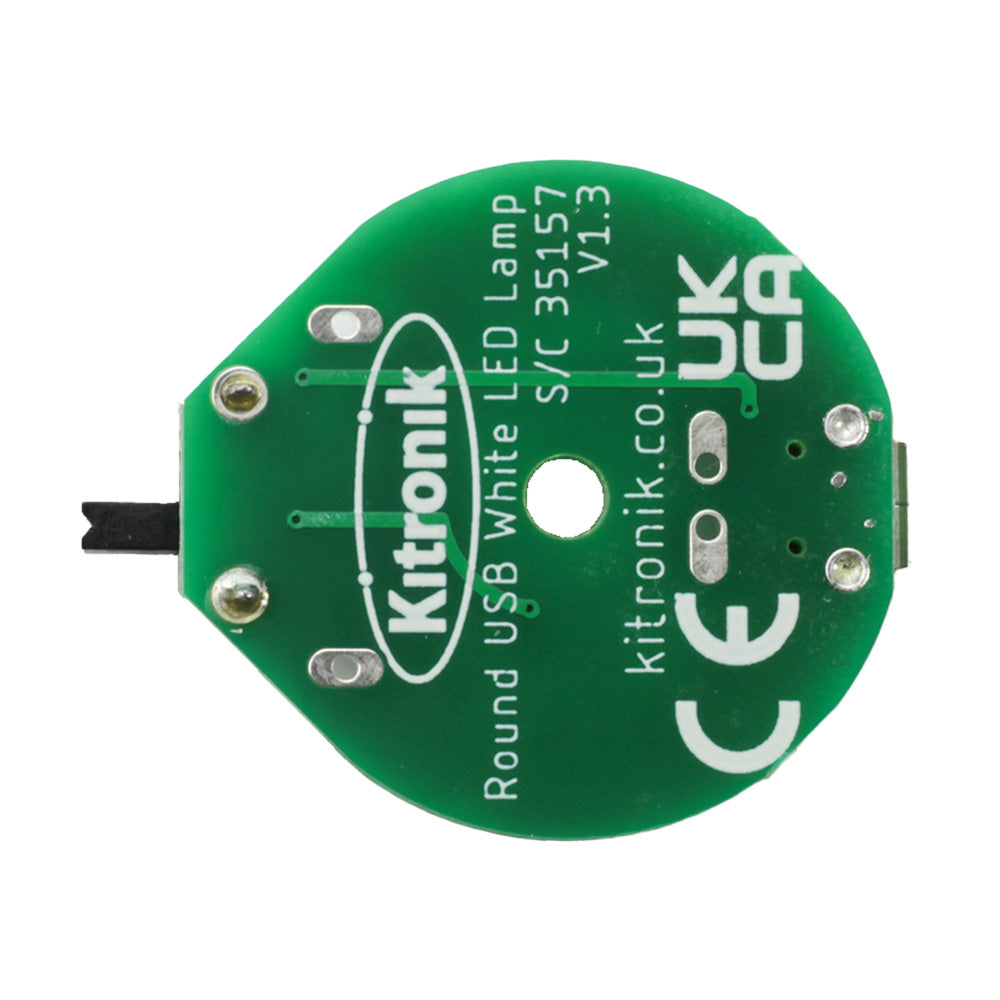

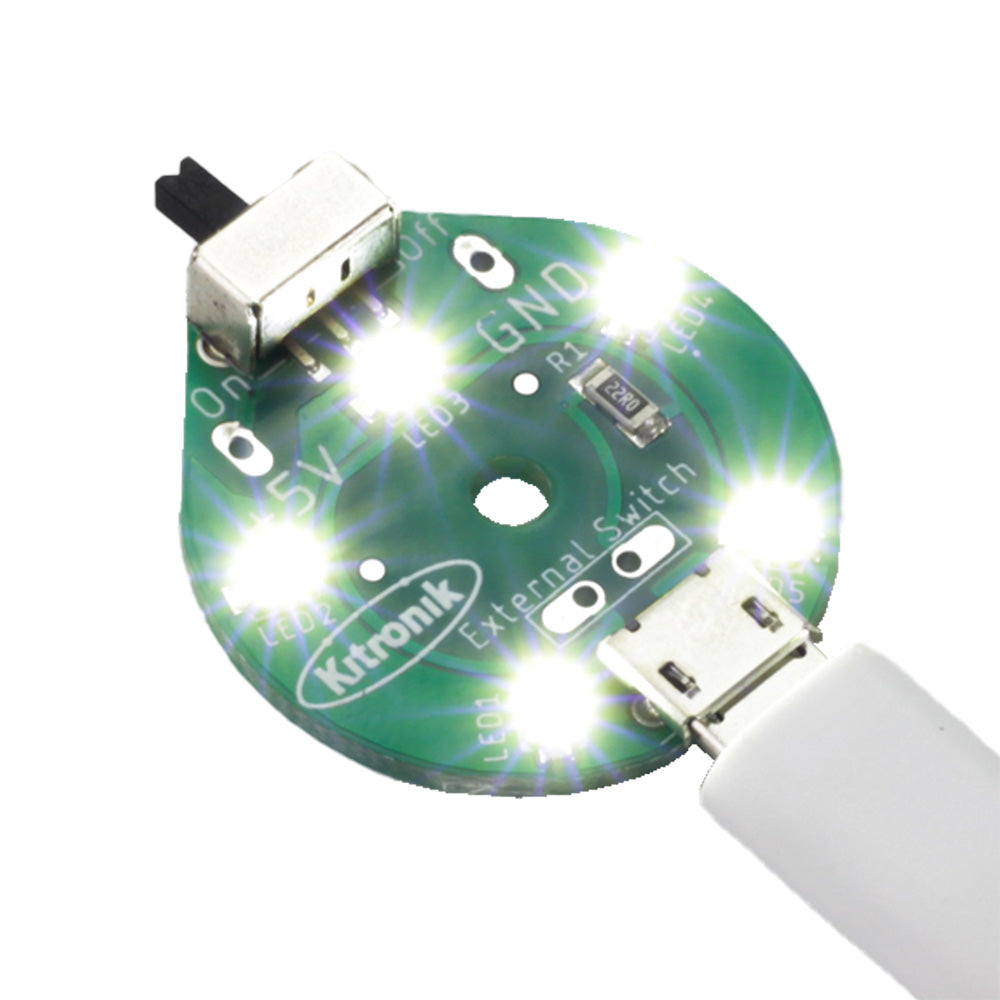

The Round USB White LED Lamp features 5 LEDs and is designed for low-power lightings, such as desk lamps or torch lights. Its discreet size and circular layout make it a great choice for creative lighting enclosures.
The board is designed to be within the supply rating of a computer USB port (under 100mA). This means you can power it conveniently from a computer/laptop or a suitable 5V power supply.
The PCB is designed to fit inside a 28mm square area with the switch positioned prominently so it is easy to access. In the centre of the board is a single M3 mounting hole. The 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole.
The onboard switch can be used to turn on/off the LEDs. An additional switch can be connected in parallel with the PCB switch to allow remote mounting within an enclosure. When using a remote switch the PCB-mounted switch should be left switched to ‘Off.
- This is a low-power (under 100mA) round LED lamp that can be used in enclosure designs.
- The 5 LEDs are evenly set on a 72°degree separation from each other, from the centre mounting hole.
- There is an onboard on/off switch.
- It also features pads for connecting an additional optional switch that can be mounted on your enclosure as well as pads for connecting an alternative 5V power supply.
- If using an additional switch, the onboard switch is disabled by leaving it in the off position.
- It features a single M3 (3.3mm) mounting hole at its centre.
- It features a micro USB power connector and can be powered by a computer or a suitable 5V power supply.
- 1 x Round USB White LED Lamp with on/off switch.
- Max Height: 4mm.
- Max Diameter: 28mm.
- Mounting Hole Diameter: 3.3mm (M3)
This product is designed and manufactured in the UK by Kitronik.
