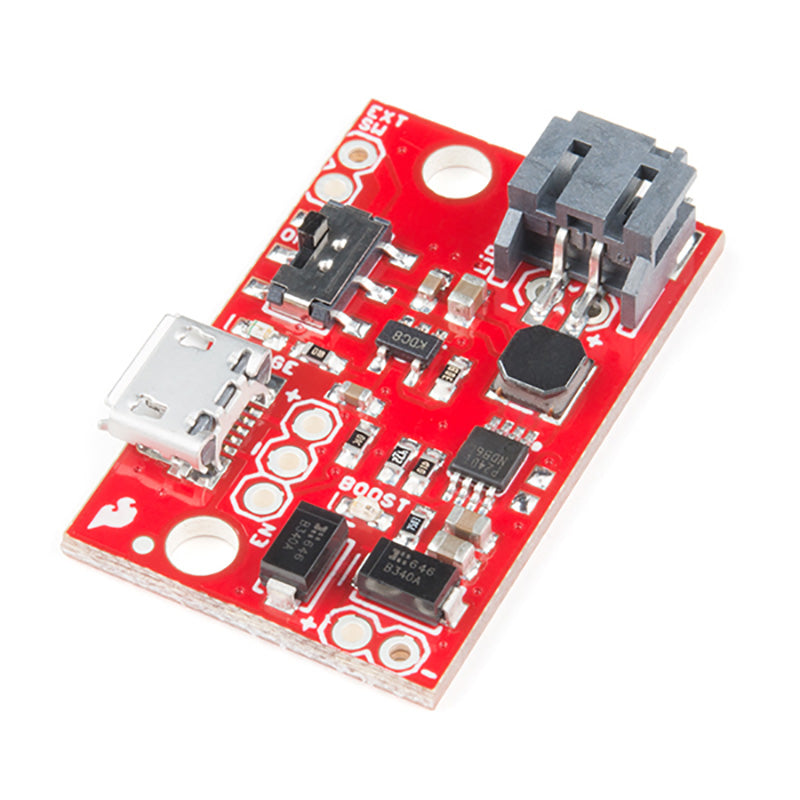

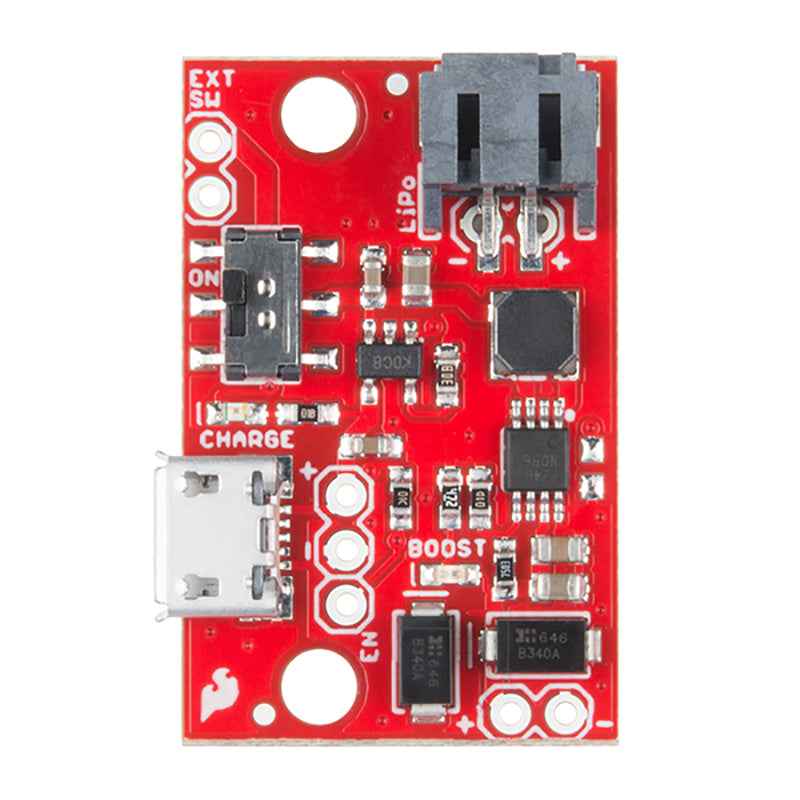

The SparkFun 5V/1A LiPo Charger/Booster is a no-nonsense circuit for generating one amp from a Lithium Polymer battery at 5V. This LiPo charger is a very economical choice that is equipped with a simple booster circuit utilizing the PAM2401 IC, and includes protection diodes so you can run multiple cells in series for an extra kick. While the booster circuit is in operation, this board can draw more current the lower the input voltage, making it perfect to deliver a strong charge in a small amount of time.
The circuit is constructed by feeding an MCP73831 charge controller IC to the LiPo port, and to the input of a PAM2401 boost controller. Multiple connection types are provided for the battery, charge source and switch to allow flexibility of application, and two LEDs provide feedback on system status. If you need more than 5V out of your project, the SparkFun LiPo Charger/Boosters can also be daisy-chained together to get a bigger bang for your buck.
This board does not possess any undervoltage or other battery protection features. So, we do recommend that you use it only with batteries with a built-in protection circuit.
- Charger, microUSB, 500mA.
- Booster, 5V, 1A output.

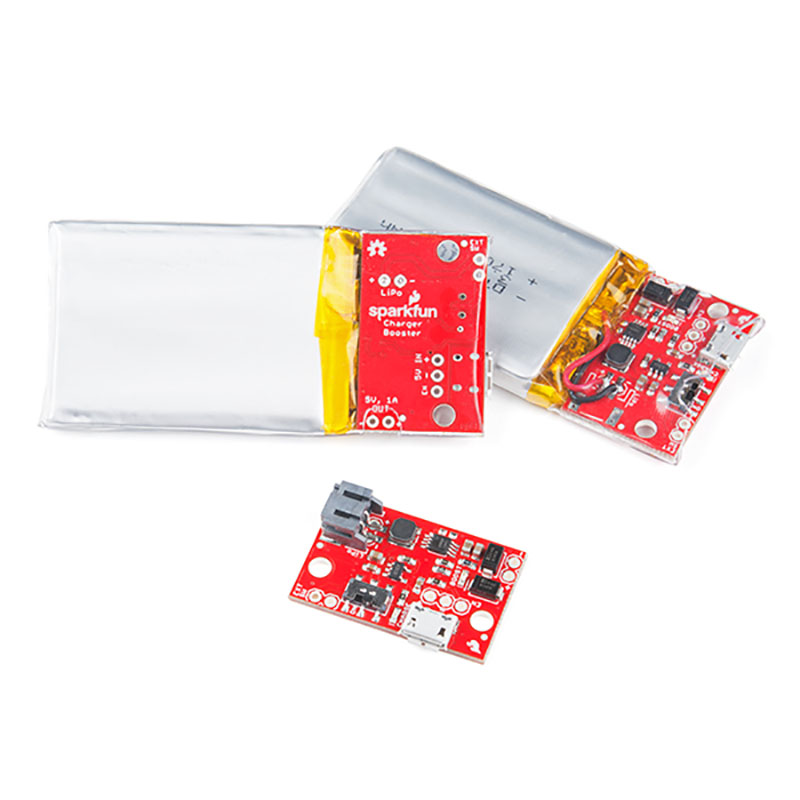

- Form factor for our 1,000mAh batteries.
- Battery isolation switch with optional external connections.
- Enable pin broken out.
- Disabled current less than 10uA.
- LED indicators for power and charge.
- Super-clean output signal (high-frequency switching).
- 1 x SparkFun LiPo Charger/Booster - 5V/1A.
- PCB Length: 31.75mm.
- PCB Width: 20.32mm.
- PCB Thickness: 1.67mm.
SparkFun Stock Code:
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
- For information about all of the delivery options we offer see full delivery details.
Thank you for your question, we currently do not plan to as a lot of the equipment we sell is all USB B. In a few years we might begin to move that way quicker but at the moment a move towards USB C is not something we are looking at.
Thank you for your question, not necessarily mobile phones do use lipo batteries sometimes but they would be required to have a JST connector on that most LIPOs would not include.
Thank you for your question, you would need something like a micro USB to USB cable. The micro USB end of the cable would plug into the board. The other end you would need to cut off and solder to either the leads or contact points on your battery pack.
