Pimoroni Lipo Amigo - Lipo Charger

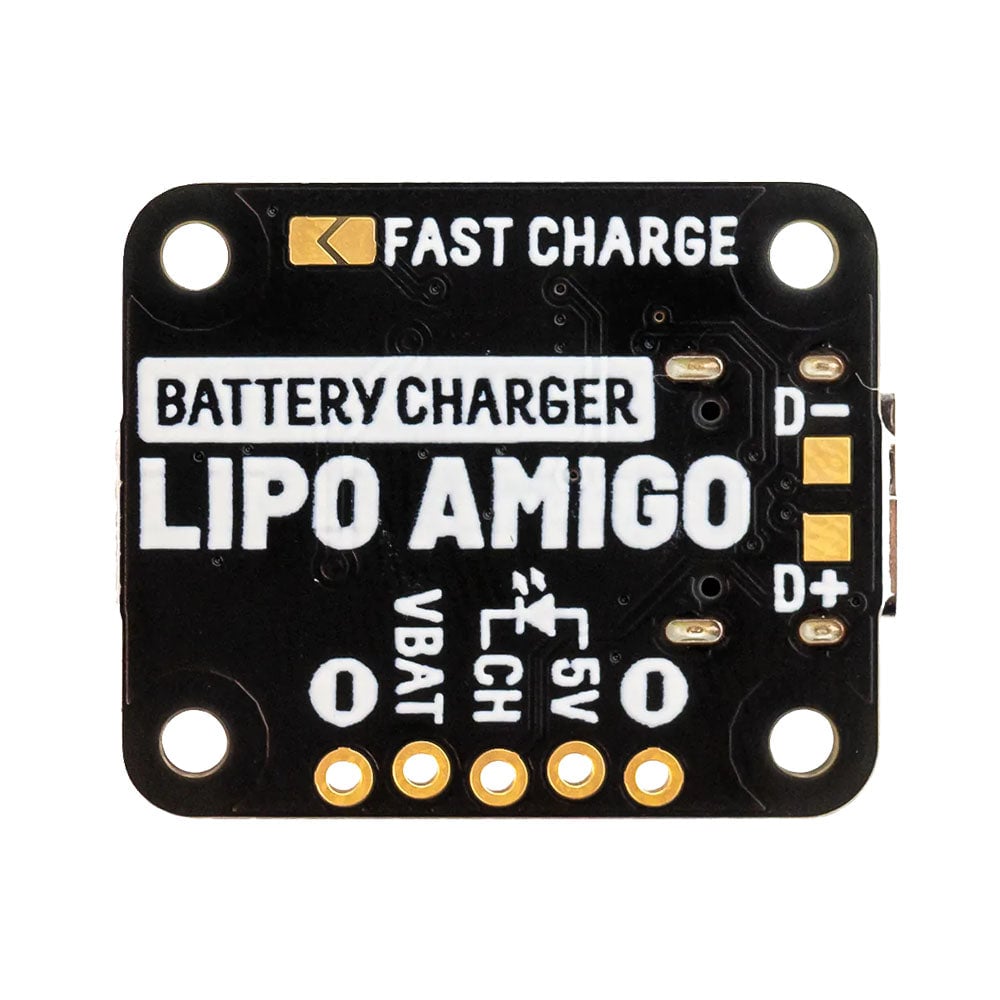

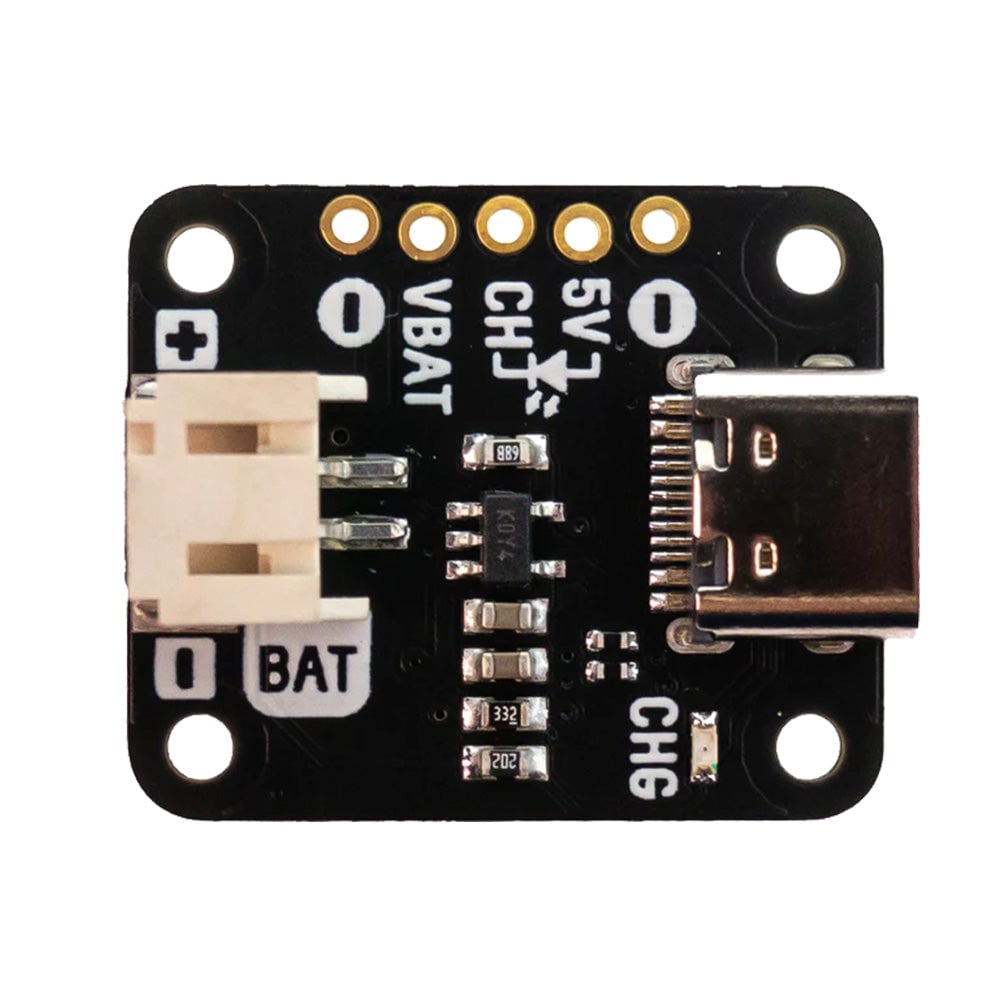

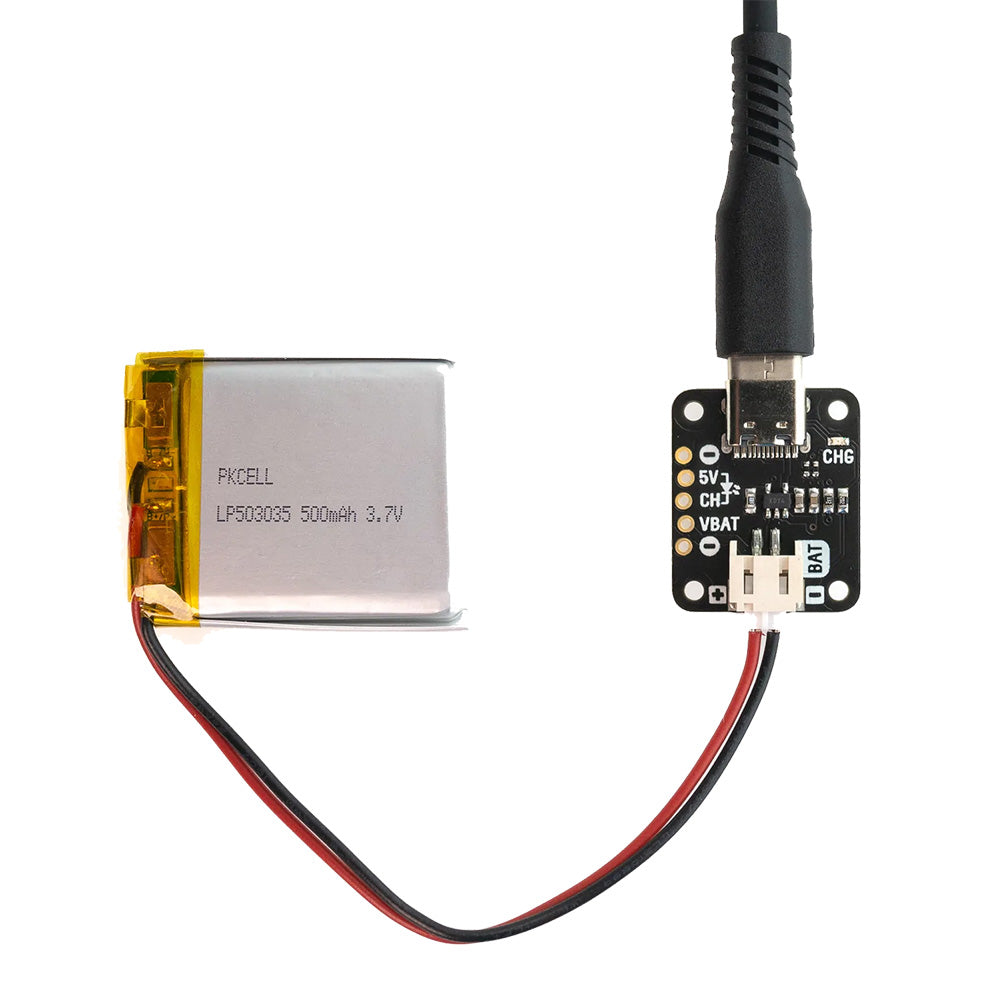

The LiPo Amigo is a stamp-sized charger for LiPo or LiIon batteries. At one end is a USB-C connector for attaching power, and at the other is a JST-PH connector for connecting LiPo or LiIon batteries. The board also features an LED that lights up when an attached battery is being charged.

The circuit has been constructed using an MCP73831 advanced linear charge management controller. This IC has a very small footprint and delivers a consistent 200mA charging current.

This board does not possess any under-voltage or other battery protection features. So, we do recommend that you use it only with batteries with a built-in protection circuit.

Features:

• The is a stamp-sized charger for LiPo or LiIon batteries.
• Featuring an MCP73831 advanced linear charge management controller.
• The charger delivers a consistent 200mA charging current.
• USB-C connector for input power.
• 2 pin JST-PH connector for plugging in LiPo/LiIon batteries.
• Onboard charging LED.
• No assembly is required.

Contents:

• 1 x Pimoroni Lipo Amigo – Lipo Charger.

Dimensions:

• Length: 26mm.
• Width: 21mm.
• Height: 7mm.

Requires:

• Suitable LiPo Battery.

Resources:

• LiPo Amigo Schematic.
• LiPo Amigo dimensional drawing.
• MCP73831 Datasheet.
