ProtoSnap - LilyTwinkle

The ProtoSnap series is a new way to prototype your project without a breadboard. Everything is wired together on a single board, which makes it easy to explore the possibilities of the components before snapping them apart and building them into your project.

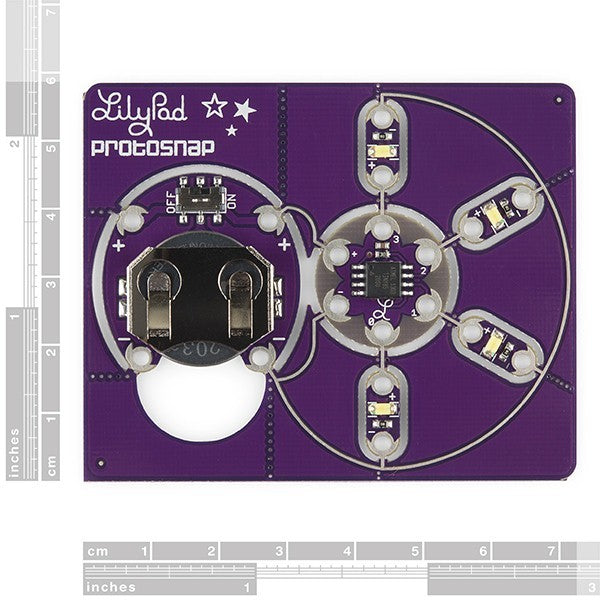

The ProtoSnap LilyTwinkle board is a very simple way to jump right into e-textiles. By including the LilyTwinkle, a coin cell battery holder (with built-in switch), and four white LEDs the ProtoSnap LilyTwinkle board easily allows you to add some sparkle to any project. To make your e-textile experience all the more enjoyable we have added a needle set and 30 feet of conductive thread!

Included on the Board:

• 1 x LilyTwinkle
• 1 x LilyPad Coin Cell Battery Holder – Switched
• 4 x LilyPad White LED

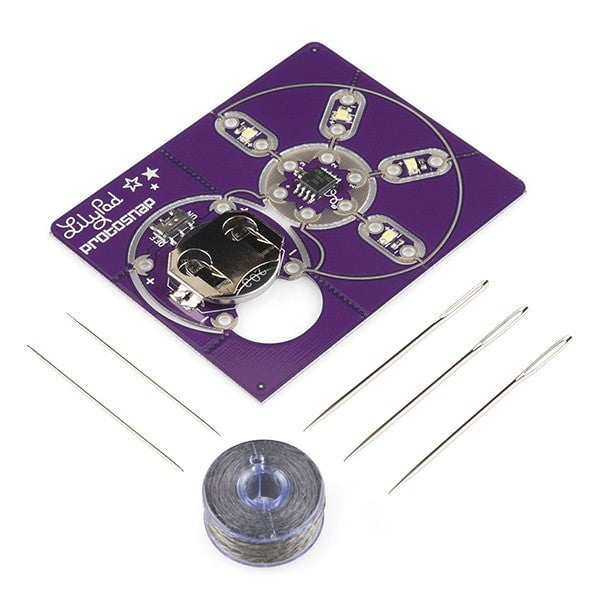

Also Included:

• 1 x Stainless Steel Conductive Thread Bobbin – 30ft
• 1 x Needle Set
• 1 x Coin Cell Battery

Documents:

• Schematic
• Eagle Files
• GitHub
• E-Textile Basics
• LilyTwinkle Tutorial
• Twinkling Fairy Wings Tutorial
• GitHub
