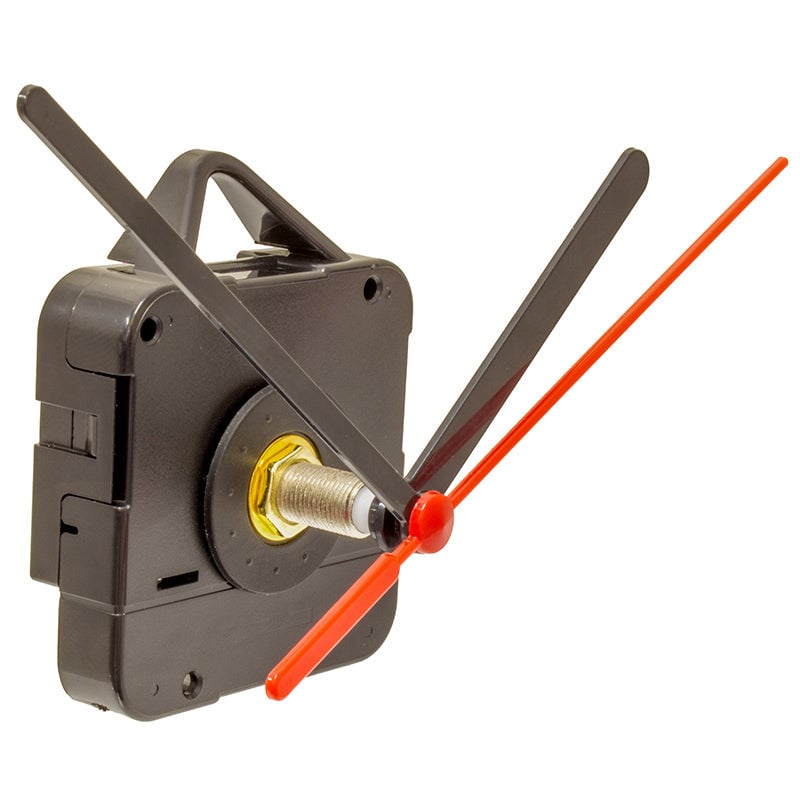

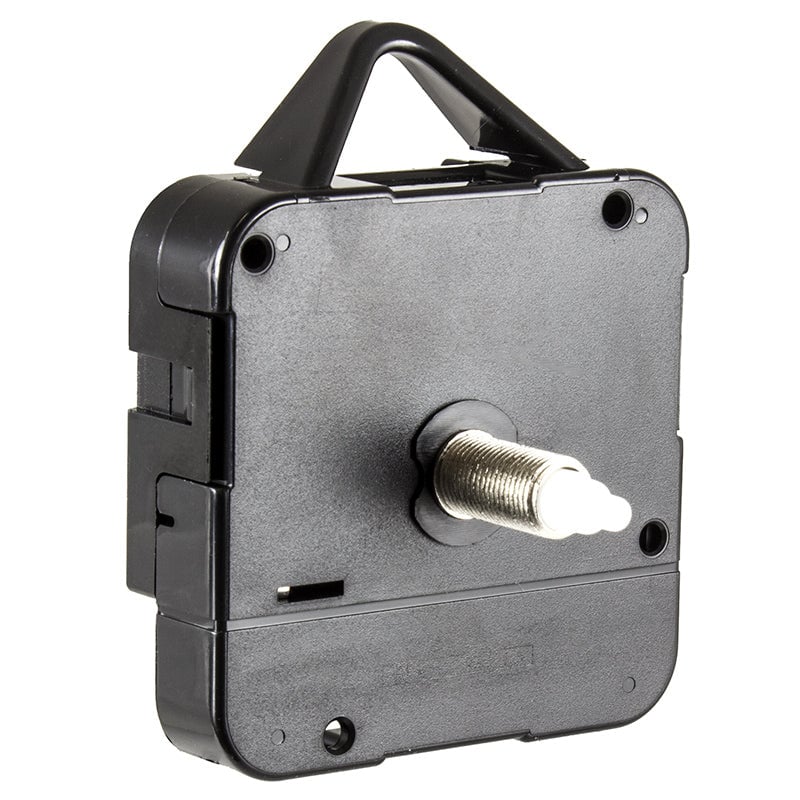

Quartz Clock Mechanism

Stock code: 2801-01
filler

Pack Size: Single
Pricing:Ex VATInc VAT
1+
£1.53
£1.84
Stock:
In stock

Description

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found in the product description.
Stylish and Simple Clock Designs for Your Laser Cutter

The cover of the Kitronik's Summer 2019 flyer shows this stylish simple clock design. This is an excellent product to combine a number of natural and man-made materials in an...

Stylish and Simple Clock Designs for Your Laser Cutter

The cover of the Kitronik's Summer 2019 flyer shows this stylish simple clock design. This is an excellent product to combine a number of natural...

How to make your own Dancer's Clock

This fun little tutorial shows you how to make a simple dancer's clock, great for the dancer or musician in your life. ..And, 5, 6, 7, 8. Learn how to...

How to make your own Dancer's Clock

This fun little tutorial shows you how to make a simple dancer's clock, great for the dancer or musician in your life. ..And, 5, 6,...

Q:
Hi, i have a porthole tide clock for my boat, i need a 3 movement quartz battery mechanism, can you supply one?
Asked by: Chris Norton
A:
Hi Chris,

Thank you for your question these are 3 movement mechanisms so these should hopefully work for you.

Best Regards

Cullen
Answered by: Cullen Lewis
24-Jun-19

Q:
I lost my bag of nuts and spacers for my 20 clocks. Can you tell me the nut size so i can replace locally since I'm in the states? Thank you
Asked by: Justin Golding
A:
Hi Justin,

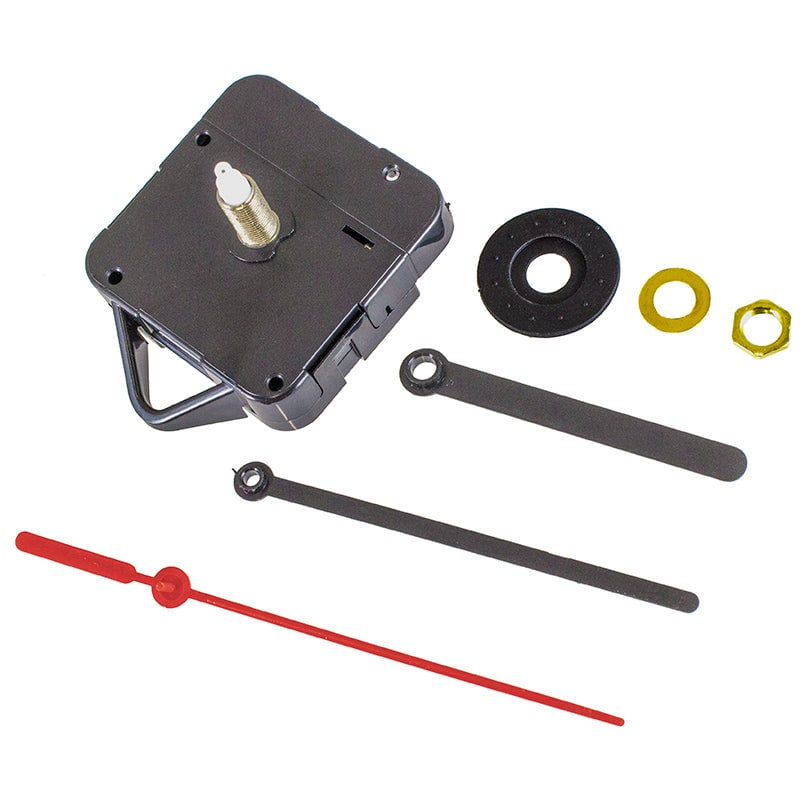

Thank you for your question, the nut is a hexnut that is 10mm outer diameter, 8mm inner diameter and 2mm thick. The spacer is a 14mm outer diameter and 8mm internal diameter. I hope this helps!
Answered by: Cullen Lewis
11-Apr-19

Q:
What is the diameter of the threaded shaft which is used as the mounting please?
Asked by: W.D.Wilson
A:
Hi there,

The Clock spindle is approximately 11mm in diameter.
Answered by: Cullen Lewis
18-Feb-19

Q:
i work for a college and it's been agreed the students can make clocks before christmas. can we order 100 mechanisms with hands and fixings? Your options don't have this.
Asked by: wayne brown
A:
Hi Wanye,

Thank you for your question, apologies for any confusion all of our mechanisms will come including the hands and fixings.

Best Regards

Cullen
Answered by: Cullen Lewis
13-Nov-18

Q:
I am after a replacement for a Quartz DM-8810-1 Shontek movement.
Is this something you stock, as I bought a different quartz movement from Maplin and it was compatible.

Thanks.
Asked by: Tom Barber
A:
Hi Tom, It is difficult to say if this would be suitable, it is likely that it may be similar but depending on what the clock movement is being placed into would depend how accurate the replacement would need to be.
Answered by: Michael Lockhart
14-Feb-18

Q:
Can i use this mechanism without the large seconds hand ?
Asked by: Wayne
A:
Hi Wayne, The issue with not using the red second hand is this prevents the hour and minute hand from coming off the spindle. The only way around this would be to keep the center of the second hand and remove the parts from either end. This means the center circle can be put onto the end of the spindle but as the long part of the hand has been removed it wouldn't appear to show the seconds.
Answered by: Michael Lockhart
14-Dec-17

Q:
What is the diameter of the circle cut in your MDF?
Asked by: Karolina
A:
Hi Karolina, If you are referring to the drilled hole in the MDF clock faces then these are approximately 8mm in diameter.
Answered by: Michael Lockhart
27-Nov-17

Q:
Making a glass clock, existing movement I have states it's not suitable to hang if clock weighs any more than 500gms - weight could stop clock. Mine are a bit heavier. Finding it impossible to find another type of fixing so would your clock movements be ok to hang a 500-750 gm weight clock?
Thank you.
Asked by: Jeni Smallridge
A:
Hi Jeni, Unfortunately we don't have any information regarding what weight these clock movements can take. However it is very likely that the amount of weight that can be placed on the spindle is very limited, and as such I do not suspect that these movements could handle that clock face weight. The clock faces which we sell weight less than 100 grams.
Answered by: Michael Lockhart
29-Aug-17

Q:
Can I cut ? the second hand to make it shorter as I need it to be 90mm to fit the clock.
Thank you.
Asked by: Karen
A:
Hi Karen, Technically you cut possibly cut the end down to make it fit your required space although we haven't tried this our self. You may not be able to get a clean cut however as the plastic is fairly stiff.
Answered by: Michael Lockhart
02-Jun-17

Q:
If I was to cut the hands down to fit in a clock would it affect the clock mechanism? Thanks James
Asked by: James
A:

Hi James, It shouldn’t affect the mechanism as long as the cut the end that doesn’t fit onto/into the spindle.

Answered by: Michael Lockhart
18-Apr-17

Q:
hi have a widdop bingham clock mechanism needs replacing.It has reference number
TW7978 on it.
Can you help please ?
Asked by: mike boulton
A:

Hi Mike, It is very unlikely that this movement would be identical to the one you need to replace. However as we don’t have any details regarding the original movement it is very difficult to give any further advise. In theory, if the movement fits into the housing and through the centre hole then it may be that it can be used as an alternative movement.

Answered by: Michael Lockhart
10-Apr-17

Q:
What is the length of the threaded brass shaft?
Asked by: Roy Burridge
A:
Hi,

Could you confirm the diameter too please?

Thanks

Matt
Answered by: Matt P
04-Apr-17

Q:
Hello
I have never replaced the mechanism on my clock , the mechanism on my clock looks the same as the one you sell. But the hands on my clock are smaller. Would I be able to use the existing hands with the mechanism you sell.
Regards Maureen Brett.
Asked by: Maureen Brett
A:

Hi Maureen, It is difficult to say if the hands on your clock mechanism would fit onto the one we stock. It’s very lightly that although they look similar the size of the holes on the hand and the way the second hand fixes onto the movement may be different.

Answered by: Michael Lockhart
13-Mar-17

Q:
I am making a clock on canvas max hour hand size will be 75mm is this suitable
Asked by: dave hart
A:

Hi Dave, I have just doubled checked and the measurement for the hour hand of 65mm that we list is correct, this includes the circle section as well, so this movement should be fine for the length of the hour hand.

Answered by: Michael Lockhart
06-Mar-17

Q:
Hi being a regular gardener could I get the movements for outdoor use regards
Asked by: Stuart Allen
A:

Hello Stuart, Unfortunately this is the only movement we stock. However if you housed the movement in a waterproof enclose with the spindle coming through this you could then have the clock outside. The enclosure could also then form the clock face.

Answered by: Michael Lockhart
03-Mar-17

Q:
Hello

Can you tell me if your clock mechanism is silent or makes a ticking noise? Thanks
Asked by: Alanna
A:

Hi Alanna, the movement makes the standard ticking noise as the second hand moves.

Answered by: Michael Lockhart
13-Sep-16

Q:
What are the diameters of the hour and second hand shafts please?
Asked by: John Squire
A:

Rita,


I’ve just got a clock movement out and done some measuring, please be aware that I’ve only measured one, so whilst these figures will be indicative of all movements, there may be a small amount of variation.


The inside of the hour hand is measuring 4.9mm and the shaft tapers from 5.0mm to 5.1mm. The inside of the second hand is 2.95mm and the shaft tapers from 3.17mm to 3.24mm. I’m unable to measure the second hand as it is inside the assembly, but I suspect the pin that the hand fits on to is 0.8mm, but please remember this is not measured.


Best regards


Michael

Answered by: Rob Haywood
04-Jul-16

Q:
hello

We've ordered a lot of these mechanisims sets from yourselves in the past. Unfortunatly with classrroom use we have run out of the fixings and attachments to the mechanisims (the hands, fixings, washers etc). We still have plentry of the clock mechnaisms left. Is it possible to purchase the fittings separtatly from yourseves rather than full kits with the mechanisims.

regards

E Jackson
Asked by: E. Jackson
A:

Unfortunately the fixings are brought with the clock movements and we are unable to purchase additional fixings in. As such we can only supply them in the packs with the movements.

Answered by: Michael Lockhart
09-Jun-16

Q:
I need to replace a mechanism which has a ref HM597 the makers name on this mechanism is Widdop Bingham Will this mechanism fit please.
Asked by: Ernie Stammers
A:

We stock a standard clock movement, as such I wouldn’t be able to say if it would be a suitable replacement for that specific movement as I was unable to find any details regarding the movement you have.

Answered by: Michael Lockhart
06-Jun-16

Q:
I want to replace a Kienzle quartz clock mechanism, which is rather finer than the modern one I bought (which I was able to use on another clock). Do you stock this kind of item? I'm not sure of the measurements. Do you have a shop that I could visit?
Asked by: Valerie
A:

This is currently the only clock movement we stock, as such we don’t have a movement that would be suitable. Unfortunately we don’t have a shop that you could visit either.

Answered by: Michael Lockhart
13-May-16

Q:
Can you please tell me whether it is complicated (and expensive) to make a deadbeat minute hand clock (where minute hand moves like a second hand in 60 second intervals)?

I was wondering whether using cogs/wheels to bring about this effect - with one of these clock sets.
Asked by: Stuart
A:

It is difficult to say if this would be complicated and how expensive this would be to do. The mechanism is located within the housing, and as such this would need to be opened up to allow you to make alterations to how it works. After a quick search there seems to be little information on creating these so I would suspect they could be difficult to create.

Answered by: Michael Lockhart
09-May-16

Q:
I am making a clock out of a metal wheel. Diameter of wheel is 24 inches. Hand shaft length is 3 inches and minute hand length is 12 inches. Do you sell a kit that meet these measurements? Thank you.
Asked by: Tonyia Miller
A:

These are the only clock movements we stock.

Answered by: Michael Lockhart
21-Mar-16

Q:
Is this suitable for 6mm thick MDF clock faces?
Asked by: Billy H
A:

The maximum panel thickness for the product is 8mm, so 6mm MDF should be fine.

Answered by: Michael Lockhart
01-Feb-16

Q:
I want to make clocks out of 2" to 3" timber would this work.
Asked by: Mike berry
A:

The maximum panel thickness for a clock face is 8mm.

Answered by: Michael Lockhart
06-Jan-16

Q:
I am looking to make clocks from 7 inch vinyl records do the clock movements you sell have different coloured hands to go against the black of the vinyl.
many thanks
steve

Asked by: stephen kopyrko
A:

Unfortunately we don’t have different coloured hands other than what is supplied with the movement.

Answered by: Michael Lockhart
07-Sep-15

Q:
Please could you tell me if the mechanism is heavy duty? The clock I have is 80cm diameter and the minute hands is 35mm long made from lightweight aluminium. Is the mechanism strong enough to carry this?
Asked by: John Millward
A:

Our clock movements use plastic hands which weight a maximum of 6g’s, as such it wouldn’t be advisable to use components heavy than this. The clock mechanism can be used with the MDF clock faces which are 170mm in diameter, as such a clock face of 80cm may place a lot of strain on the spindle of the movement.

Answered by: Michael Lockhart
24-Aug-15

Q:
Please could you tell me the total length of the spindle on this clock movement, WITH the seconds hand fitted?
Is the fixing nut 2mm thick?
I am trying to replace a quartz clock movement and have very limited space. The clock face is 5mm thick and there is a 13mm space from the front of the clock face to the glass. I am prepared to add packing washers to move the movement further away from the rear of the face, but need to know that everything will fit properly. I look forward to your guidance.
Cheers.
Asked by: John
A:

The spindle is roughly 21mm including the second hand, and the nut is 2.3mm thick. The thickness of the clock movement body itself is 15.8mm. So the total for the body and spindle is roughly 36.8mm.

Answered by: Michael Lockhart
31-Mar-15

Q:
We have some spare clock mechanisms left over. Can we buy just hands and nuts separately?
Asked by: Brian Waterhouse
A:

We currenlty do not stock spare hands and nuts for the clock movements.

Answered by: Michael Lockhart
23-Mar-15

Q:
We are running a science & tech day with our guides (ages 10 to 14) on 28 Feb and are looking to make CD clocks and also fizz bot robots.

Are you able to confirm these clock mechanisms are suitable for CDs please.

In addition I was wondering if you able to offer us any discounts for quantity purchases of both the cd mechanisms and the fizz bots ?

Many thanks
Ann Fairthorne
Asked by: Ann Fairthorne
A:

Yes these would be fine to use with CD’s to create the clock face. However I am afraid we cannot offer any further discount on either of these two products. Each product does have a bulk buy option which reduces the individual cost.

Answered by: Michael Lockhart
19-Jan-15

Q:
have a 12inch wall clock witha faulty movement, identified as - Chigi Tekei Co Ltd no(0) jewel withthe following infoi in the battery compartment 2031V and 19601 do you have a sugestion as an replacement. thank you, this unit also drives a pendulum
Asked by: harry
A:
Lots of the clock movements are made to the same specification possibly even in the same factory in China. There are some minor variations such as shaft length and the size of the hands. All you really need to check is that the mounting hole in your face is 8mm and then I think the unit will fit fine. It of course doesn't have a pendulum on it, but if your happy to not have that functionality then it will do the job.
Answered by: Geoff Hampson
31-Oct-12
