Kitronik 3.5mm Jack - Deluxe Stereo Amplifier Kit plus 9V battery
+
Kitronik 3.5mm Jack - Deluxe Stereo Amplifier Kit plus starter soldering kit and 9V battery
+
+
Description
This deluxe amplifier kit can be used with any personal stereo equipment, including MP3 players. The kit has a volume control & power LED. It can be powered by a battery connected to the PP3 clip or a DC power module can be plugged in, in which case the batteries automatically disconnect and the power supply is used. The kit can be powered off a 2V to 15V supply, though the volume is better with a higher supply. It uses a NJM2073D audio amplifier IC which can output 1W per channel.
It works nicely off a 9V battery (not supplied) or if you want to run it of the mains why not try our 12V wall power unit.
This kit requires soldering.
Features:
- 1W per channel stereo amplifier.
- Choice of iPod or 3mm jack cable.
Contents:

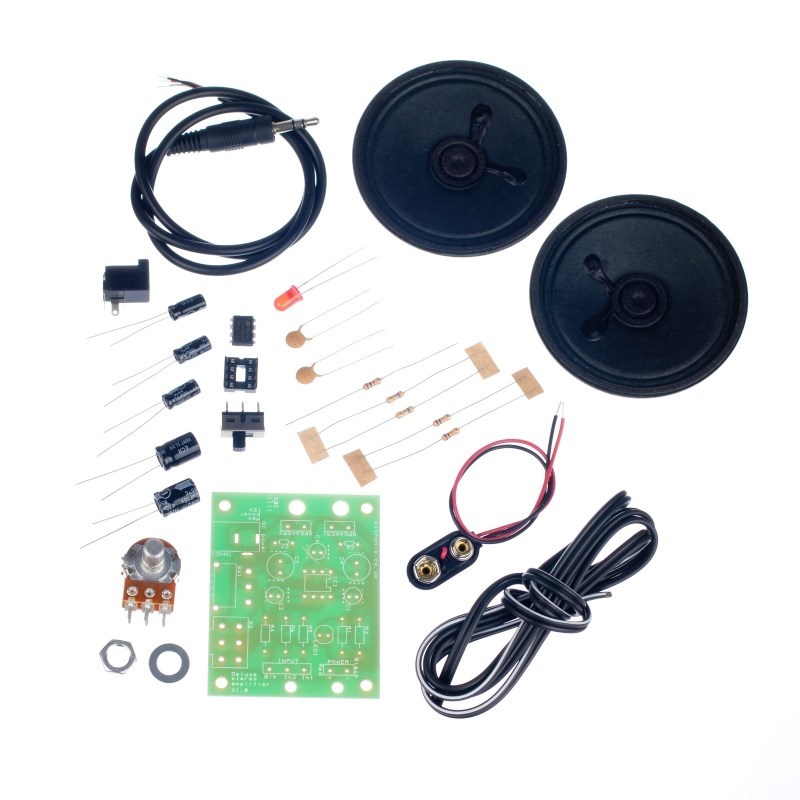

- 1 x NJM2073D Stereo Amplifier IC.
- 1 x IC Socket 8 Pin.
- 1 x 1K Resistor.
- 2 x 10K Resistor.
- 1 x Dual Wipe Potentiometer, 10K.
- 2 x 4.7R Resistor.
- 1 x Red 5mm Diffused LED - 275mCd.
- 2 x Ceramic Capacitor, 50V, 100nF.
- 2 x Electrolytic Capacitor, 16V, 470uF.
- 2 x Electrolytic Capacitor, 16V, 100uF.
- 1 x Electrolytic Capacitor, +16V, 10uF.
- 1 x PP3 Battery Clip Lead (Heavy Duty).
- 1 x PCB Mount Slide Switch.
- 2 x 8 ohm 66mm Speaker.
- 1m x Figure 8 Speaker Cable 2x (7x0.18mm).
- 1 x DC Power Socket, Chassis Mount.
- 1 x Deluxe Amplifier PCB.
- 1 x Stereo Amp Cable.
Dimensions:
- PCB Length: 62mm.
- PCB Width: 50mm.
Requires:
- Soldering Iron.
- Solder.
- Either: 1 x 9V Battery.
- Or: 1 x 12V 500mA UK Mains Wall Power Supply.
This kit is supplied in a blister retail packaging. It is also available in a simple grip seal bag and bulk quantities for more details on this version click here
