Description
This kit uses a silent low current motor to spin a fan, making it perfect to circulate air through an air freshener containing potpourri or it can be used to move a light weight buggy. The electronics take no power in standby and when the switch is pressed the motor spins for up to 100 seconds. This time is adjustable via the on board variable resistor.
Features:
- Silent motor.
- Adjustable timer.

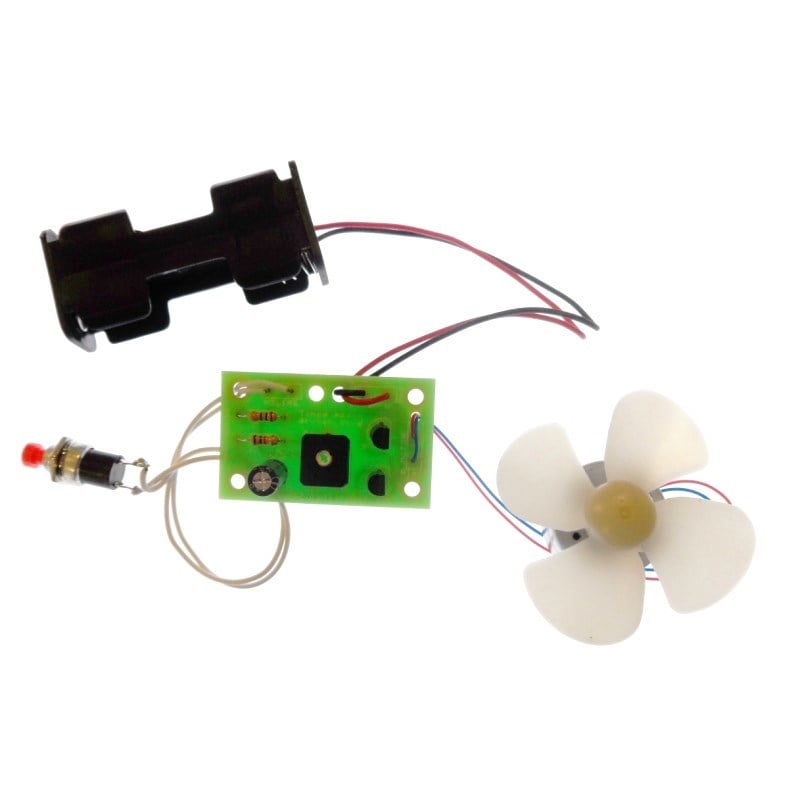

Contents:
- 1 x Battery Holder With Leads (2x AA).
- 1 x 1K Resistor 5%.
- 1 x 1M resistor.
- 1 x PCB Trimmer 1M POT.
- 1 x 16V 220uF Electrolytic Capacitor.
- 2 x BC547 NPN Transistor.
- 1 x Miniature Push to Make Switch, Red.
- 1 x Low Inertia Solar Motor - 1820 RPM.
- 1 x 55mm White Four Blade Miniature Impeller.
- 0.5m Connecting Wire.
- 1 x Air Freshener PCB.
Dimensions:
- Length: 46mm.
- Width: 28mm.
Requires:
- 2 x AA Batteries.
- OR 1 x Easy Build Coin Cell Power Board.
- Soldering Iron.
- Solder.
- Wire Cutters.
- Wire Strippers.
This kit is supplied in a grip seal bag.
Free samples:
Teachers can order a sample of this kit (one per school) request a sample kit.
You will need to select the kit from a list of all the sample kits; the stock code for this kit is 2123.
Note: this service is only offered to schools for evaluation purposes only.
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
Year 9 Aroma Fan projects from students at Meole Brace School. Campervan by Marth Penny. Fan by Georgina Rees. Woodland scene by Martha Lavelle. Converse. Cola by Natasha Ransley. Fireplace...
Year 9 Aroma Fan projects from students at Meole Brace School. Campervan by Marth Penny. Fan by Georgina Rees. Woodland scene by Martha Lavelle. Converse....
Year 9 Aroma Fan projects from students at Meole Brace School. Shoe by Mia Williams. Cake, Wheel by Osan Hughes. Lounge by Daisy Tomlinson. ...
Year 9 Aroma Fan projects from students at Meole Brace School. Shoe by Mia Williams. Cake, Wheel by Osan Hughes. Lounge...
An air freshener styled as a lighthouse. The top section contains the holes to allow the aroma out. This top view shows the propeller blade inside the unit. ...
An air freshener styled as a lighthouse. The top section contains the holes to allow the aroma out. This top view shows the propeller...
A laser cut MDF case with floral design. Alternate petals are holes in the case to allow the aroma out. In this view you can see the hole where...
A laser cut MDF case with floral design. Alternate petals are holes in the case to allow the aroma out. In this view you...
The case has a removable lid to allow the aroma element to be added. This pictures shows the complete design.
The case has a removable lid to allow the aroma element to be added. This pictures shows the complete design.
The case has been laser cut from MDF. The pieces of the design slot together. The design was then painted in normal computer colours.
The case has been laser cut from MDF. The pieces of the design slot together. The design was then painted in normal computer...
The case has been designed to look like a bedroom. There are two drawers, one for the aroma element to be added and one for the jewellery.
The case has been designed to look like a bedroom. There are two drawers, one for the aroma element to be added and one...
The case has been designed to look like a Chinese lantern. There is a tray at the bottom for the aroma element to be added.
The case has been designed to look like a Chinese lantern. There is a tray at the bottom for the aroma element to be...
The design was made by layering laser cut MDF. A space was left at the top for the air to exit. The final case once complete.
The design was made by layering laser cut MDF. A space was left at the top for the air to exit. The final...
Year 9 aroma fan projects. Cake by Lauren Goodhead. Henry by Lois Boyle. Burger by Burah Kaya. Piano by Hannah Sears. Trainer by Jack Orbell....
Year 9 aroma fan projects. Cake by Lauren Goodhead. Henry by Lois Boyle. Burger by Burah Kaya. Piano by Hannah Sears....
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What is soldering? Soldering is a...
How to solder - an introductory guide: If you're new to soldering our Soldering School will have you up and running in no time. What...
Q:
Can you please advise a motor mount for this project and do you supply suitable mesh for the grille?
A:
Thank you for your question. I am afraid we do not stock a particular holder for the cylindrical motors only the flat sided motors.
With regards to the grille we do stock some speaker grilles but nothing that was originally built around the fan.
Best Regards
Cullen
Answered by: Cullen Lewis
26-Apr-18
Q:
Sounds an odd question but what is the diameter of the motor casing. Steve
Asked by: Steve
A:
The motor is 25mm in diameter, 12.4mm deep, shaft length 6.2mm
Answered by: Geoff Hampson
09-Jun-11
