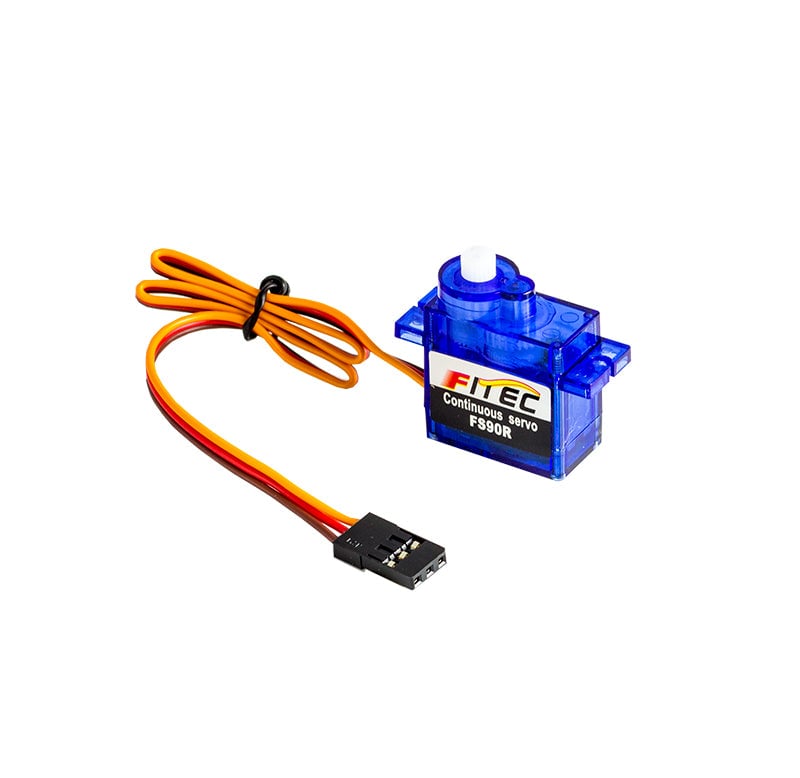

Mini 360 Degree Continuous Rotation Servo FS90R

Stock code: 2589
filler

Pricing:Ex VATInc VAT
1+ £3.85
(excl. VAT)
£4.62
(inc. VAT)
10+ £3.65 £4.38
Stock:
In stock

Description

AttributeValue
Weight 9g.

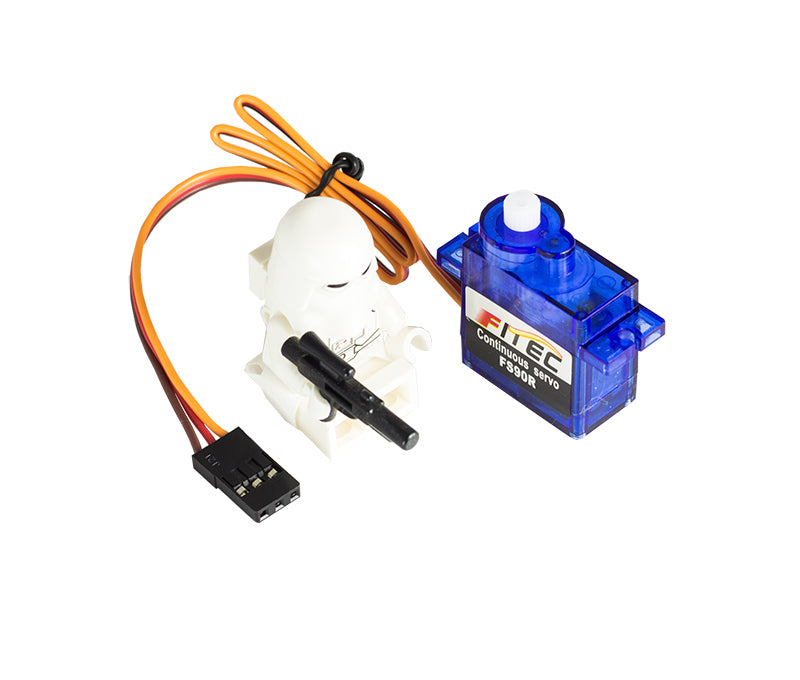

Size 23.2mm x 12.5mm x 22mm.
Lead Length 200mm
Deadband ±45µs
Voltage Range (V) 4.8V - 6V
Max Speed @ 6 V 130 RPM
Max Speed @ 4.8 V 100 RPM
Stall torque @ 6 V 1.5kg/m
Stall torque @ 4.8 V 1.3kg/m.
Red Wire Positive connec

Same Day Dispatch

  • Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.

UK Deliveries

  • If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
  • If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
  • If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.

Rest of the world

  • These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
  • Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.

Collection

  • If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.

Further Information

Please note: Instructions for using this product (if available) can be found under the product description.
Kitronik Spooky Halloween 2018 Project Ideas featured image

With Halloween 2018 creeping up on us, we’ve made some spooky resources to give your decorations a techy twist! It’s a great time of year to test out some ideas...

Kitronik Spooky Halloween 2018 Project Ideas featured image

With Halloween 2018 creeping up on us, we’ve made some spooky resources to give your decorations a techy twist! It’s a great time of year...

Control A 360 Degree Servo With A BBC micro:bit featured image

We've recently added a continuous rotation servos to our range of stocked products. We thought it would be useful to do a quick tutorial on how to control one using...

Control A 360 Degree Servo With A BBC micro:bit featured image

We've recently added a continuous rotation servos to our range of stocked products. We thought it would be useful to do a quick tutorial on...

Trim A Continuous Rotation Servo With Code

In this quick tutorial, we are going to cover how to trim a continuous rotation servo with code. We will be writing our code in Microsoft's MakeCode Editor for the BBC...

Trim A Continuous Rotation Servo With Code

In this quick tutorial, we are going to cover how to trim a continuous rotation servo with code. We will be writing our code in Microsoft's...

Q:
When connected to Arduino Uno, can we change the speed smoothly? (not only the direction at max speed)
Asked by: Dim Stefanov
A:
Hi Dim, Thank you for your email, you could code in the arduino to gradually change the servo or set it to full speed in either direction. Best Regards Cullen
Answered by: Cullen Lewis
12-Feb-20

Q:
What's the torque on these servos and any other servos you stock? Thanks
Asked by: Adam
A:
Hi Adam, Thank you for your email, the stall torque on our servos varies based on input power. This one goes between about 1.5KG/m to 1.8KG/m. We do have some more powerful ones which do around 4KG/cm at higher voltages. Each of our servos should state these details under the technical information for you. Best Regards Cullen
Answered by: Cullen Lewis
15-Jul-19

Q:
Can this be configured to allow 360 degree rotation and STOP, with the next command being 360 degree rotation and STOP etc., etc., etc. ?
Asked by: Roy Stephenson
A:
Hi Roy, Thank you for your email, theoretically you can with a micro controller running it. However whereas 180 degree servos provide themselves with feedback 360 degree servos do not so they would not know when they had come full circle. What you would need to do is roughly work out how long it takes to complete a rotation for example 2.5s. You would then programme the servo to turn but tell it to stop every 2.5seconds which should see it rotating 360 degrees and stopping. If you put this in side a loop command this should be able to go repeatedly. I hope that makes sense! Best Regards Cullen
Answered by: Cullen Lewis
19-Feb-19

Q:
FS90R 360 Degree Continuous Rotation Servo Hello, Can you tell me when it is going to be avaible, and please send me Cad file or all dimenions of this servo. Regards Aleksander Werner
Asked by: Aleksander Werner
A:
Hello, Thank you for your email, those should now be back in stock as we have done a new batch this morning. The Dimensions of the servo should be 23.2 Long; 12.5 Wide; 22 mm High Best Regards Cullen
Answered by: Cullen Lewis
09-Apr-18
