Description

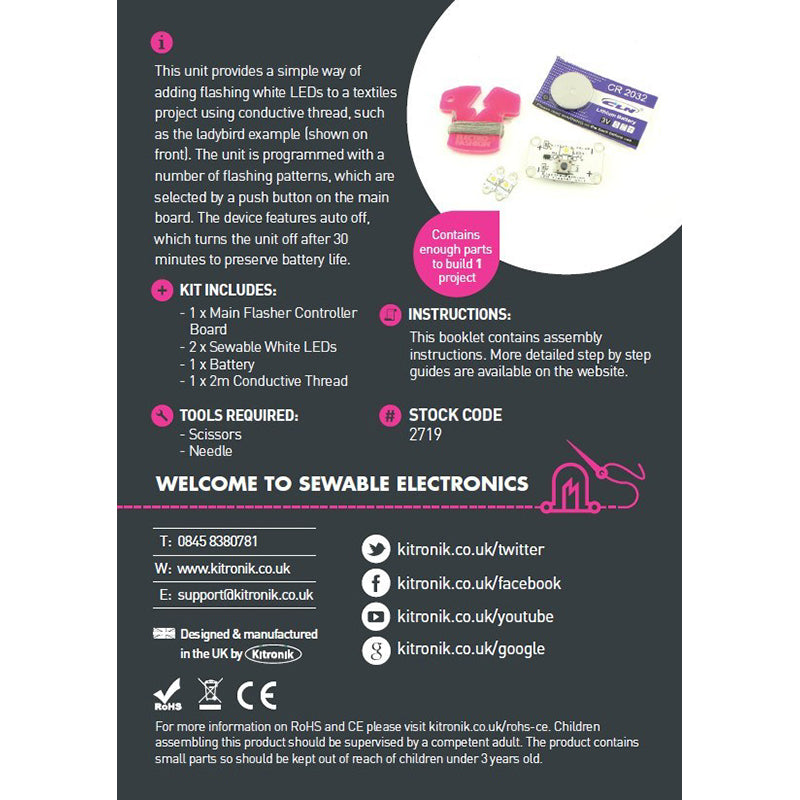

This unit provides a simple way of adding flashing white LEDs to a textiles project using conductive thread. The unit is programmed with a number of flashing patterns, which are selected by a push button on the main board. Pressing this button cycles through the following patterns: all LEDs constantly on, slow flash all on all off, fast flash each in turn and turned off. The device features auto-off, which turns the unit off after 30 minutes to preserve battery life.
This kit is supplied pre-built so requires no soldering. Each kit comprises three small PCBs. The largest of the three PCBs holds an LED plus the control electronics, battery and a push button. On both of the remaining PCBs there is an LED, these are connected to the main board with conductive thread (supplied).
Depending upon flash pattern the battery lasts for approximately two days of constant use.
Features:
- Everything you need to complete one project.
- Flasher control unit with 3 seperate modes.
- Additional LEDs.
- Full instructions for assembly.
- Auto-Off to preserve battery life.

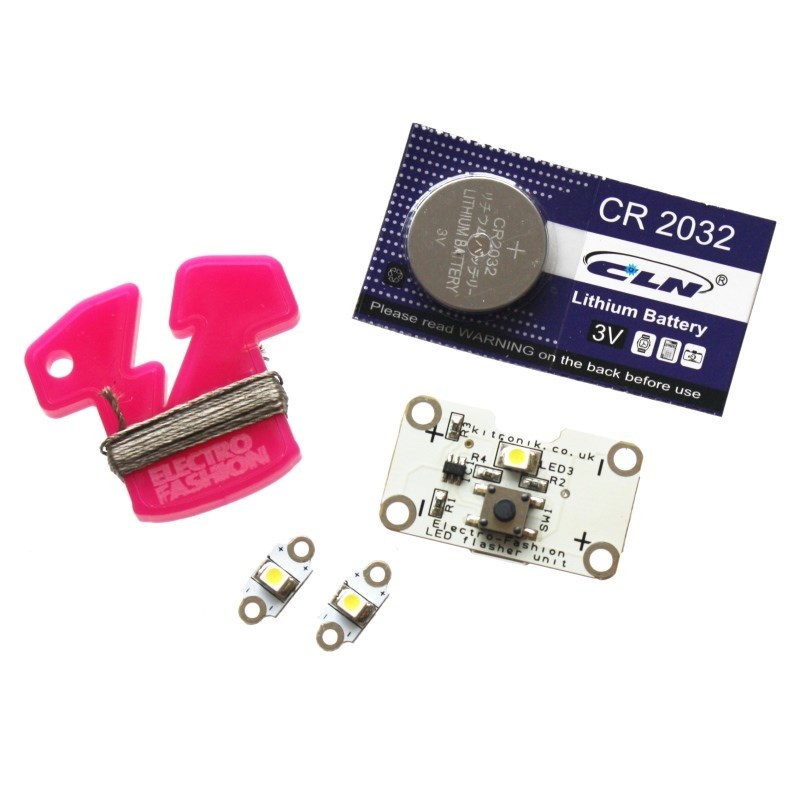

Contents:
- 1 x Flasher Control Board.
- 2 x Sewable White LEDs.
- 1 x CR2032 Coin Cell Batteries.
- 1 x 2m Conductive Thread.
Dimensions:
- Flasher Control Unit Length: 34mm.
- Flasher Control Unit Width: 20mm.
- Flasher Control Unit Height: 9mm.
- Ultra-slim LED Length: 15mm.
- Ultra-slim LED Width: 6.5mm.
- Ultra-slim LED Height: 2.7mm.
- CR2032 Battery Height: 3.2mm.
- CR2032 Battery Diameter: 10mm.
Requires:
- Scissors.
- Needles.
Caution:
- The coin cell holder in this pack contain Nickel and should not be used in designs where it will be in prolonged contact with the skin.
Buy British:
This product is designed and manufactured in the UK by Kitronik.
Caution:
Coin cells should be kept out of the reach of small children as they are very dangerous if swallowed, when immediate medical intervention is required.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
UK Deliveries
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
Collection
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
Further Information
- For information about all of the delivery options we offer see full delivery details.
Q:
Hi, I have one of these great kits. I'd like to end up with one switch controlling 9/10 LEDS. Is this possible or will I need to buy a separate switch & larger battery (or several 3v batteries) and add resistors? I particularly like the timer and flashing functions but don't want to buy 2 more whole kits (and therefore have 3 switches). Thanks
A:
Hi, the absolute maximum amount of LEDs you can run from one of these units is 10, 5 per side of the flasher unit. Depending on your design though you might need two flasher units with 4/5 LEDs connected to each (split across the two sides of the flasher units). This is because the battery may not be able to output enough current to make it work for very long.
Answered by: Aaron Sturman
24-Oct-14
