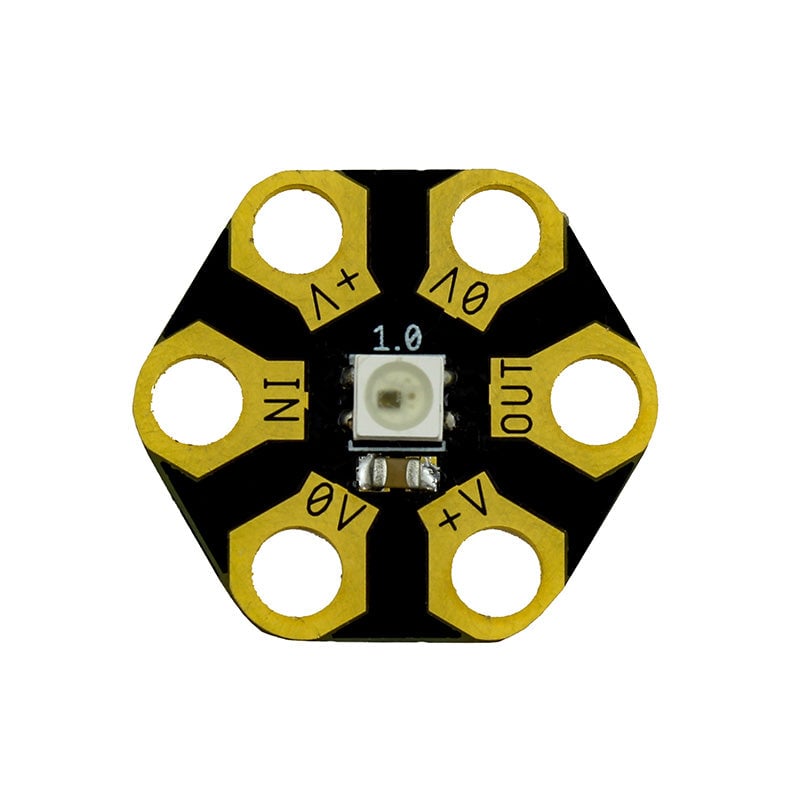

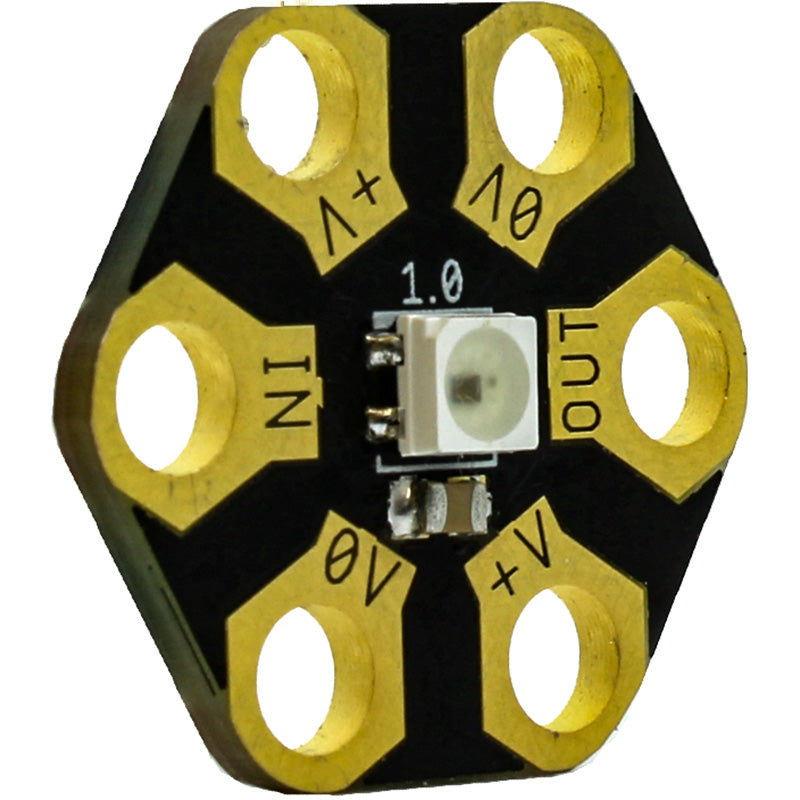

The Kitronik ZIP Hex LED has a single RGB LED which can be controlled with a Microprocessor to produce a full spectrum of colours.
The LED is a WS2812Mini, for which software packages are available for the BBC micro:bit and other processors.
The board has been specifically designed to allow you to chain the boards together. They have 6 evenly spaced pads around the outside of the PCB that can be connected to with crocodile clips or M3 fixings. They can also be stacked by rotating the PCB 180 degrees to create columns.
The ZIP Hex LED has an operating voltage of between 3.5V to 5V and can be fed into the boards via the +V and 0V pads. Data to the LED is fed to the LED via the IN pad. When chaining ZIP Hex LEDs together, or other ZIP LED boards, the OUT of the first board should have a connection to the IN of the second board, repeated for each board in the chain. You would also connect the +V and 0V pads of each board together.
- It features a single WS2812Mini LED which can produce a full spectrum of colours.
- It can be controlled by a Microprocessor, such as the microbit.
- The boards can be chained together.
- The pads can be connected to with crocodile clips or M3 fixings.
- 1 x Kitronik ZIP Hex LED pack of 5.

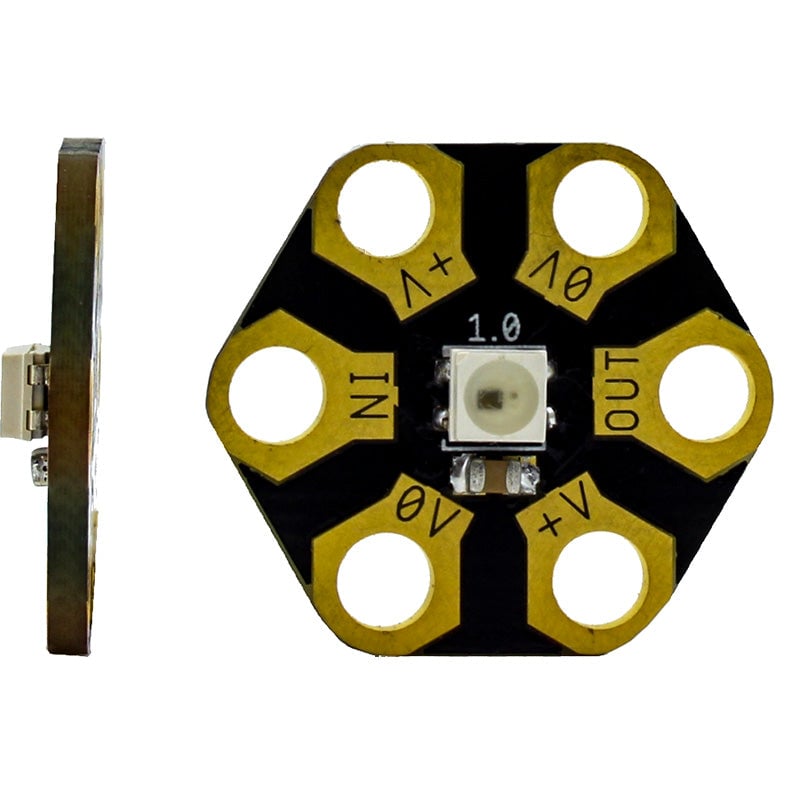

- Point to Point Width: 21.5mm.
- Length To Length Width: 19.5mm.
- Height: 3.6mm.
- PCB Thickness: 1.6mm
This product is designed and manufactured in the UK by Kitronik.
Same Day Dispatch
- Orders placed online before 3:00pm Monday - Friday (excluding public holidays and our Christmas shutdown period) are always dispatched the same day provided the goods are in stock. If the goods are not in stock we will endeavour to contact you as soon as possible to discuss a dispatch date.
- If you live on the UK mainland and don't have any large materials or lithium batteries in your order it will cost £3.95 (£4.74 including VAT) if you spend less than £40 (£48 including VAT).
- If you spend between £40 and £200 (£48 - £240.00 including VAT, excluding large materials or lithium batteries) delivery is free to most locations, £12 (£14.40 including VAT, excluding large materials or lithium batteries) to Northern Ireland and £15 (£18.00 including VAT, excluding large materials or lithium batteries) to UK remote locations. For a list of postcodes that will be charged the remote location rate: remote area list.
- If you spend over £200 (£240.00 including VAT, excluding large materials or lithium batteries) delivery is free within the UK.
Rest of the world
- These orders are sent via UPS, and the cost is dependant on the service you choose at checkout. Alternatively you can choose the free collection option and have your own courier collect it from us. International orders can only be shipped to the registered card address. Please note: International orders may be charged import duty dependant on local import laws and duty rates. These charges are usually billed to you directly from UPS.
- Delivery times vary for international orders depending on the service selected and the destination. You can see the delivery time and cost at the shipping stage, or by using the shipping estimator from within the shipping basket.
- If you would like to collect your order, or use your own courier then there is an option you can select during checkout. We do not charge a packaging or handling fee for this service, and you will receive an email when your order has been processed, you can collect half an hour after receipt of this email.
- For information about all of the delivery options we offer see full delivery details.
There has been a disturbance in the micro:bit community, have you felt it? Star Wars day is back and has probably led a lot of you to make something inspired...
There has been a disturbance in the micro:bit community, have you felt it? Star Wars day is back and has probably led a lot of...
Adding ZIP Hex LEDs to our Simple Robotics Kit is a great and easy way of adding indicator lights to your robot buggy. It's super simple, fun, and we've also...
Adding ZIP Hex LEDs to our Simple Robotics Kit is a great and easy way of adding indicator lights to your robot buggy. It's super...
Elsa Novak from Redhill Sixth Form joined us last week for work experience. Having completed this Fairground Project, she is here to tell you what her inspiration was for the...
Elsa Novak from Redhill Sixth Form joined us last week for work experience. Having completed this Fairground Project, she is here to tell you what...
Thank you for your question, I am afraid we do not have instructions for those released just yet but we do have a getting started guide on the link below and the main difference is the number of LEDs being used. So if you had 4 of these LEDs attached you would tell the micro:bit there were 4 LEDs at PIN 0.
The link below contains example code for creating a rainbow effect again you just need to alter it cover the number of LEDs being used.
We mainly use PICAXE microcontrollers, can these control them as they look great.
Thank you for your question, in theory yes they could run these but it would require a lot of work with hacking circuits and rewriting some of the base code on these.
