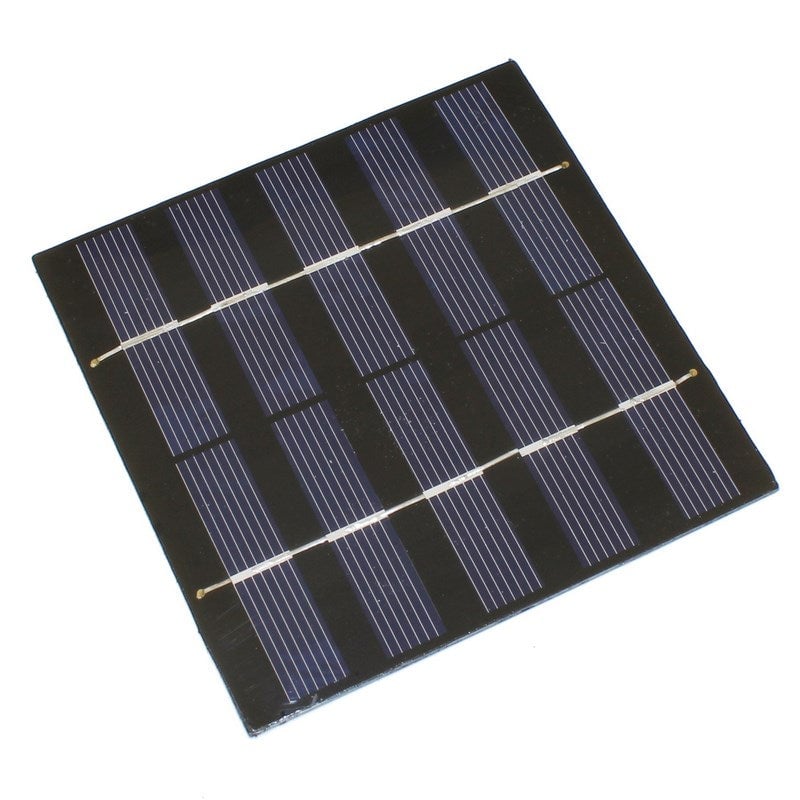

large 5v 200ma solar cell
additional 5v 200ma solar cell back

5.0V 200mA Polycrystalline Solar Cell

Stock code: 3605
Pricing:Ex VATInc VAT
1+£5.90
(excl. VAT)
£7.08
(excl. VAT)
10+£5.60
(excl. VAT)
£6.72
(excl. VAT)

In stock

Decrease product quantity. Increase product quantity.
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

SKU: 3605 Categories: , , Tag: Brand:

This is a 5V Polycrystalline Solar Cell with PET laminated finish, to ensure it has a waterproof cell face and therefore suitable for many applications.

Solar power cells make great introductions to solar power projects, suitable for things such as outside lights.

Rear mounted solder pads for easy attachment.

It provides a maximum current of 200mA, at a power of 1W, and does NOT include a blocking diode. In projects where this solar cell is used to charge batteries a blocking diode must be added to the circuit in order to prevent the batteries discharging back into the cell when it gets dark.



Features:

  • Waterproof solar cell.



Contents:

  • 1 x 5.0V 200mA, Polycrystalline Solar Cell.



Dimensions:

  • Width: 110mm.
  • Length: 110mm.
  • Height: 3mm.

Note: this product is sometimes described as a solar panel and can be miss spelt as solar pannel.

Technical Information

AttributeValue
Operating voltage 5V.
Operating current 200mA.
Typical UK Output Current 150mA in Summer (weather dependent).
Rated power 1W.
Built in blocking diode No.

Related resources

This product doesn't have any resources.

Reviews

There are no reviews yet.

Be the first to review “5.0V 200mA Polycrystalline Solar Cell”

Your email address will not be published. Required fields are marked *

Questions and answers

    Hi. Could you give me weight of the various solar panels please?
  1. 0 votes
    Q Hi. Could you give me weight of the various solar panels please?
    Asked by Anonymous on April 4, 2019 12:00 am
    Answered by the admin Hi Douglas,

    Thank you for your question, the weights are:

    Code 3603: 11g
    Code 3604: 17g
    Code 3605: 48g
    Code 3606: 37g
    Code 3607: 35g
    Code 3608: 49g
    2. Assuming the two marked solder pads on the rear of the panel are for power, are the other 4 unmarked pads able to be used for mechanical joints?
  2. 0 votes
    Q Assuming the two marked solder pads on the rear of the panel are for power, are the other 4 unmar...... Read more
    Asked by Anonymous on January 21, 2019 12:00 am
    Answered by the admin Hi Keiran,

    Thank you for your question, the two pads closest to the positive and negative pads are just the other end of the tracks from those pads. The two at the top of the board connect the two solar cells that make up this panel. There should not be any need to solder to these.

    Best Regards

    Cullen
    3. Does the panel provide AC or DC current? Many thanks
  3. 0 votes
    Q Does the panel provide AC or DC current? Many thanks
    Asked by Anonymous on January 7, 2019 12:00 am
    Answered by the admin Hi, It is DC Current.
    Many thanks
    4. Hi, Can this solar panel power one of your amplifier kits? If so which one and can it be wired straight to the PCB. Thanks Or do you have any other recommendations for an amp powered by solar for a KS4 project?
  4. 0 votes
    Q Hi, Can this solar panel power one of your amplifier kits? If so which one and can it be wired st...... Read more
    Asked by Anonymous on June 12, 2018 12:00 am
    Answered by the admin Thank you for your question.

    It would depend on the amplifier most of them use a slightly higher voltage but you could theoretically power one of our mono amplifiers from it provided you had a resistor in the way.

    Unfortunately you tend to have very varied power output form a solar panel so the better thing to do would be to build a circuit using diodes to charge batteries with the solar cell and then use this as your power source for the amplifier.

    Best Regards

    Cullen
    5. Hi,I have garden lights,1 x LED with 3 x AA. I'm suspecting a faulty solar panel as the lights are on during the day. Would this be a good replacement panel. Its exactly the size I need. Any help appreciated
  5. 0 votes
    Q Hi,I have garden lights,1 x LED with 3 x AA. I'm suspecting a faulty solar panel as the lights a...... Read more
    Asked by Anonymous on July 20, 2017 12:00 am
    Answered by the admin Hi Bob, A faulty solar panel may be the cause for the lights being on during the day. It depends on how the circuit detects how the light level has dropped. With regards to changing the solar panel to this one, it would depend on the specification of the panel that is included in the solar light you have. Without knowing more details it is difficult to give a definite answer.
    6. which diode from your products would be the best for the above models? Diolch yn fawr xx
  6. 0 votes
    Q which diode from your products would be the best for the above models? Diolch yn fawr xx
    Asked by Anonymous on January 23, 2017 12:00 am
    Answered by the admin Hello Emily, we stock four different diodes, if you just want to use one to prevent current flow back into the solar cell then the following diode should be fine, https://www.kitronik.co.uk/c2905-1n4001-diode.html
    7. How can i make a AA battery charger to power a string of fairy lights with these cells? i have 2 cells and was wondering how many batteries i could charge at once and what components i would need to make a circuit that would connect the cells to a battery charger.
  7. 0 votes
    Q How can i make a AA battery charger to power a string of fairy lights with these cells? i have 2 ...... Read more
    Asked by Anonymous on April 21, 2016 12:00 am
    Answered by the admin If you have 2 cells, and wanted to use rechargeable AA batteries then you would need to connect them in parallel, https://theelectricenergy.com/wp-content/uploads/2013/05/series-and-parallel-solar-cells-connected.jpg this link shows you a way of doing this. Connecting them in parallel will give you 5V’s and 400mA, you would then need to use a diode to stop the batteries discharging into the solar cells. You would also need to use 4x rechargeable batteries, you would need to connect the solar cells as per the link, then to the diode then to the battery cage.
    8. Do you sell a Solar Cell kit that could charge a mobile phone ?Would this cell do the job with some additional components?
  8. 0 votes
    Q Do you sell a Solar Cell kit that could charge a mobile phone ?Would this cell do the job with so...... Read more
    Asked by Anonymous on July 10, 2015 12:00 am
    Answered by the admin It’s complicated to charge a phone from solar power and very very very slow. You’d need a lot of solar cells to make it worthwhile. There are pre-built modules that do this but it takes days of sunny weather to put any real charge into the phone.
