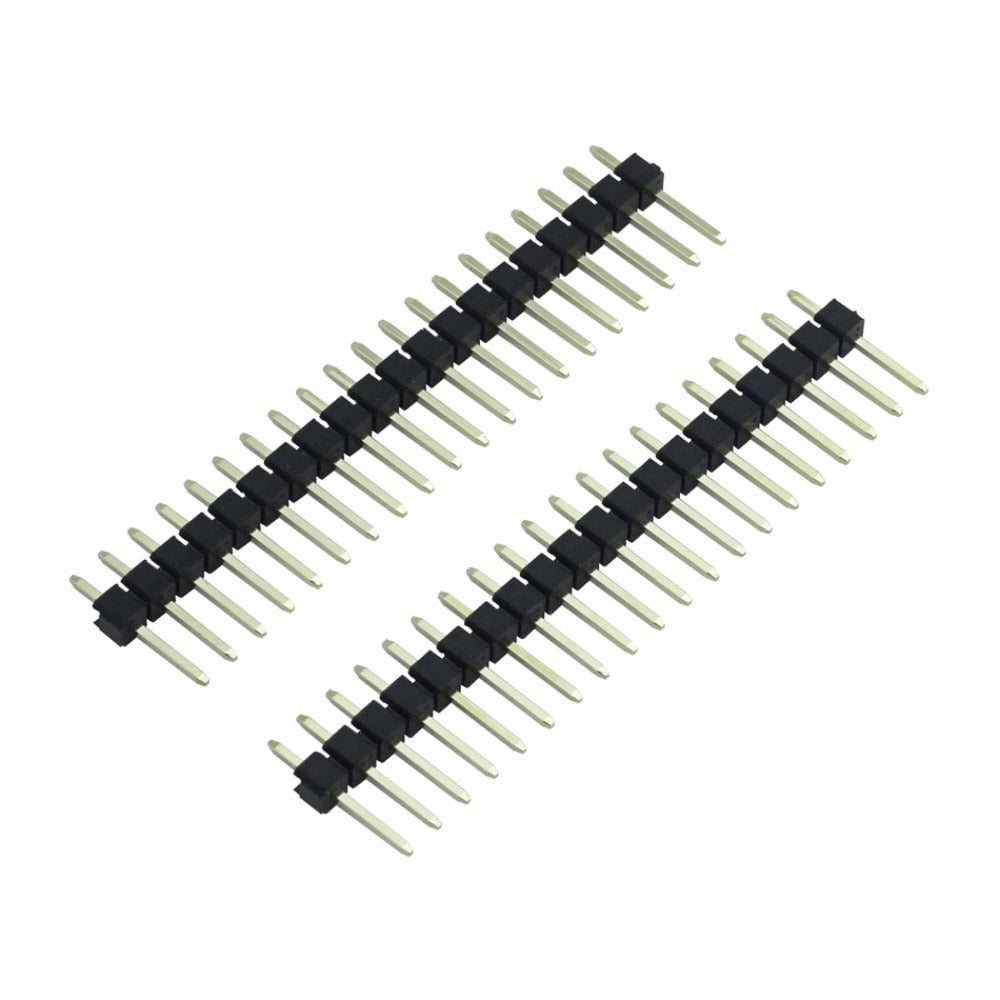

This pin header pack is specifically for use with the Raspberry Pi Pico microcontroller. It is supplied as two strips of 20 pins each that are the right length and ready to be soldered directly to the board. Just take them out of the bag and fit them.
These are the same headers that are soldered onto the Pico with pin headers assembled, which is also available via the Kitronik Discovery Kit for Raspberry Pi Pico (Pico Included).
These pin headers make connecting I/O devices or use with a prototyping breadboard simple and convenient. They also allow for use with our accessory boards, such as; the Compact Robotics Board and the Compact Motor Driver Board.
This pin header features an industry-standard header terminal connector for mating with industry-standard sockets on a 2.54mm pitch. It's reliable, rugged, low cost, and this connector is a must for any standard board-to-board mating for example Pico/Arduino.
- Pin header pack for use with the Raspberry Pi Pico.
- Compatible with our range of accessory boards for Raspberry Pi Pico.
- 2.54mm pitch single row through-hole PCB footprint.
- Supplied as two strips of 20 pins each.
- Industry-standard header/ terminal specification.
- Standard 2.50mm insulator profile.
- Standard 6.10mm contact post, 3mm solder tail.
- Contact Material: Brass. Contact Plating: Gold Flash Plated.
- Rated Current: 3A.
- Insulation Resistance: 5000 MΩ Max.
- Operating Temperature: -40°C to +105°C.
- RoHS compliant.
- 1 x Pin Header Pack (2 x 20) (male) for the Raspberry Pi Pico Board.
