Pimoroni - pinbetween

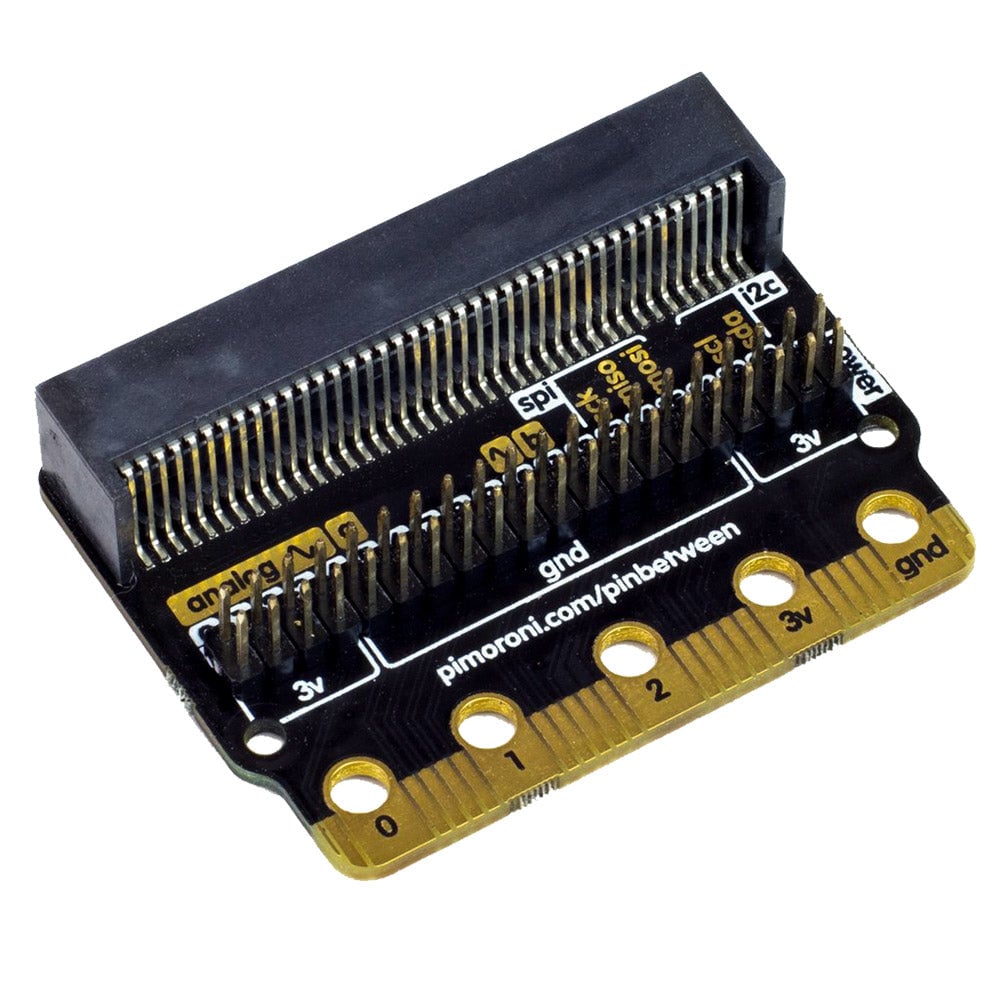

The 40-pin male header on Pinbetween lets you to connect extra bits to your micro:bit while using an edge-connector add-on such as our motor driver board for micro:bit.

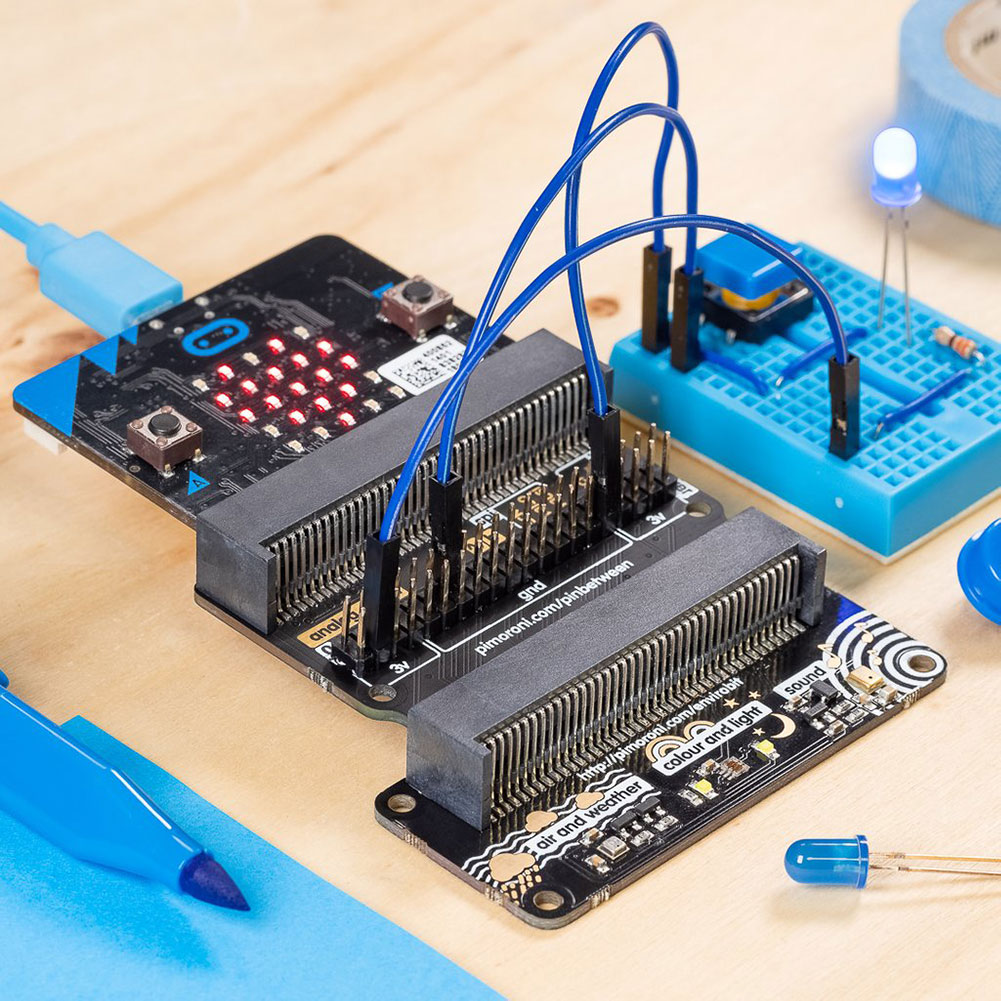

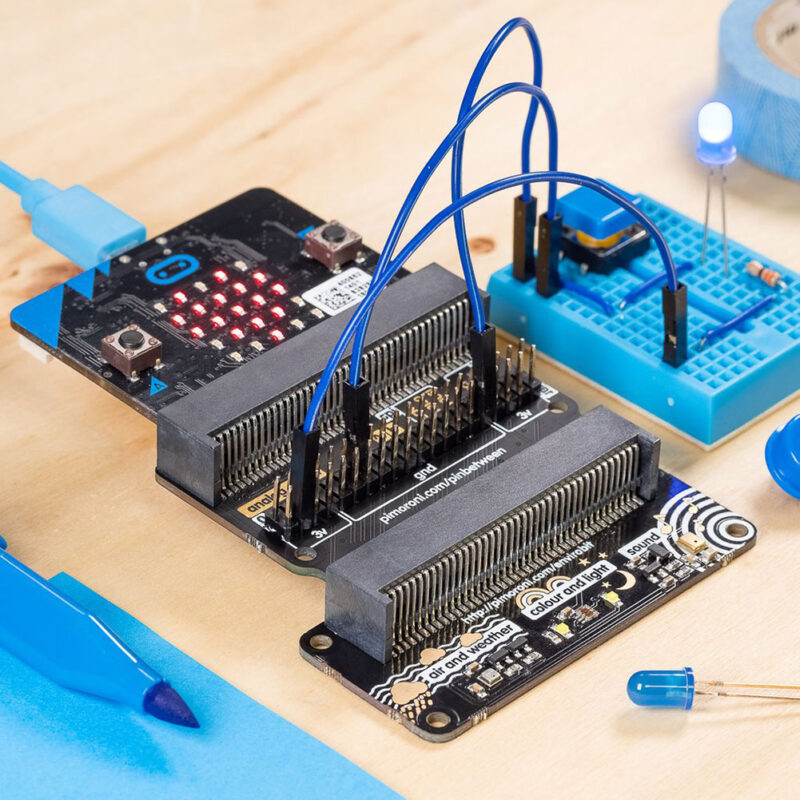

Plug your microbit into the edge-connector at the top, attach your micro:bit add-on at the bottom, and then use the handily grouped and labelled pins in-between for whatever you wish!

Note:

micro:bit, enviro:bit, breadboard, etc. pictured are not included!
Kitronik have produced a number of boards that BBC micro:bit can be plugged into and that can be used with Pinbetween. A selection of which are listed below;

• Kitronik Klip Motor Driver.
• Motor Driver for micro:bit.
• 16 Servo Driver Board for the BBC micro:bit.
• Klimate Board for the BBC micro:bit.

Features:

• Comes fully-assembled and ready to use.

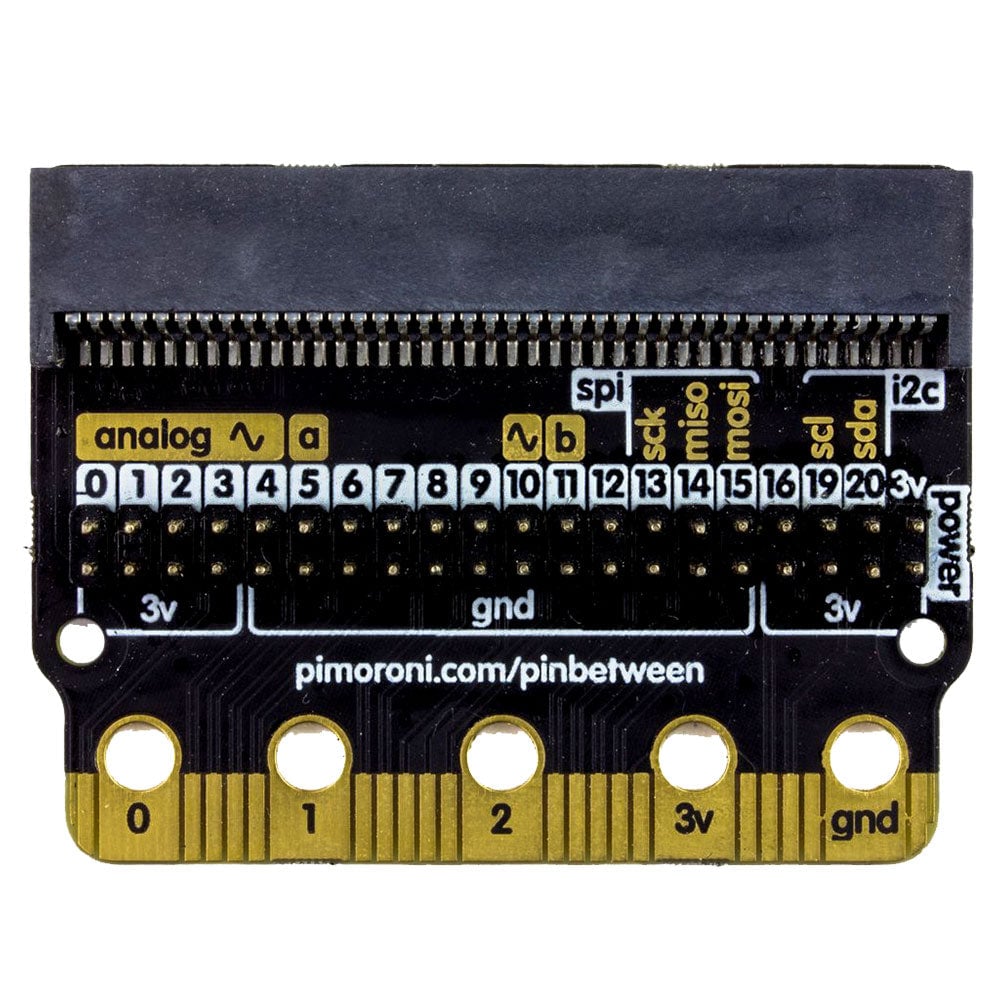

• Grouped and labelled pins.
• Plenty of power pins (9x 3V, 12x ground).
• Male edge connector for micro:bit add-ons.
• Compatible with micro:bit.
• No soldering required!
• Dimensions: 56mm x 41.5mm x 12mm.

Contents:

• 1 x Pimoroni Pinbetween for micro:bit.

Dimensions:

• Length: 56mm.
• Width: 41.5mm.
• Height: 12mm.

Requires:

• A micro:bit.
• USB Cable.
• Jumper cables.
